WMG
1. Certified under ISO 9001, 14001, and 45001 systems, and compliant with international IEC standards.
2. Approved by national-level, authoritative communication organizations for earthquake resistance, load-bearing capacity, and CCC certification and testing, these products have been exported to 113 countries and regions.
3. Obtained all necessary national mandatory and non-mandatory approval procedures, production qualification licenses, and certifications.
Product Details
Features
- Standard 19-inch design, split-frame structure, available in fully assembled or flat packed

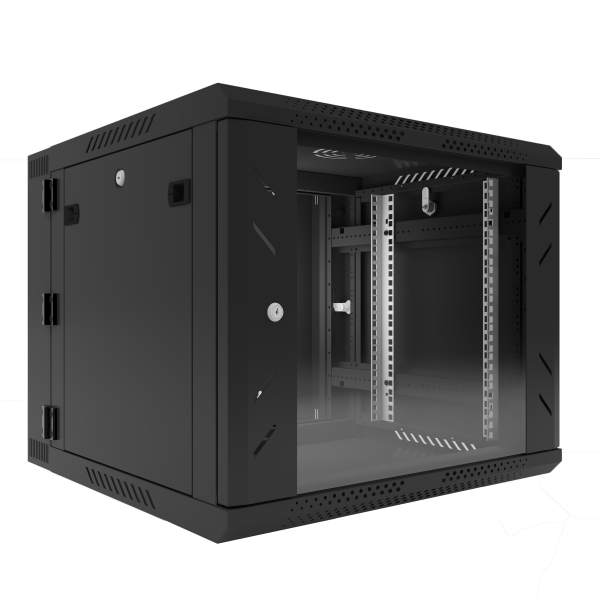

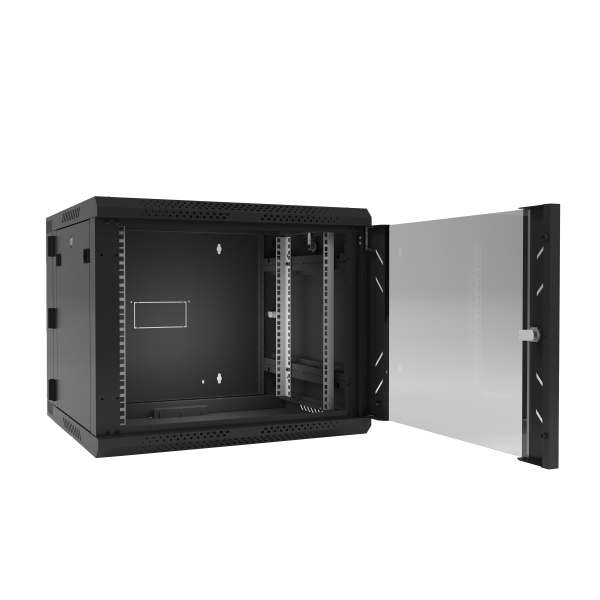

options. - The front door opening angle is ≥ 180°, the front frame opening angle is ≥ 90°, optional tempered glass door with fixing blocks: tempered glass can be easily replaced if broken.

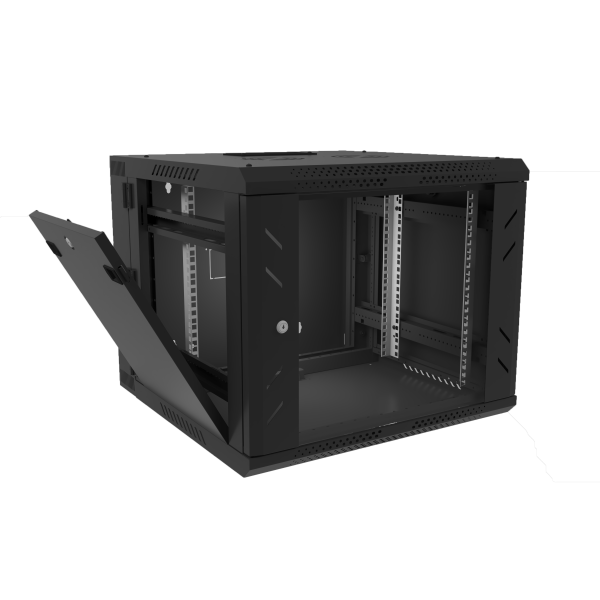

- Quick-open side door with additional cable routing channel design.

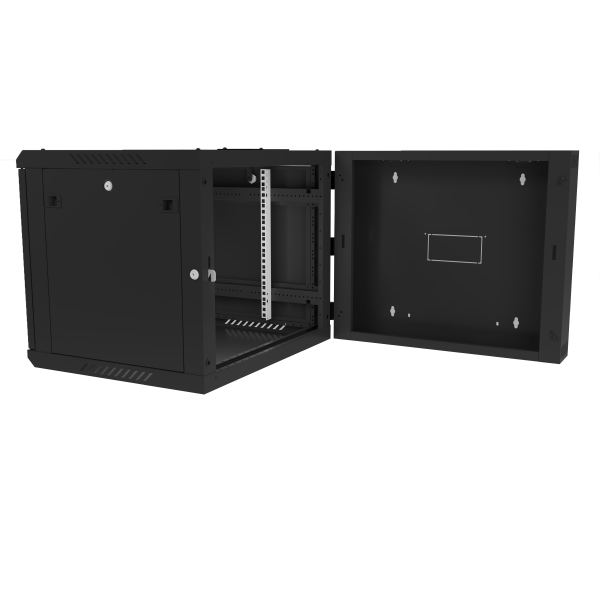

- Wall-mounted structure design, with the option of wall panel mounting.
- Optional accessories: fans, power supplies, trays, brackets, etc.
Primary Materials
- 19-inch Rail: Aluzinc or electrophoretic coated; other components: SPCC premium cold-rolled steel sheet
- Thickness: 19-inch rail 1.5mm, 0.8mm for the rest parts
- Surface Treatment: Degreasing, ceramization, pure water washing, electrophoresis, or electrostatic spraying.
- Protection Class: IP20
- Load Capacity: Static Load 60KG
|

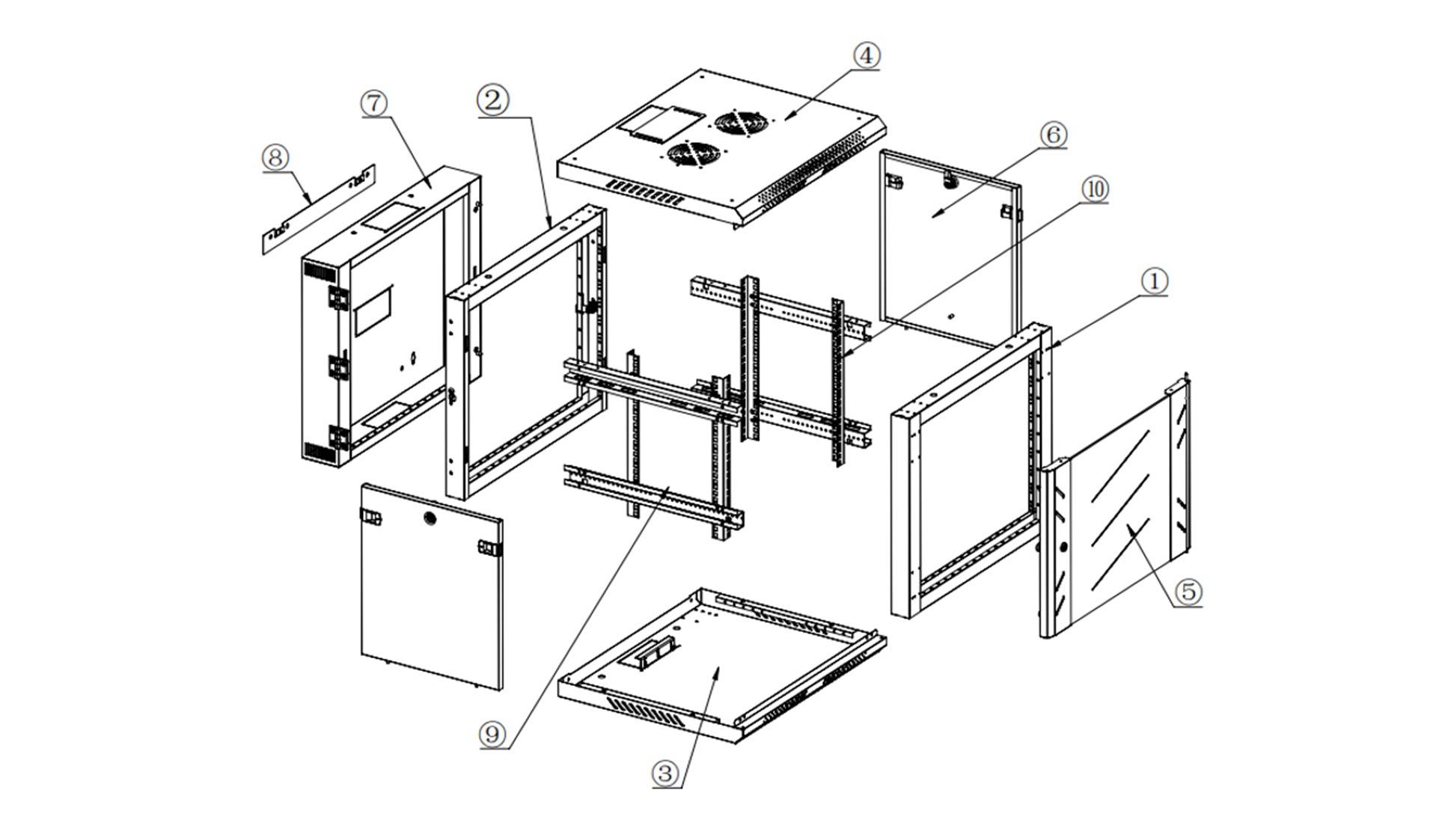

No. |
Description |
Quantity |
Unit |
Material |
Surface Treatment |
Remarks |
|
1 |
Front Frame |
1 |
pcs |
SPCC Cold-rolled Steel Sheet |
electrostatic spraying |
一 一 一 |
|
2 |
Rear Frame |
1 |
set |
SPCC Cold-rolled Steel Sheet |
electrostatic spraying |
一 一 一 |
|
3 |
Bottom Cover |
1 |
pcs |
SPCC Cold-rolled Steel Sheet |
electrostatic spraying |
一 一 一 |
|
4 |
Top Cover |
1 |
pcs |
SPCC Cold-rolled Steel Sheet |
electrostatic spraying |
一 一 一 |
|
5 |
Front Door |
1 |
pcs |
SPCC Cold-rolled Steel Sheet |
electrostatic spraying |
一 一 一 |
|
6 |
Side Door |
2 |
pcs |
SPCC Cold-rolled Steel Sheet |
electrostatic spraying |
一 一 一 |
|
7 |
Extended Rear Frame |
1 |
pcs |
SPCC Cold-rolled Steel Sheet |
electrostatic spraying |
一 一 一 |
|
8 |
Mounting Plate |
1 |
pcs |
SPCC Cold-rolled Steel Sheet |
electrostatic spraying |
一 一 一 |
|
9 |
Crossbeam |
4 |
pcs |
SPCC Cold-rolled Steel Sheet |
electrostatic spraying |
一 一 一 |
|
10 |
19-inch Rail |
4 |
pcs |
Aluzinc |
Aluzinc |
一 一 一 |
|
11 |
Front Door Structure |
Options: Tempered glass door with cold-rolled steel frame, glued glass door, perforated mesh door, solid steel door |
一 一 一 |
|||
|
12 |
Structure |
Front-rear split structure |
一 一 一 |
|||
|
13 |
Packaging Method |
Single unit in bulk，complete assembly |
一 一 一 |
|||
|

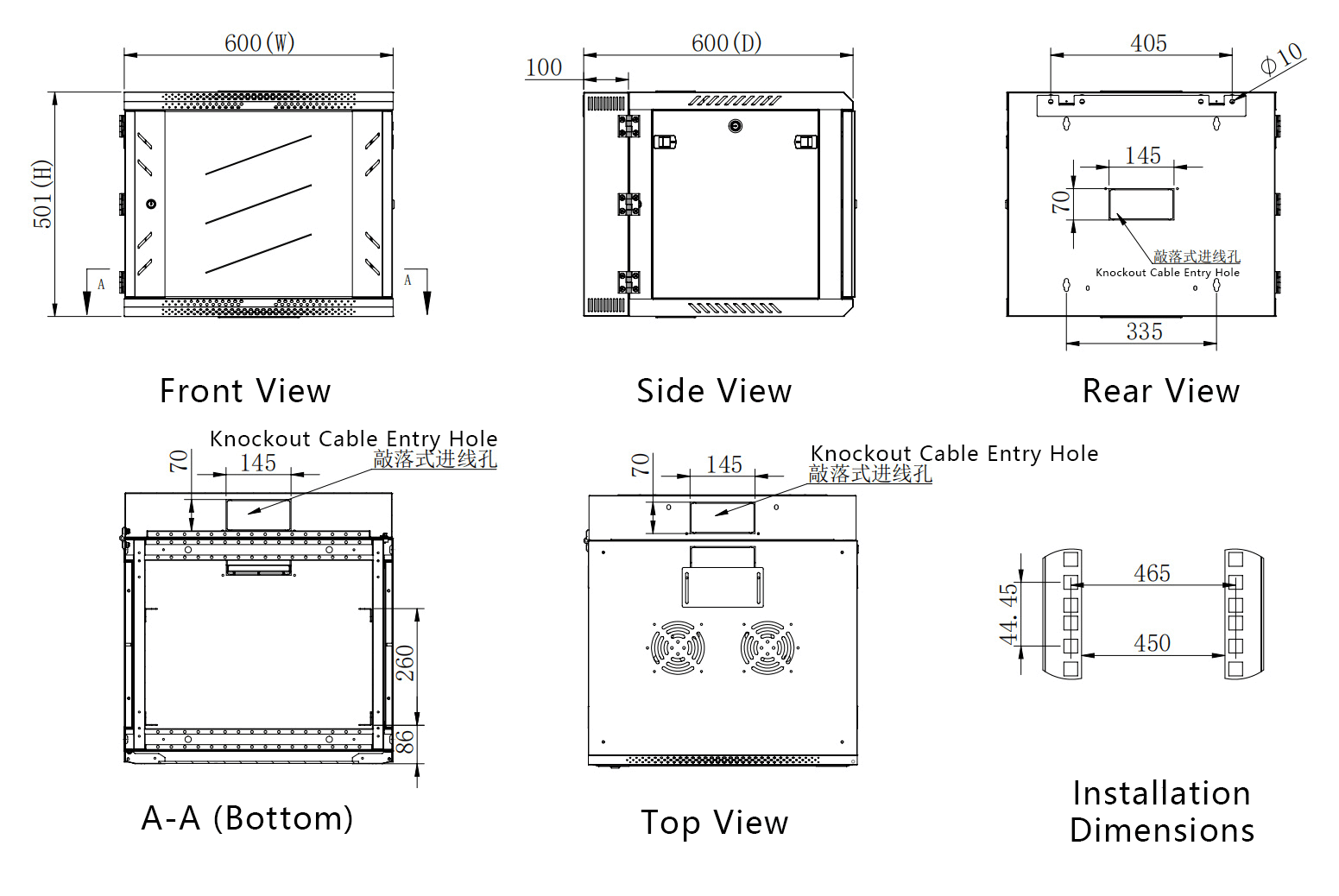

Order Code |
Capacity U |
Height (H) mm |
Width (W) mm |
Depth (D) mm |
Fully-assembled Volume (m) |
Flat-packed Volume (m³) |
Weight (kg) |
|
WMG■- 6504■□ |
4 |
280 |
600 |
550 |
0.099 |
|
|
|
WMG■- 6604■□ |
4 |
280 |
600 |
0.108 |
|
|
|
|
WMG■- 6506■□ |
6 |
368 |
550 |
0.129 |
|
|
|
|
WMG■- 6606■□ |
6 |
368 |
600 |
0.141 |
|
|
|
|
WMG■- 6509■□ |
9 |
501 |
550 |
0.175 |
|
|
|
|
WMG■- 6609■□ |
9 |
501 |
600 |
0.190 |
|
|
|
|
WMG■- 6512■□ |
12 |
635 |
550 |
0.220 |
|
|
|
|
WMG■- 6612■□ |
12 |
635 |
600 |
0.240 |
|
|
|
|
WMG■- 6515■□ |
15 |
769 |
550 |
0.266 |
|
|
|
|
WMG■- 6615■□ |
15 |
769 |
600 |
0.290 |
|
|
|
|
WMG■- 6518■□ |
18 |
901 |
550 |
0.311 |
|
|
|
|
WMG■- 6618■□ |
18 |
901 |
600 |
0.339 |
|
|
|
|
WMG■- 6522■□ |
22 |
1082 |
550 |
0.373 |
|
|
|
|
WMG■- 6622■□ |
22 |
1082 |
600 |
0.406 |
|
|
|
|
WMG■- 6527■□ |
27 |
1304 |
550 |
0.449 |
|
|
|
|
WMG■- 6627■□ |
27 |
1304 |
600 |
0.489 |
|
|
|
|
WMG |
WMG |
WMG |
WMG |
Color |
Color |
|
|
|
Glued Door |
Framed Door |
Mesh Door |
Steel Door |
RAL9004 |
RAL7035 |
Optional Accessories: fan set, shelf, bracket, power supply, ground wire, etc. |
|
|
■ |
■ |
■ |
■ |
■ |
□ |
||
