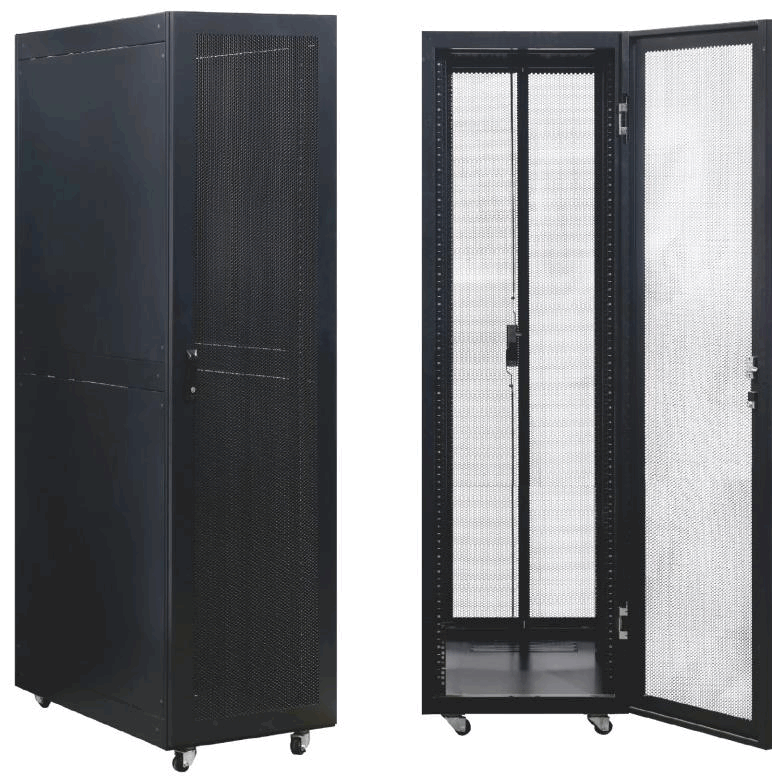

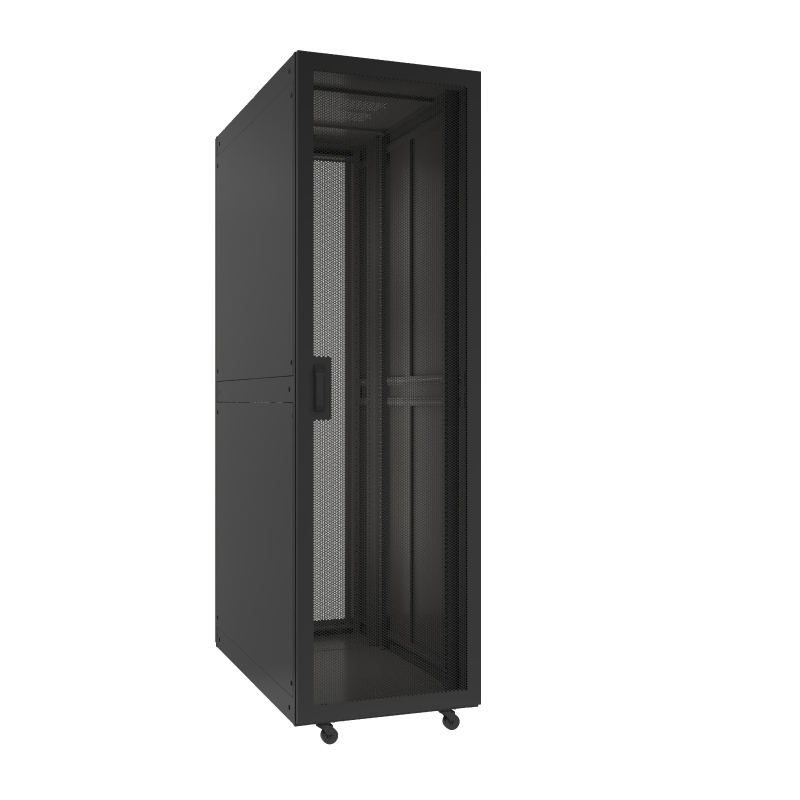

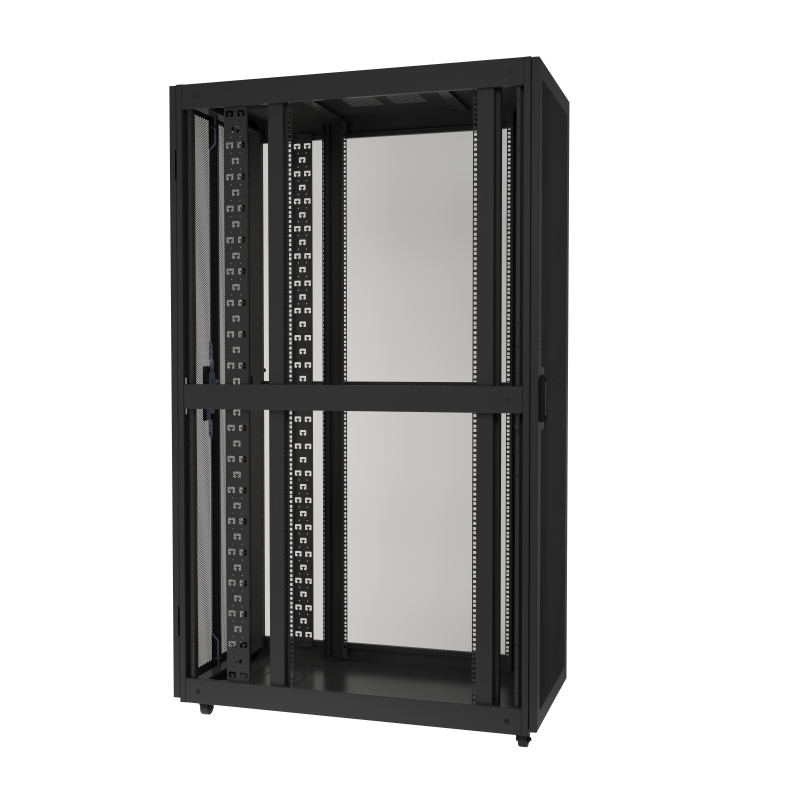

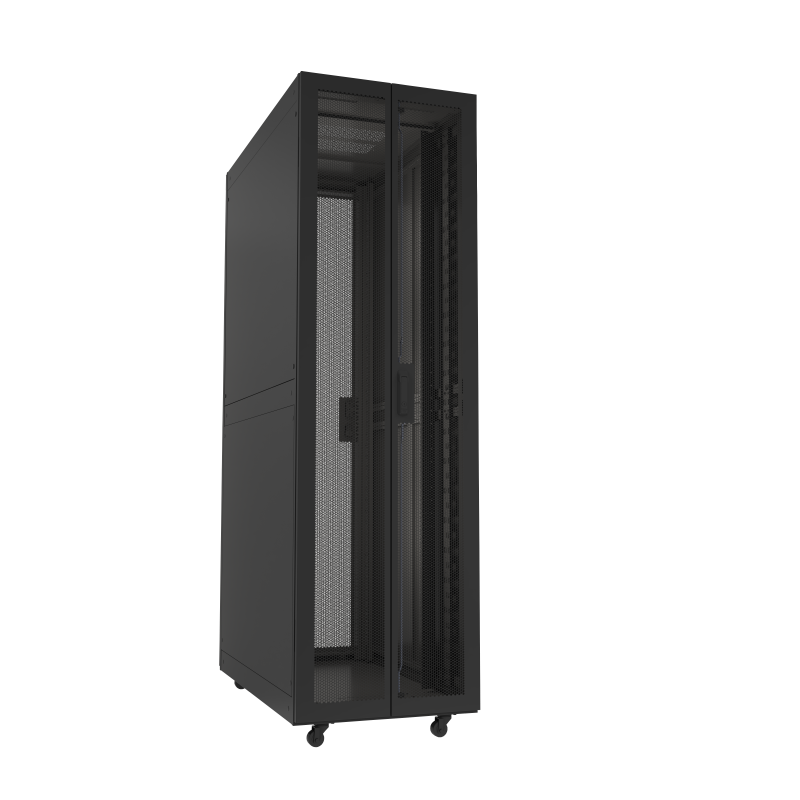

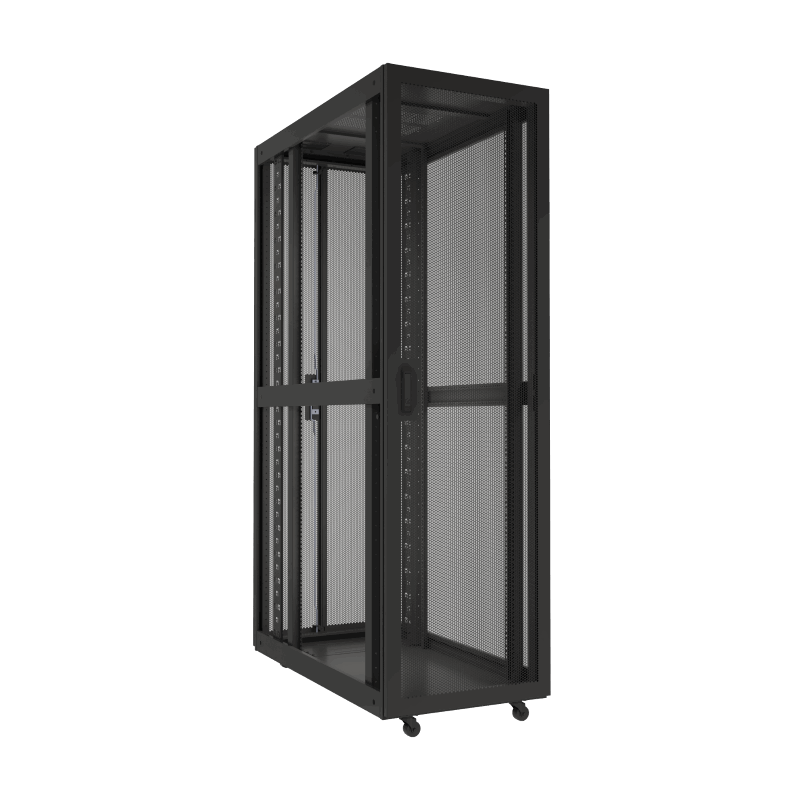

ZP Rack Dedicated for Hot and Cold Aisle
1.Certified under ISO 9001, ISO 14001, and ISO 45001 management systems; compliant with IEC standards.
2.Has passed anti-seismic, load-bearing, and CCC certification tests as well as experiments conducted by national authoritative communication institutions; it has been exported to 113 countries and regions.
3.Has obtained all mandatory and non-mandatory approval procedures, production qualification licenses, certifications, and other relevant documents issued by the state.
Product Details
Features
- Standard 19-inch design; available in fully assembled or flat packaging. Serves as a base rack for hot/cold aisles, suitable for hot/cold aisle deployment;
- Single front mesh door & double rear mesh doors, equipped with three-point locking system; door locks styles are optional;
- Multiple cable routing channels at the top and bottom; side panels are removable; casters or plinths are optional;
- Fan sets can be installed on the top; cable management panels and PDU brackets are included at the rear;
- Optional accessories: power distribution unit, trays, racks, blanking panels, earthing copper bars, etc.
Primary Materials
- 19- inch Rail: aluminum-zinc coated sheet or electrophoretic coating; other components: high-quality SPCC cold-rolled steel sheet;
- Thickness: 2.0mm-1.5mm-1.2mm
Surface Treatment
- Degreasing, ceramization, pure water washing, electrophoresis, or electrostatic spraying;
- Protection class: IP20;
- Load capacity: Static load 1000KG
|
Order Code |
Capacity |
Dimensions |
Fully-assembled Volume |
Weight |
|
ZP■6642■■ |
42 |
600x600 |
|
|
|
ZP■ 6842■■ |
42 |
600x800 |
|
|
|
ZP■6042■■ |
42 |
600x1000 |
|
|
|
ZP■6142■■ |
42 |
600x1100 |
|
|
|
ZP■6242■■ |
42 |
600x1200 |
|
|
|
ZP■8642■■ |
42 |
800x600 |
|
|
|
ZP■ 8842■■ |
42 |
800x800 |
|
|
|
ZP■ 8042■■ |
42 |
800x1000 |
|
|
|
ZP■8142■■ |
42 |
800x1100 |
|
|
|
ZP■8242■■ |
42 |
800x1200 |
|
|
|
ZPP |
ZPG |
Color |
Color |
Optional accessories: fan assembly, shelf, bracket,power distribution unit, grounding wire, keyboard, blank panel, grounding busbar, etc. |
|
Flat Mesh Door |
Angled Mesh Door |
RAL9004 |
RAL7035 |
|
|
■ |
■ |
■ |
■■ |
