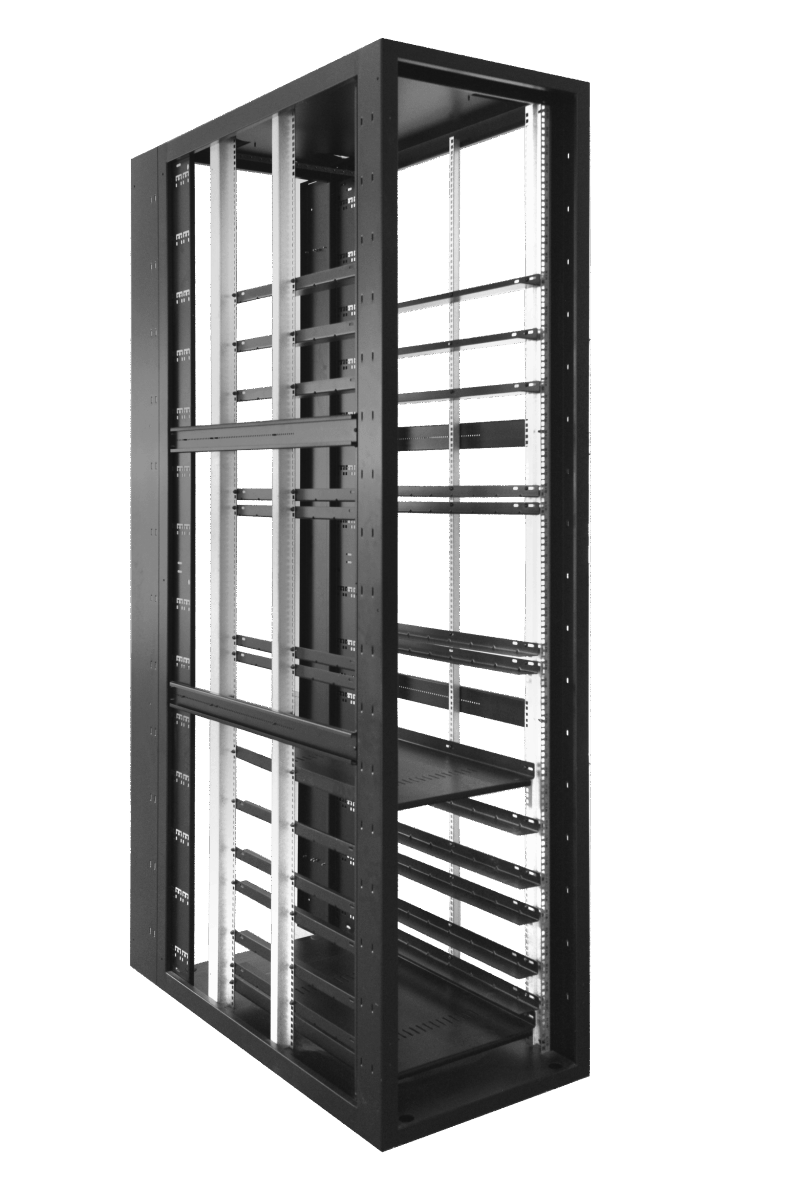

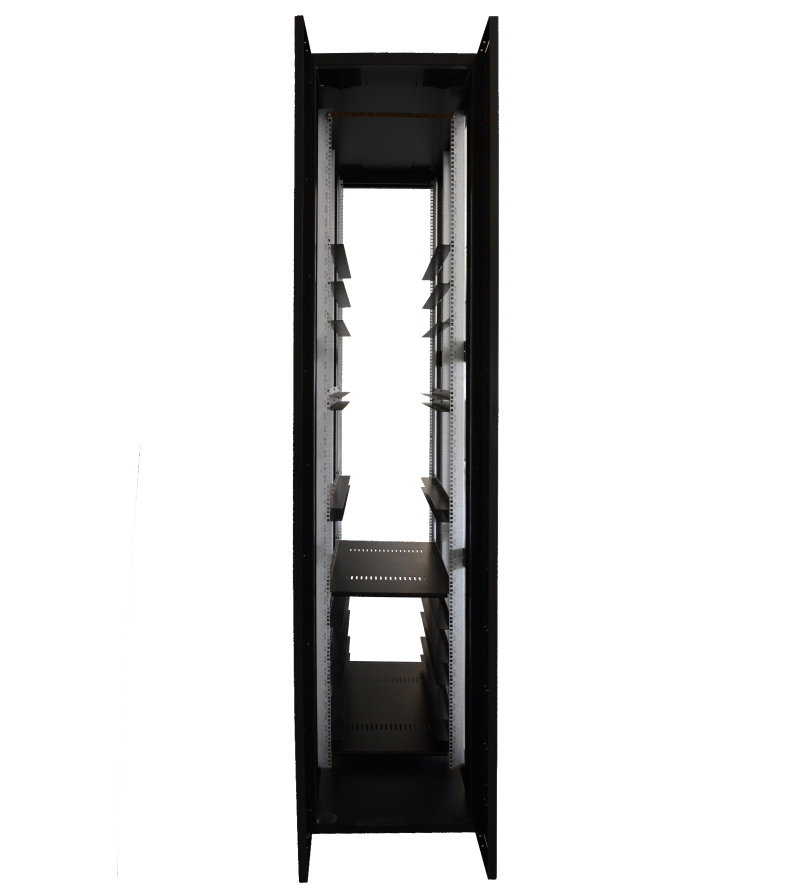

ZR Rack Dedicated for Hot and Cold Aisle
1.Certified under ISO 9001, ISO 14001, and ISO 45001 management systems; compliant with IEC standards.
2.Has passed anti-seismic, load-bearing, and CCC certification tests as well as experiments conducted by national authoritative communication institutions; it has been exported to 113 countries and regions.
3.Has obtained all mandatory and non-mandatory approval procedures, production qualification licenses, certifications, and other relevant documents issued by the state.
Product Details
Features
- Standard 19-inch design with fully assembled welded structure; serves as a base rack for hot/cold aisles, suitable for hot/cold aisle deployment;
- Front and rear doors can be optionally installed; side panels are removable;
- Multiple cable routing channels at the top and bottom (equipped with cable entry brushes); casters or plinths are optional;
- Cable management structure designed at the front; cable management panels and PDU brackets are included at the rear;
- Optional accessories: Power distribution unit, trays, racks, blanking panels, earthing copper bars, etc.
Primary materials
- 19-inch Rail: aluminum-zinc coated sheet or electrophoretic coating; other components: high-quality SPCC cold-rolled steel sheet;
- Thickness: 2.0mm-1.5mm-1.2mm
Surface treatment
- Degreasing, ceramization, pure water washing, electrophoresis, or electrostatic spraying;
- Protection class: IP20;
- Load capacity: Static load 2000KG
|
Order Code |
Capacity |
Dimensions |
Fully-assembled Volume |
Weight |
|
ZR6047■■ |
47 |
600x1000 |
|
|
|
ZR6147■■ |
47 |
600x1100 |
|
|
|
ZR6247■■ |
47 |
600x1200 |
|
|
|
ZR6447■■ |
47 |
600x1400 |
|
|
|
ZR6054■■ |
54 |
600x1000 |
|
|
|
ZR6154■■ |
54 |
600x1100 |
|
|
|
ZR6254■■ |
54 |
600x1200 |
|
|
|
ZR6454■■ |
54 |
600x1400 |
|
|
|
ZR6060■■ |
60 |
600x1000 |
|
|
|
ZR6160■■ |
60 |
600x1100 |
|
|
|
ZR6260■■ |
60 |
600x1200 |
|
|
|
ZR6460■■ |
60 |
600x1400 |
|
|
|
|
Optional accessories: front/rear doors, shelf, brackets, power distribution unit, power board, keyboard, blank panels, grounding busbars, etc. |
|||
|
Color |
Color |
|||
|
RAL9004 |
RAL7035 |
|||
|
■■ |
■■ |
|||
