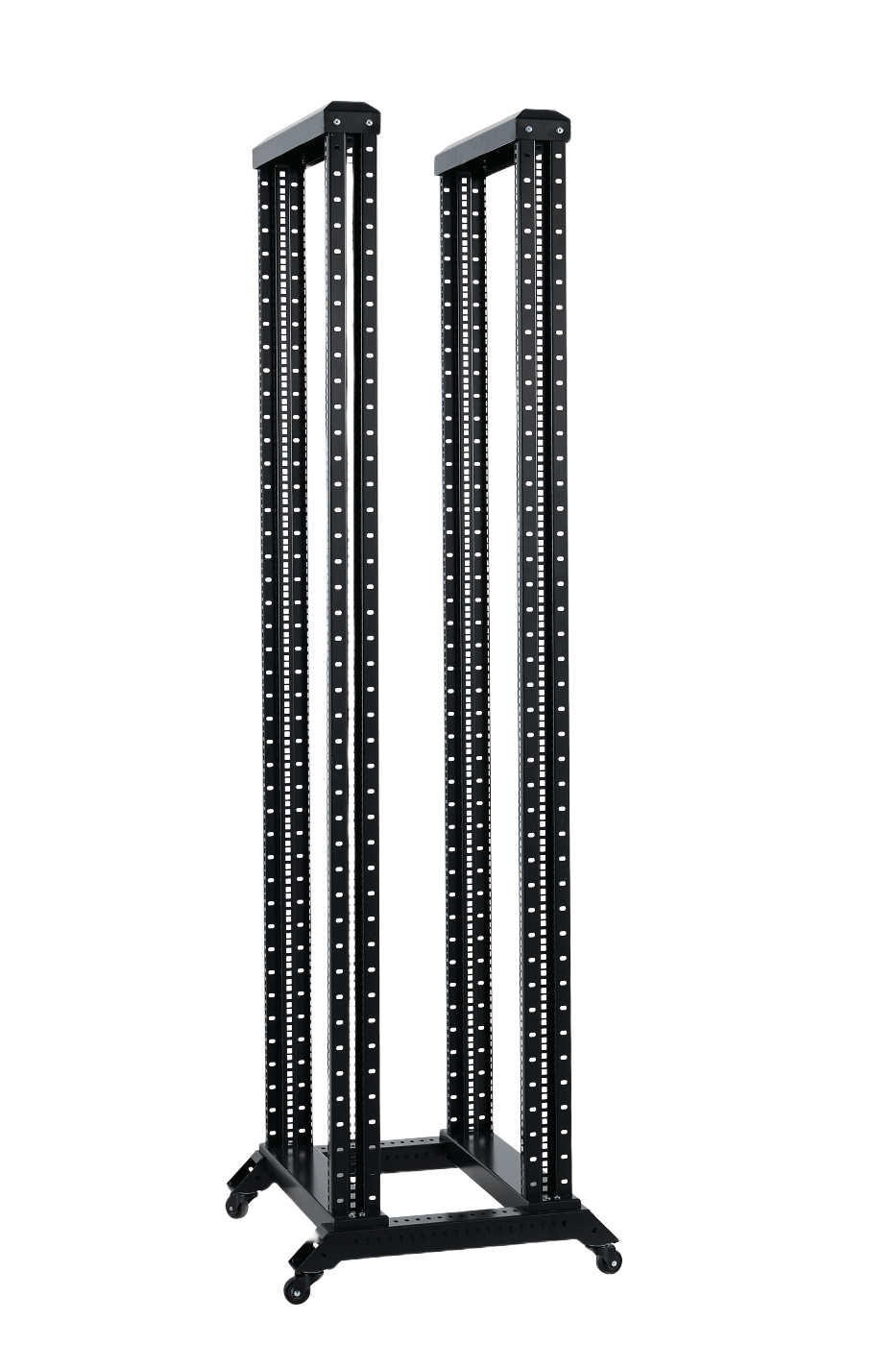

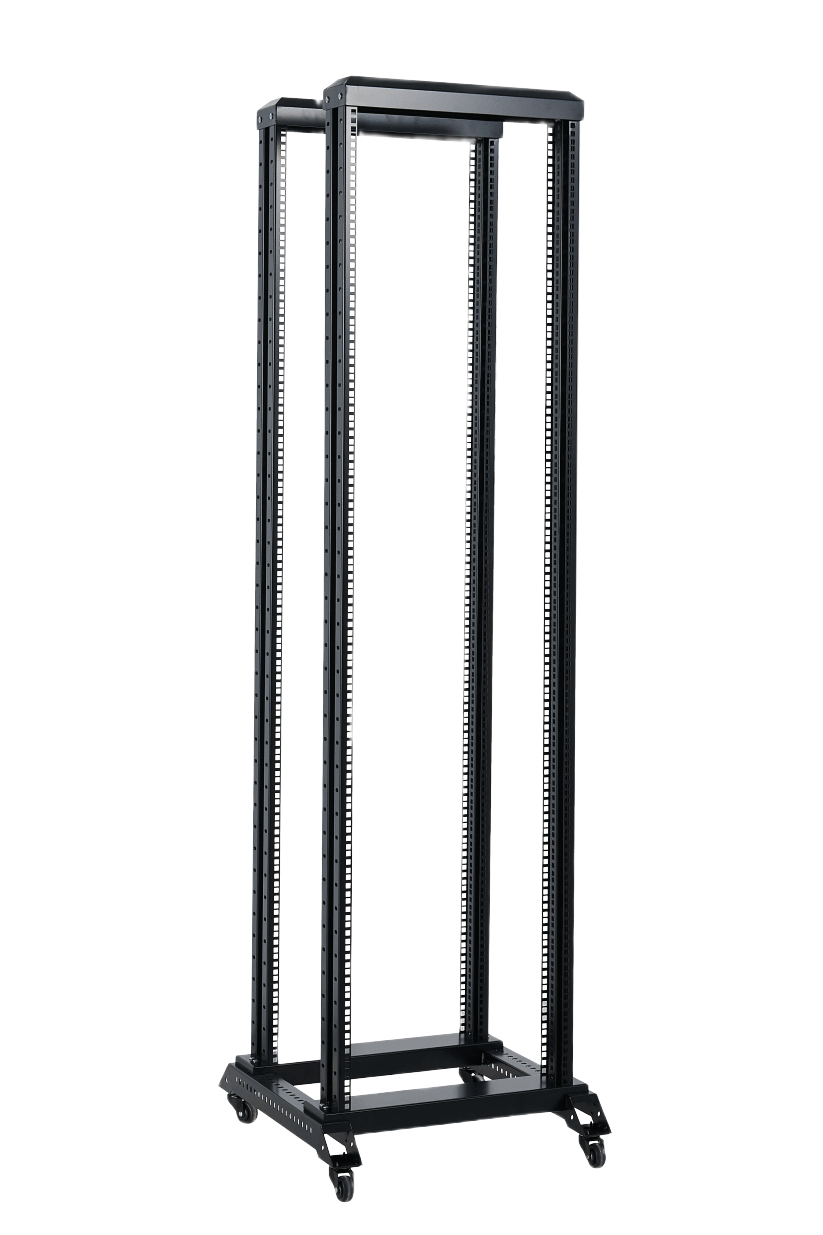

B4 - Rack
1.Certified under ISO 9001, ISO 14001, and ISO 45001 management systems; compliant with IEC standards.
2.Has passed anti-seismic, load-bearing, and CCC certification tests as well as experiments conducted by national authoritative communication institutions; it has been exported to 113 countries and regions.
3.Has obtained all mandatory and non-mandatory approval procedures, production qualification licenses, certifications, and other relevant documents issued by the state.
Product Details
Features
- Standard 19-inch design; available in fully assembled or flat packaging for delivery;
- Cable trays can be optionally installed at the front and rear; cable trays are available in steel or plastic options;
- Cable entry method: Flexible entry via top, bottom, left, right, front, or rear;

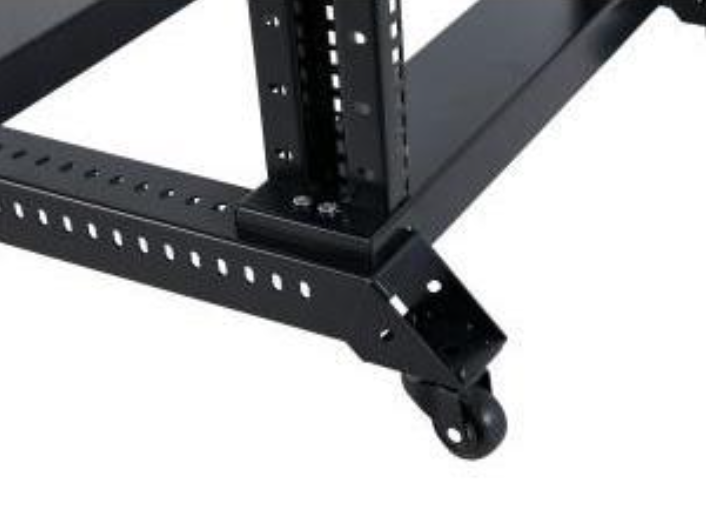

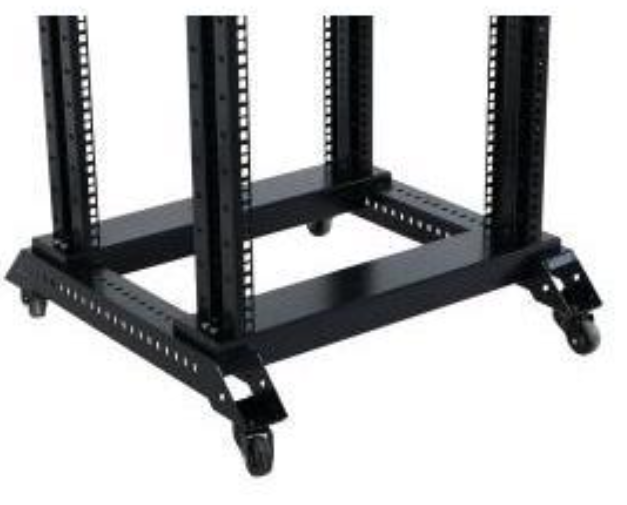

- Includes casters and adjustable feet; casters/feet can be removed during installation; using expansion screws to fix to the floor ensures greater stability;
- Optional accessories: Power distribution unit, trays, racks, blanking panels, earthing copper bars, etc.
Primary Materials
- 19-inch Rail: Aluminum-zinc coated sheet or electrophoretic coating; other components: High-quality SPCC cold-rolled steel sheet;
- Thickness: 2.0mm-1.5mm-1.2mm
Surface Treatment
- Degreasing, ceramization, pure water washing, electrophoresis, or electrostatic spraying;
- Protection class: IP20;
- Load capacity: Static load 100KG
|
Order Code |
Capacity |
Dimensions |
Fully-assembled Volume |
Weight |
|
B46618■■ |
18 |
600x600x1000 |
|
|
|
B46622■■ |
24 |
600x600x1200 |
|
|
|
B46627■■ |
27 |
600x600x1400 |
|
|
|
B46632■■ |
32 |
600x600x1600 |
|
|
|
B46642■■ |
42 |
600x600x1800 |
|
|
|
B46647■■ |
47 |
600x600x2000 |
|
|
|
|
Optional accessories: cable management panel, shelf, bracket, keyboard, blanking panel, grounding busbar, PDU, etc. |
|||
|
Color |
Color |
|||
|
RAL9004 |
RAL7035 |
|||
|
■■ |
■■ |
|||
