Features

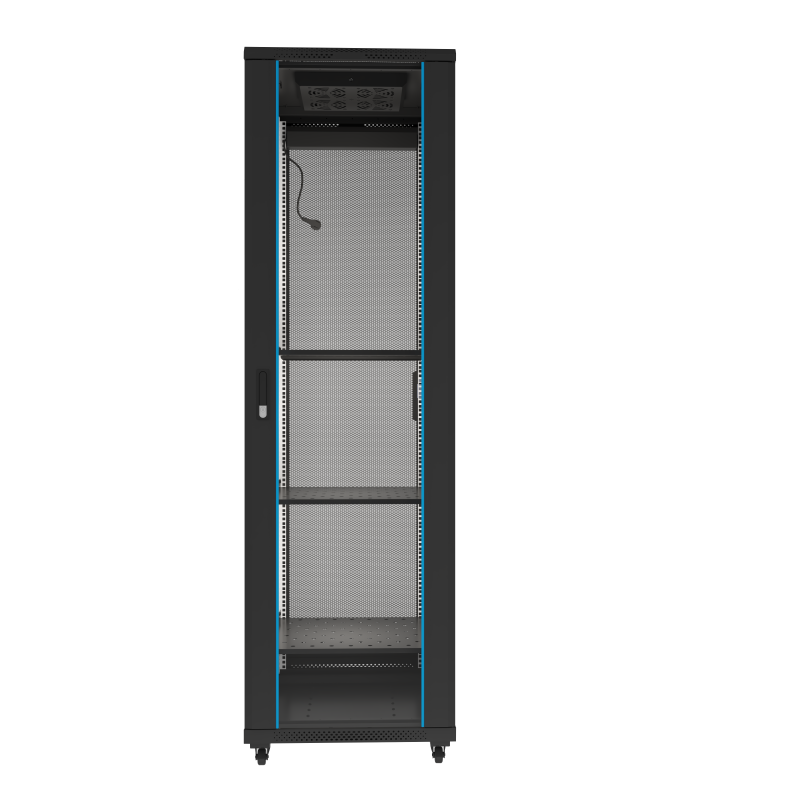

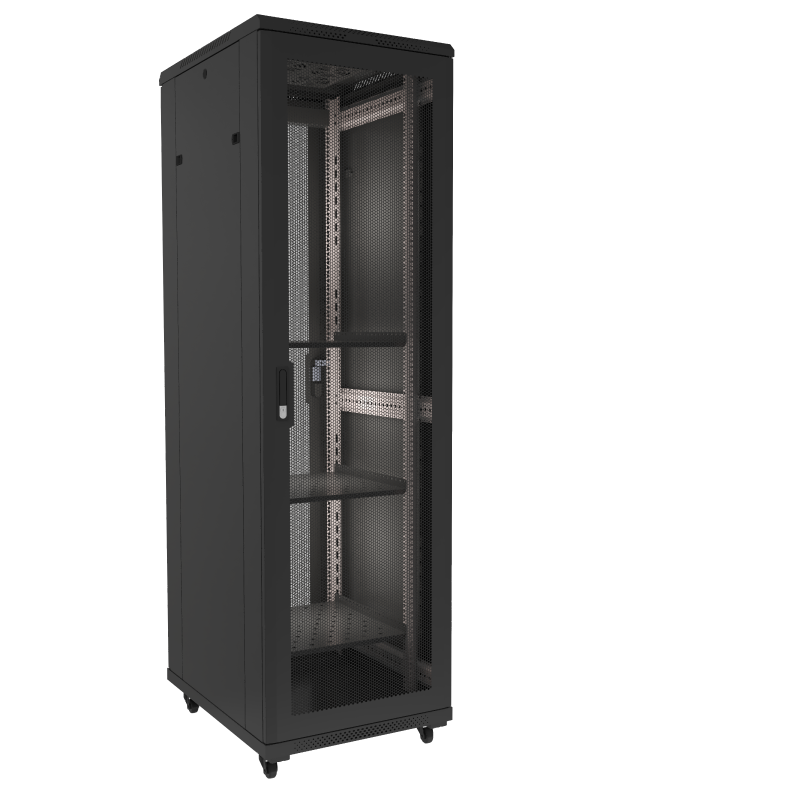

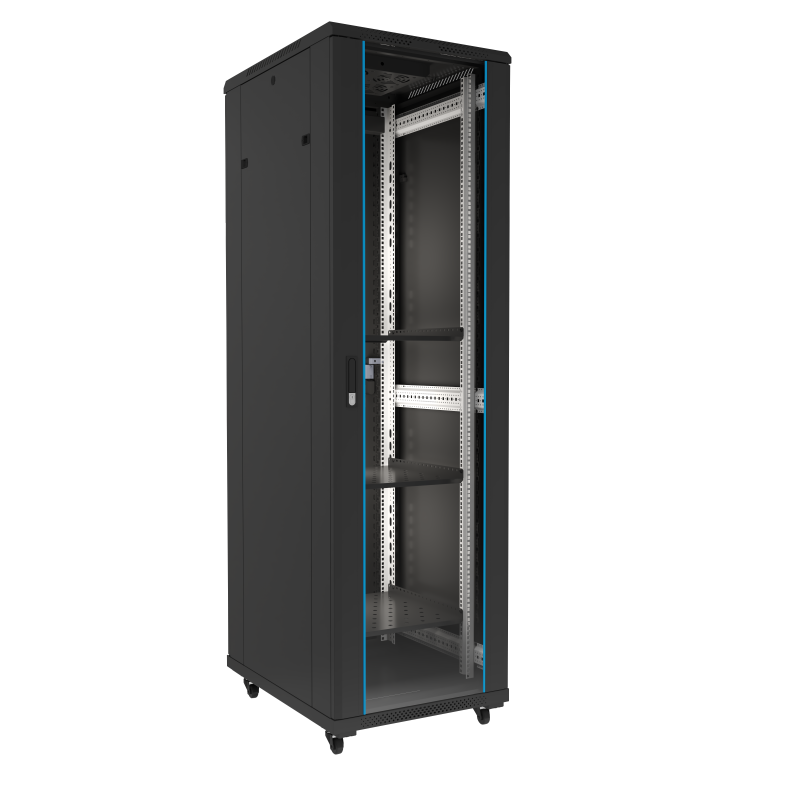

Standard 19-inch design; available in fully assembled or flating packaging for delivery;

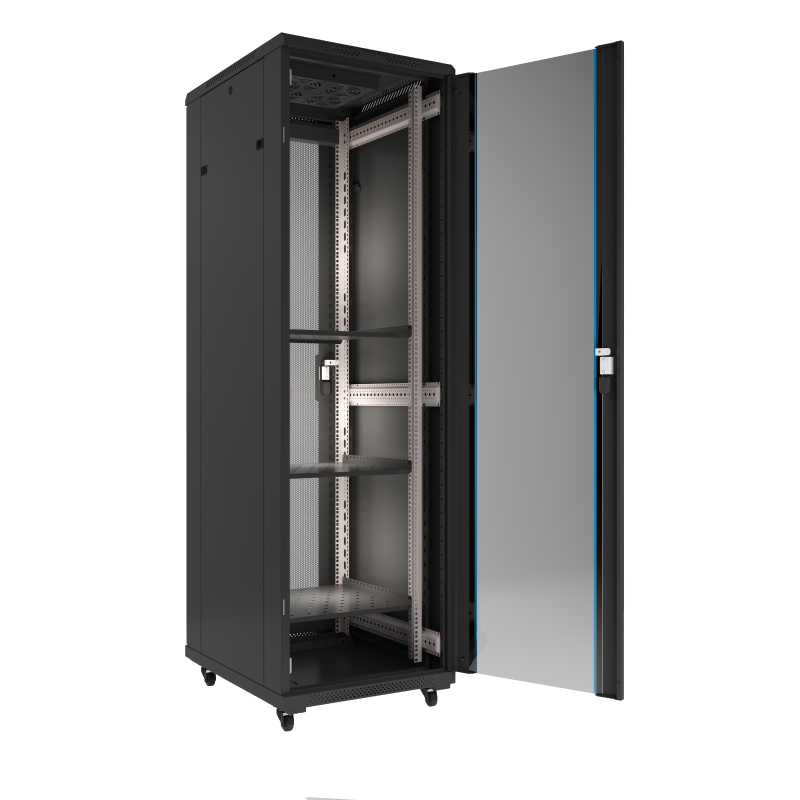

Front and rear doors open to an angle of ≥180°; multiple styles of front/rear doors are optional;

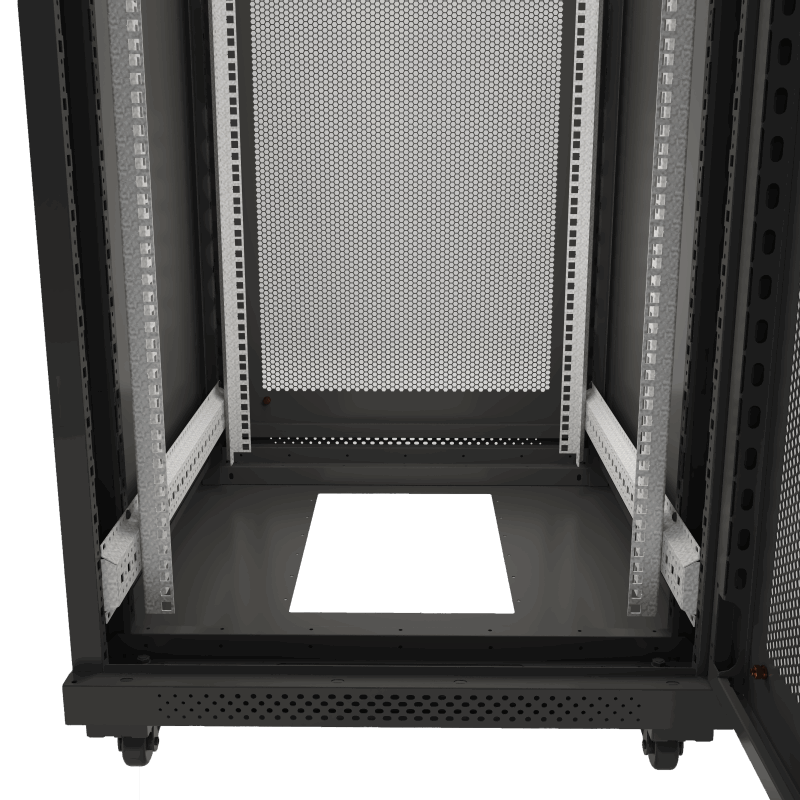

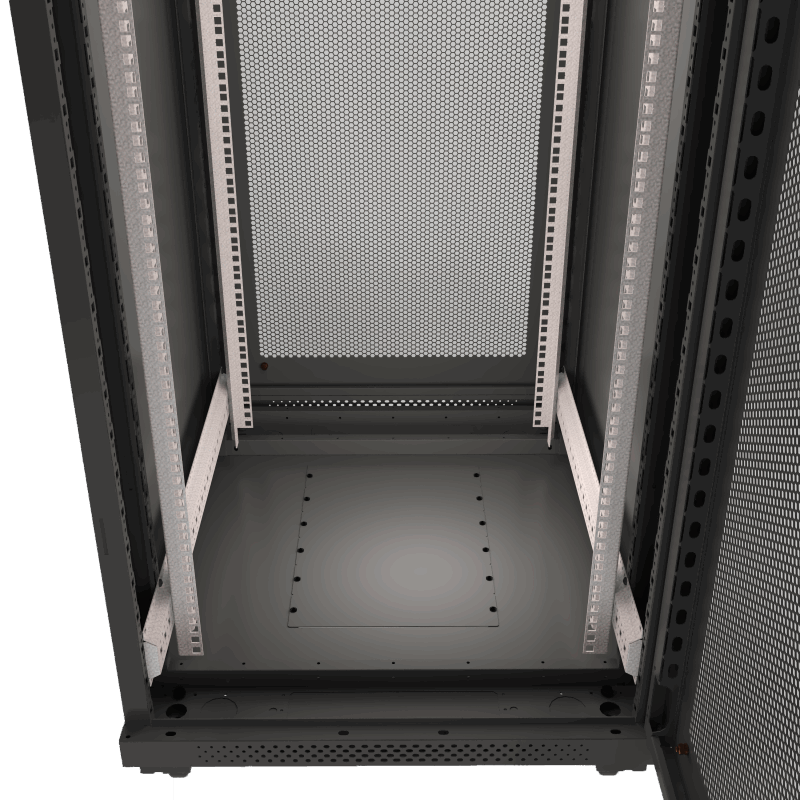

Multiple cable routing channels at the top and bottom; side doors feature a quick-opening design; for floor-mounted installation, options like adjustable feet, casters, or plinths are available;
Equipped with 2/4/6 fan sets on the top; Power distribution unit is optional;
Optional accessories: fans, power dirstibution unit, trays, racks, etc.

Primary Materials

19-inch Rail: Aluminum-zinc coated sheet or electrophoretic coating; other components: High-quality SPCC cold-rolled steel sheet;
Thickness: 1.5mm-1.2mm-0.8mm

Degreasing, ceramization, pure water washing, electrophoresis, or electrostatic spraying;
Protection class: IP20;
Load capacity: Static load 300KG

Order Code	Capacity	Width	Depth	Height	Flat-packed Volume	Fully-assembled Volume	Weight
F3■6618■■	18	600	600	987	0.220	0.356
F3■6818■■	18	600	800	987	0.243	0.474
F3■6018■■	18	600	1000	987	0.266	0.593
F3■6622■■	22	600	600	1164	0.256	0.420
F3■6822■■	22	600	800	1164	0.280	0.560
F3■6022■■	22	600	1000	1164	0.305	0.700
F3■6627■■	27	600	600	1387	0.299	0.500
F3■6827■■	27	600	800	1387	0.325	0.666
F3■6027■■	27	600	1000	1387	0.353	0.833
F3■6632■■	32	600	600	1609	0.343	0.580
F3■6832■■	32	600	800	1609	0.373	0.773
F3■6032■■	32	600	1000	1609	0.407	0.966
F3■6637■■	37	600	600	1832	0.343	0.660
F3■6837■■	37	600	800	1832	0.420	0.880
F3■6037■■	37	600	1000	1832	0.453	1.100
F3■6642■■	42	600	600	2054	0.456	0.740
F3■6842■■	42	600	800	2054	0.465	0.986
F3■6042■■	42	600	1000	2054	0.500	1.233
F3■6647■■	47	600	600	2276	0.502	0.820
F3■6847■■	47	600	800	2276	0.511	1.093
F3■6047■■	47	600	1000	2276	0.548	1.366

F3	F3S	F3Q	F3P	F3G	Color	Color	Optional accessories: fan assembly, shelf, bracket,power distribution unit, grounding wire, keyboard, door, etc.
Glued Door	Glued Patterned Glass Door	Replaceable Glass	Flat mesh Door	Angled Mesh Door	RAL9004	RAL7035
■	■	■	■	■	■■	■■
