Features

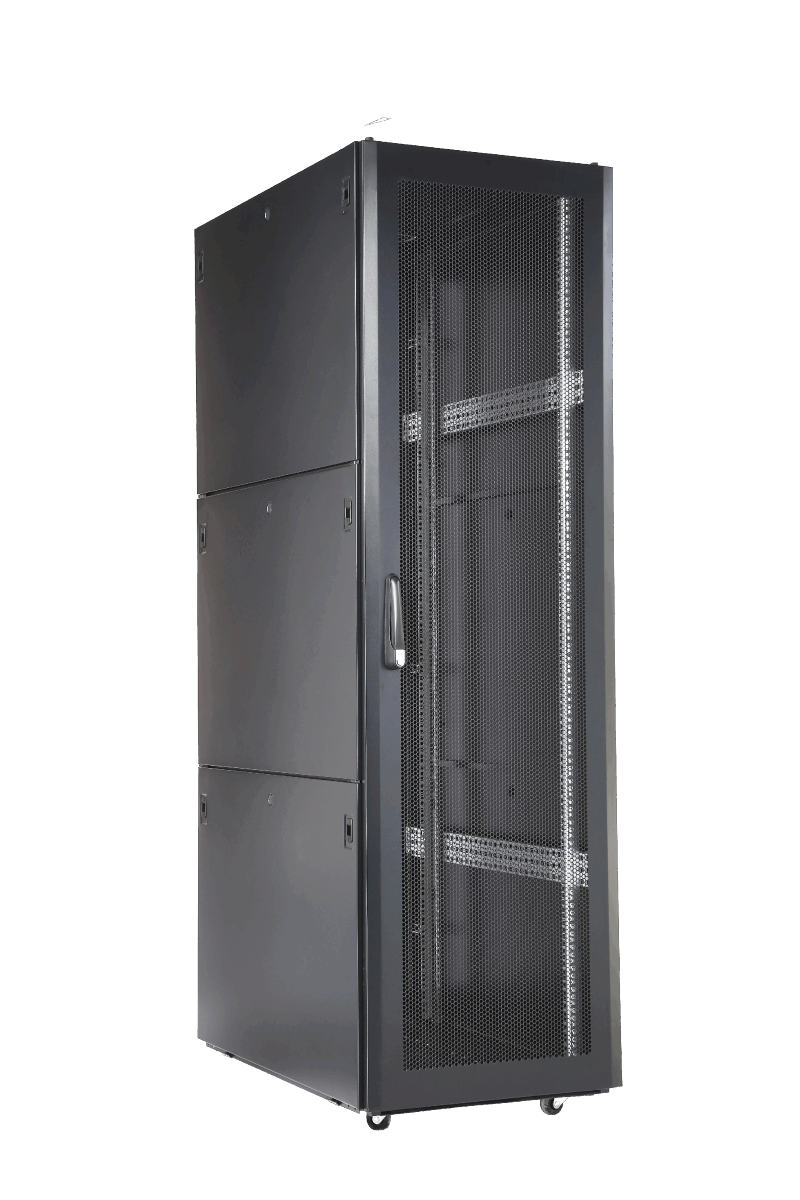

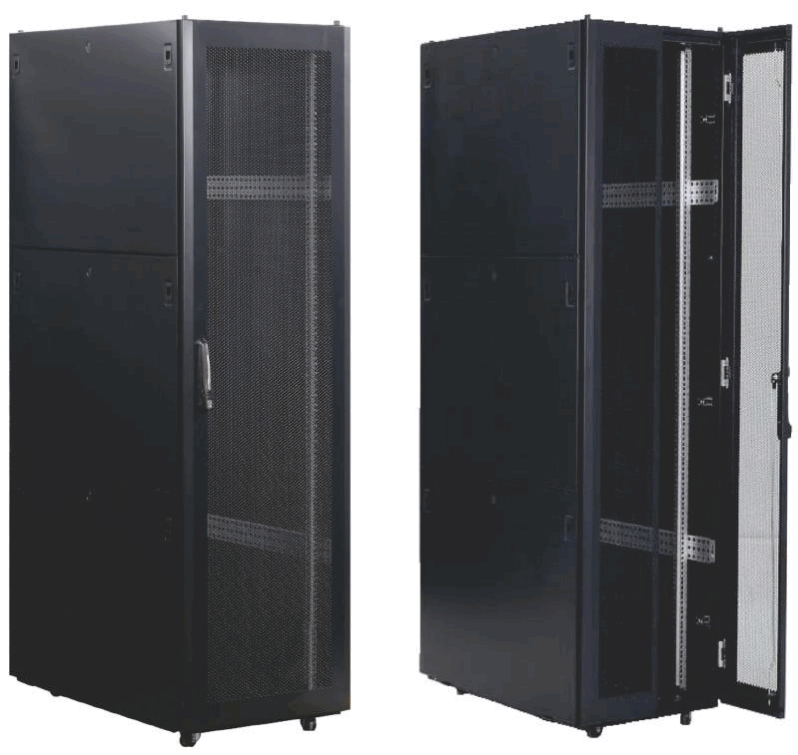

Standard 19-inch design; constructed with nine-fold profile fully welded structure, featuring removable three-section side panels;

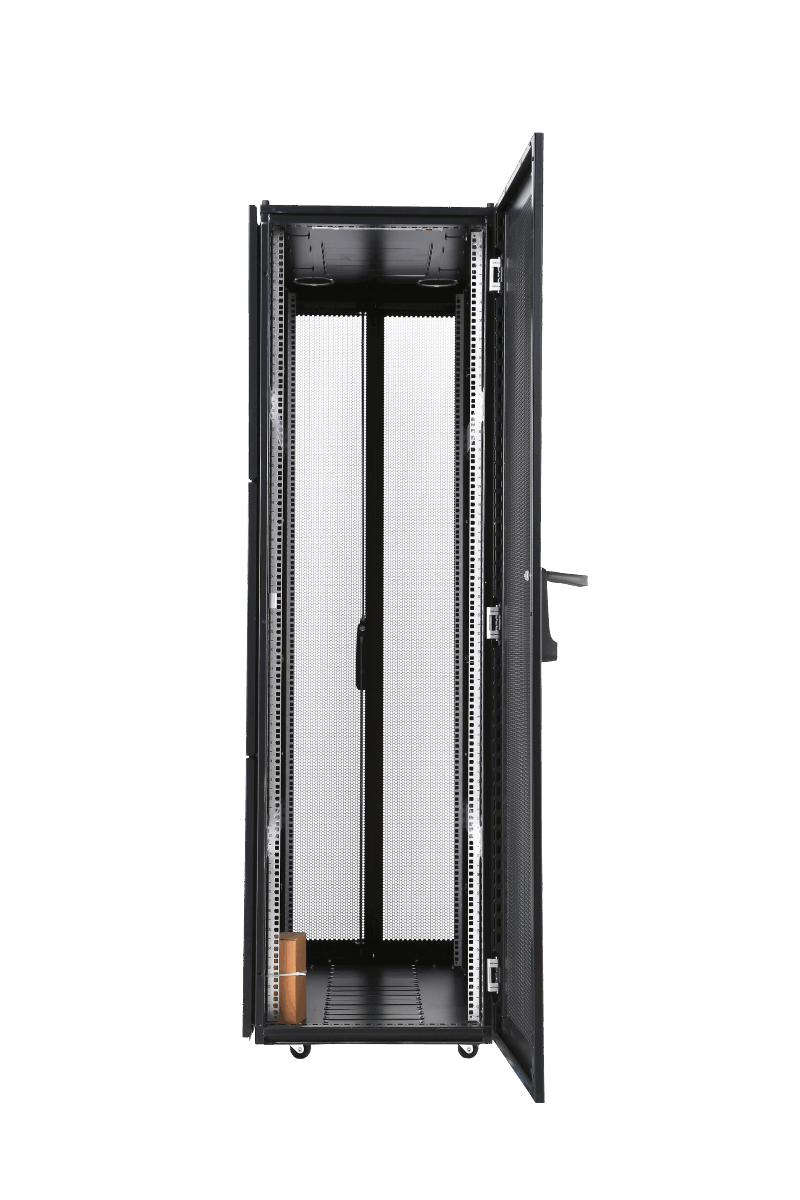

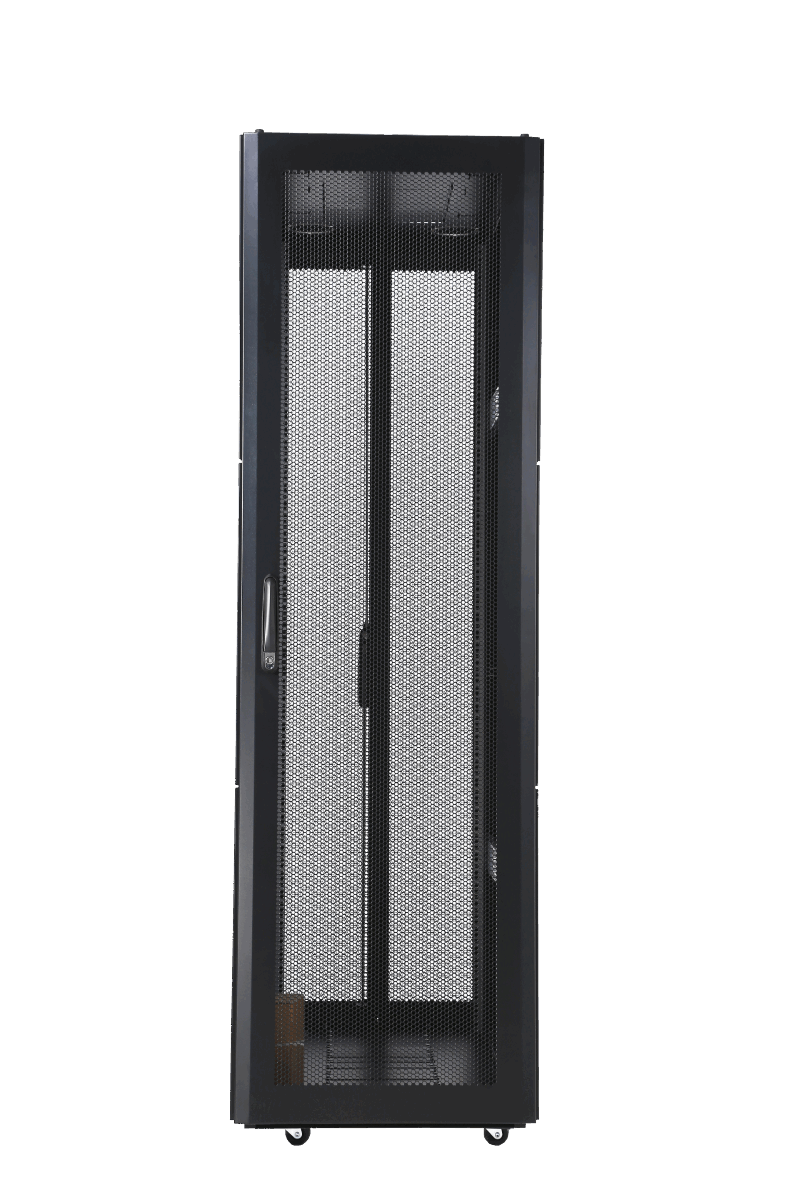

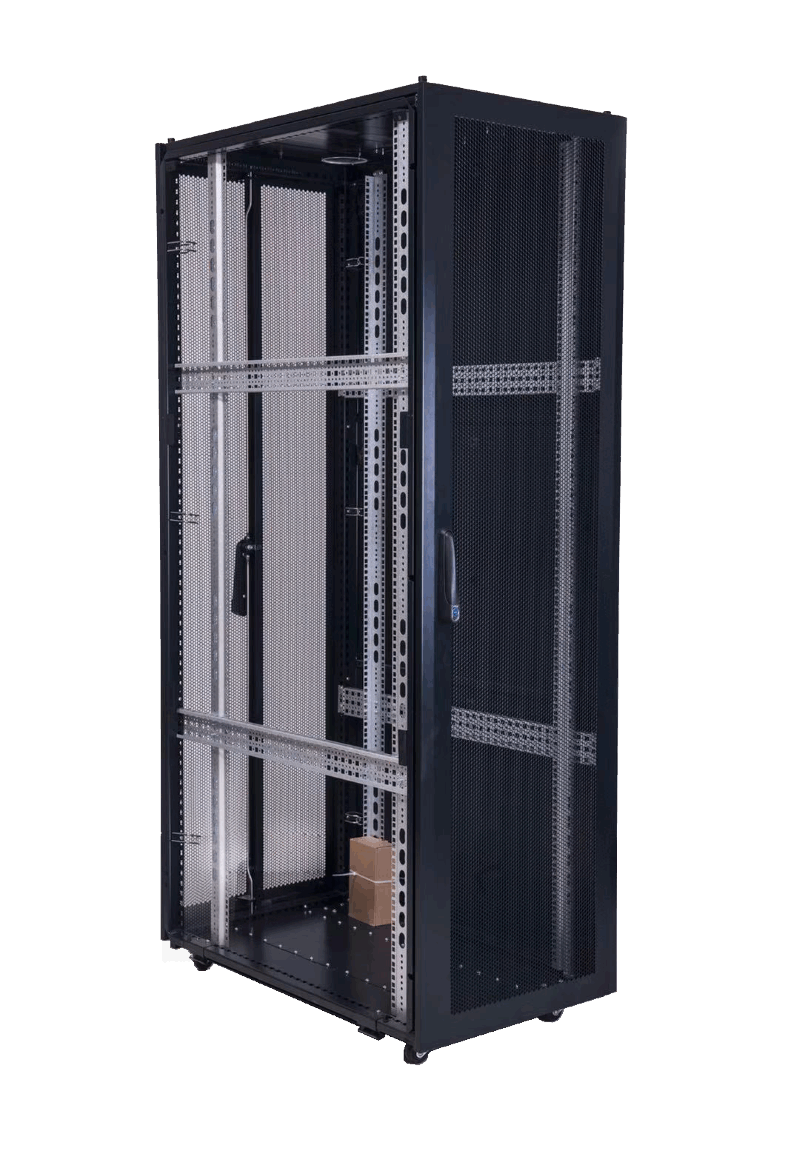

Single front mesh door & double rear mesh doors, equipped with three-point locking system; door lock styles are optional;

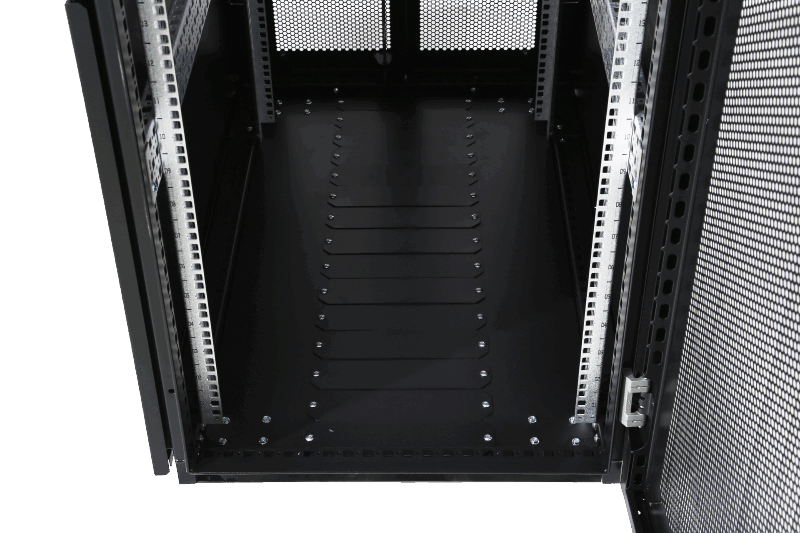

Multiple cable routing channels at the top and bottom; casters or plinths are optional;

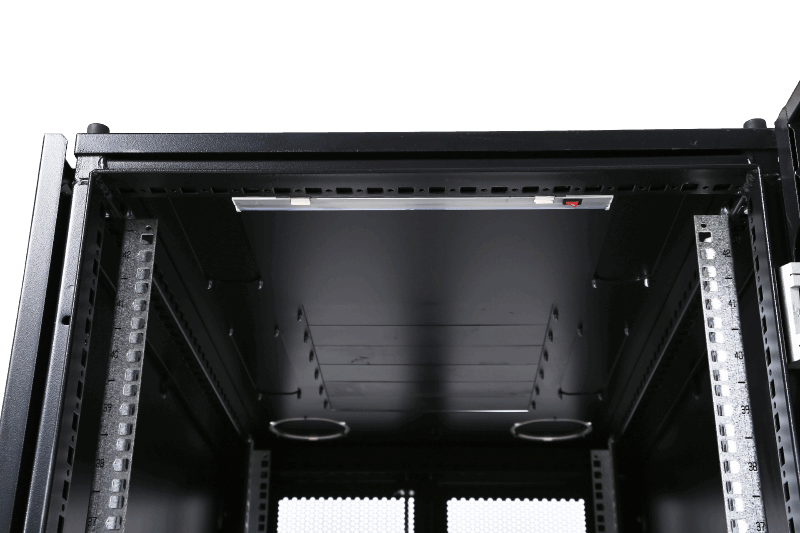

Fan sets can be installed on the top; cable management panels and PDU brackets are optional at the rear;
Easy cabinet baying; baying kits and baying partitions are optional;
Optional accessories:power distribution unit,trays, racks, blanking panels, earthing copper bars, etc.

Primary Materials

19-inch rails: Aluminum-zinc coated sheet or electrophoretic coating; other components: High-quality SPCC cold-rolled steel sheet;
Thickness: 2.0mm-1.5mm-1.2mm

Degreasing, ceramization, pure water washing, electrophoresis, or electrostatic spraying;
Protection class: IP20;
Load capacity: Static load 1000KG

Order Code	Capacity	Dimensions	Fully-assembled Volume	Weight
H1■6642■■	42	600x600	1.22
H1■6842■■	42	600x800	1.22
H1■6042■■	42	600x1000	1.22
H1■6142■■	42	600x1100	1.22
H1■6242■■	42	600x1200	1.22
H1■8842■■	42	800x800	1.22
H1■8042■■	42	800x1000	1.22
H1■8142■■	42	800x1100	1.22
H1■8242■■	42	800x1200	1.22
H1■6647■■	47	600x600	1.35
H1■6847■■	47	600x800	1.35
H1■6047■■	47	600x1000	1.35
H1■6147■■	47	600x1100	1.35
H1■6247■■	47	600x1200	1.35
H1■8847■■	47	800x800	1.35
H1■8047■■	47	800x1000	1.35
H1■8147■■	47	800x1100	1.35
H1■8247■■	47	800x1200	1.35
				Optional accessories: cable management panel, shelf, bracket, keyboard, blank panel, grounding busbar, PDU, etc.
H1P	H1G	Color	Color
Flat Mesh Door	Angled Mesh Door	RAL9004	RAL7035
■	■	■■	■■
