Product Overview

The intelligent integrated data center is designed in accordance with data center standards. It integrates cooling, power distribution, monitoring, UPS and batteries, and structured cabling modules, forming a cabinet-level intelligent micro data center. It provides safe and stable power and environmental protection for IT equipment operation; it is a compact and independent version of traditional data centers.

Application Scenarios

Banking, securities and insurance outlets
Small substations, small power plants
Branch network wiring rooms
Computer rooms of small and medium-sized enterprises
Telecom operator service halls
Primary and secondary education institutions
Central control rooms in energy and chemical industries
Control rooms along highways and rail transit
Enterprise and government offices, police stations

Product Features

◆ Safe & Reliable

Overall planning and design based on unattended operation and equipment safety
Fully enclosed cabinet system, IP5X protection level

◆ Rapid Deployment

Engineering-free design, factory prefabrication, controllable quality, modular design, fast capacity expansion
Customization supported

◆ Low Investment

Reasonable capital investment cost
Significantly reduced time cost
Save at least 50% of space cost
Cabinet is the data center, movable with office location, fast reconstruction, no decoration cost

◆ Highly Integrated

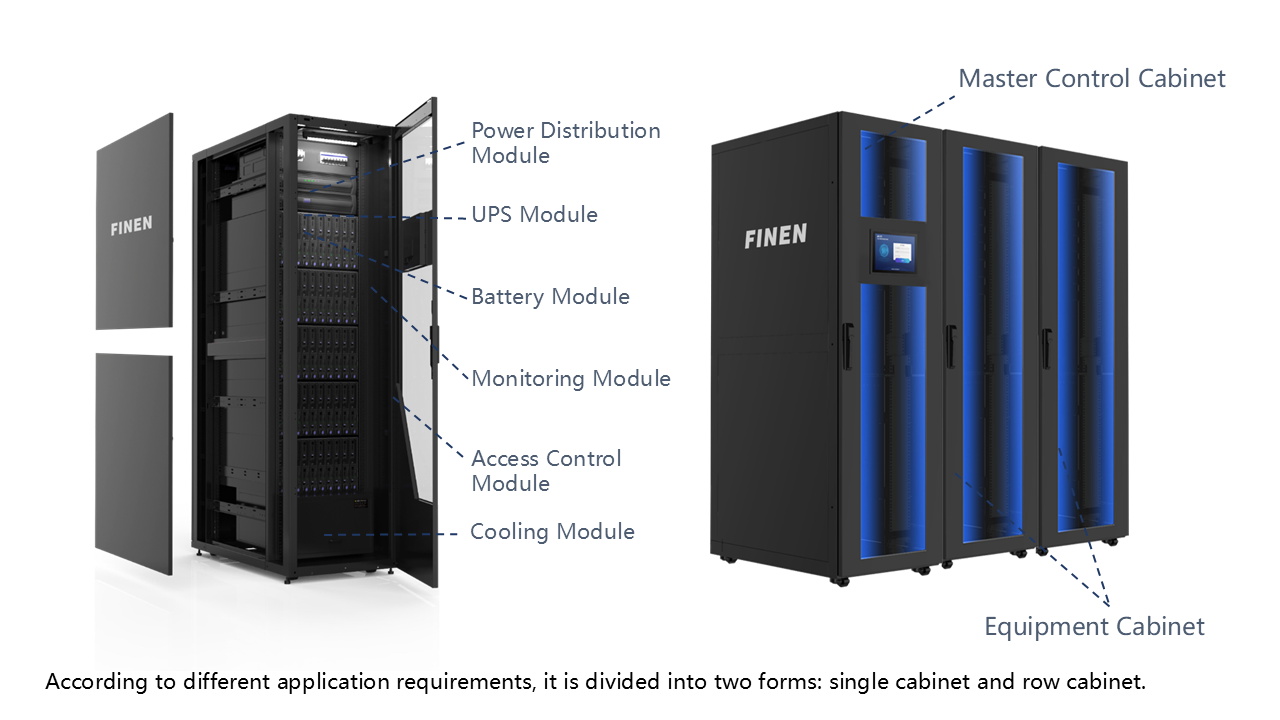

Integrates cabinet, cooling, power supply, structured cabling, fire protection, ventilation, grounding, lighting, monitoring and other subsystems to provide a complete solution

◆ Comprehensive Monitoring

Realizes uninterrupted monitoring of all functional modules, mastering real-time operation status
Centralized monitoring for multiple sites

◆ Energy Saving & Silent

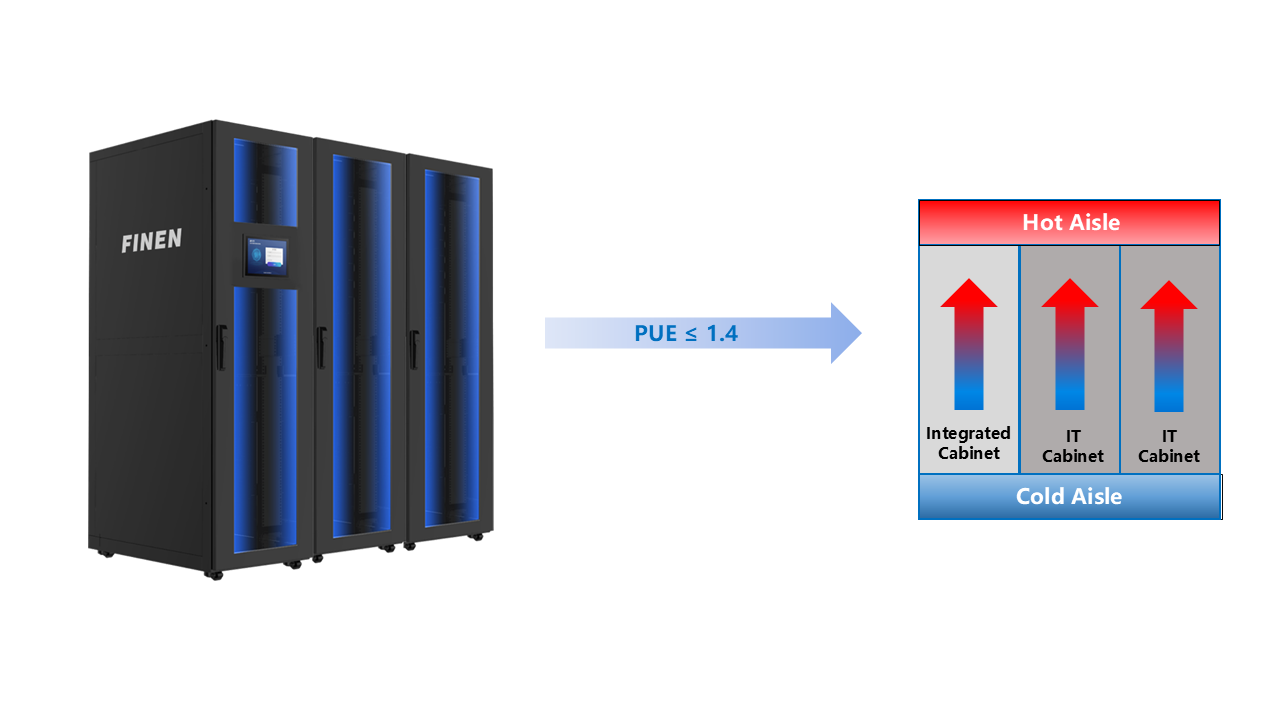

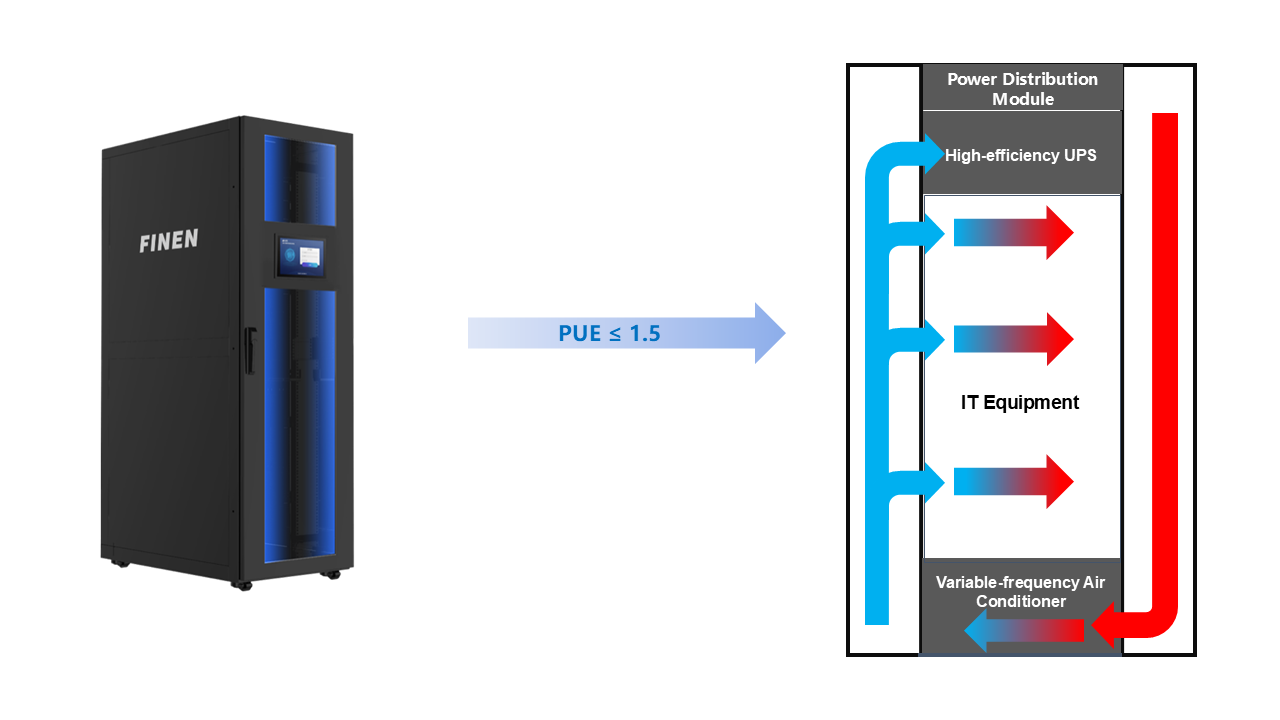

Centralized cooling space, low PUE
New thermal insulation materials
Silent, noise ≤ 55dB(A), suitable for any office environment

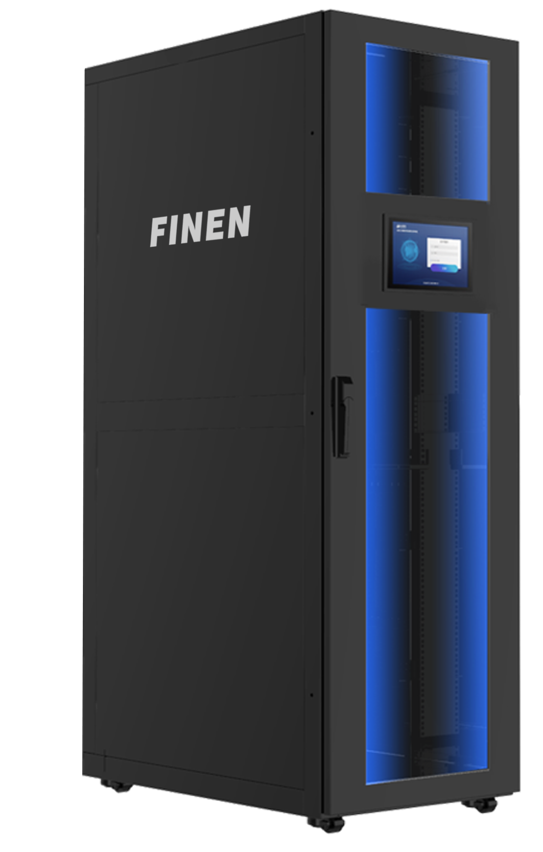

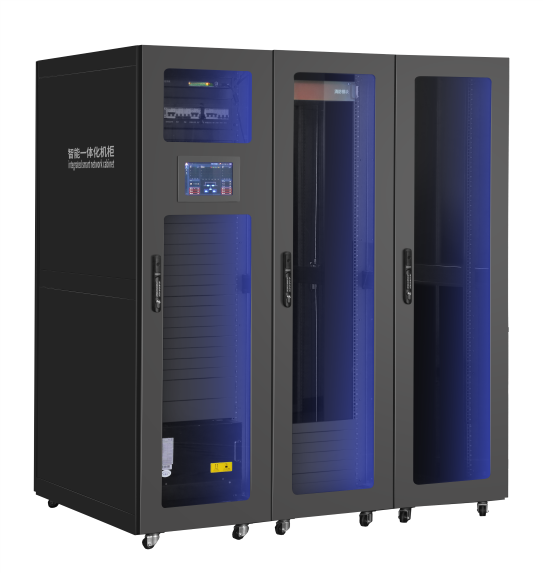

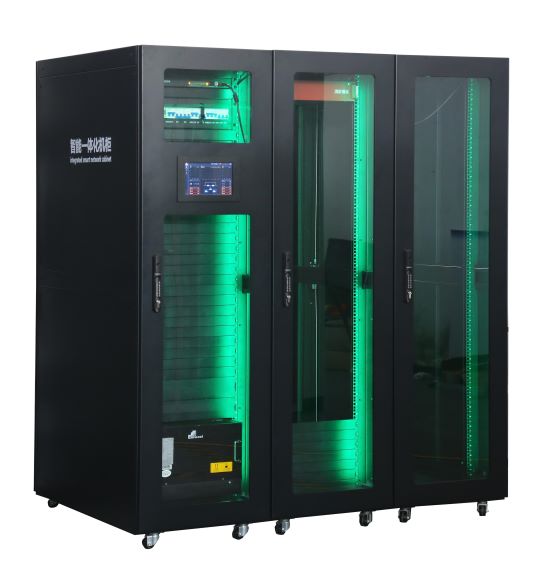

Appearance

Specifications

Item		Description	Single Cabinet	Row of Cabinets (Max 1 master 7 slaves)
Overall Parameters		Power Supply	220Vac, 380Vac
		Operating Environment	0~40℃
		Altitude	0~4000m (Derate above 2000m)
Cabinet System		Cabinet Dimensions (WHD)	600mm2000mm(1200-1400)mm	(600~4200)mm2000mm(1200-1400)mm
Power Distribution System	System Input	Main Input Circuit Breaker	Supports single/dual input 32A/63A	Supports single/dual input 32A/63A/100A/200A/250A
	System Output	Output Circuits	UPS input, UPS output, UPS bypass, PDU output, cooling output; Circuit breakers: 16A~100A
	UPS	Capacity	3KVA/6KVA	6KVA~30KVA
		Configuration	Single UPS	Single/Dual UPS
		Power Factor	≥0.9
		Efficiency	≥94%
		Backup Power	Lead-acid battery packs, lithium battery packs, lead-acid batteries, battery racks, battery cabinets
Cooling System		Rack-mounted Air Conditioner	3.5KW/4.2KW/8.1KW/12.5KW cooling, N+1 redundancy, outdoor unit: -40℃～45℃, indoor unit: 18℃～40℃; DC inverter EC compressor, inverter fans; All pipes with quick connectors, no welding required; Pipe length customized on site.
Monitoring System		Monitoring Functions	10.1-inch touch screen, power distribution monitoring, UPS monitoring, battery monitoring, power supply monitoring, temperature & humidity monitoring, smoke detection, water leakage detection, cooling monitoring, access control monitoring; Includes system management, monitoring management, real-time data and historical data management.
Optional Components		Component Name	Intelligent access control, SMS alarm, video monitoring, low temperature components, AC pipe extension, centralized management platform, ATS module, etc.

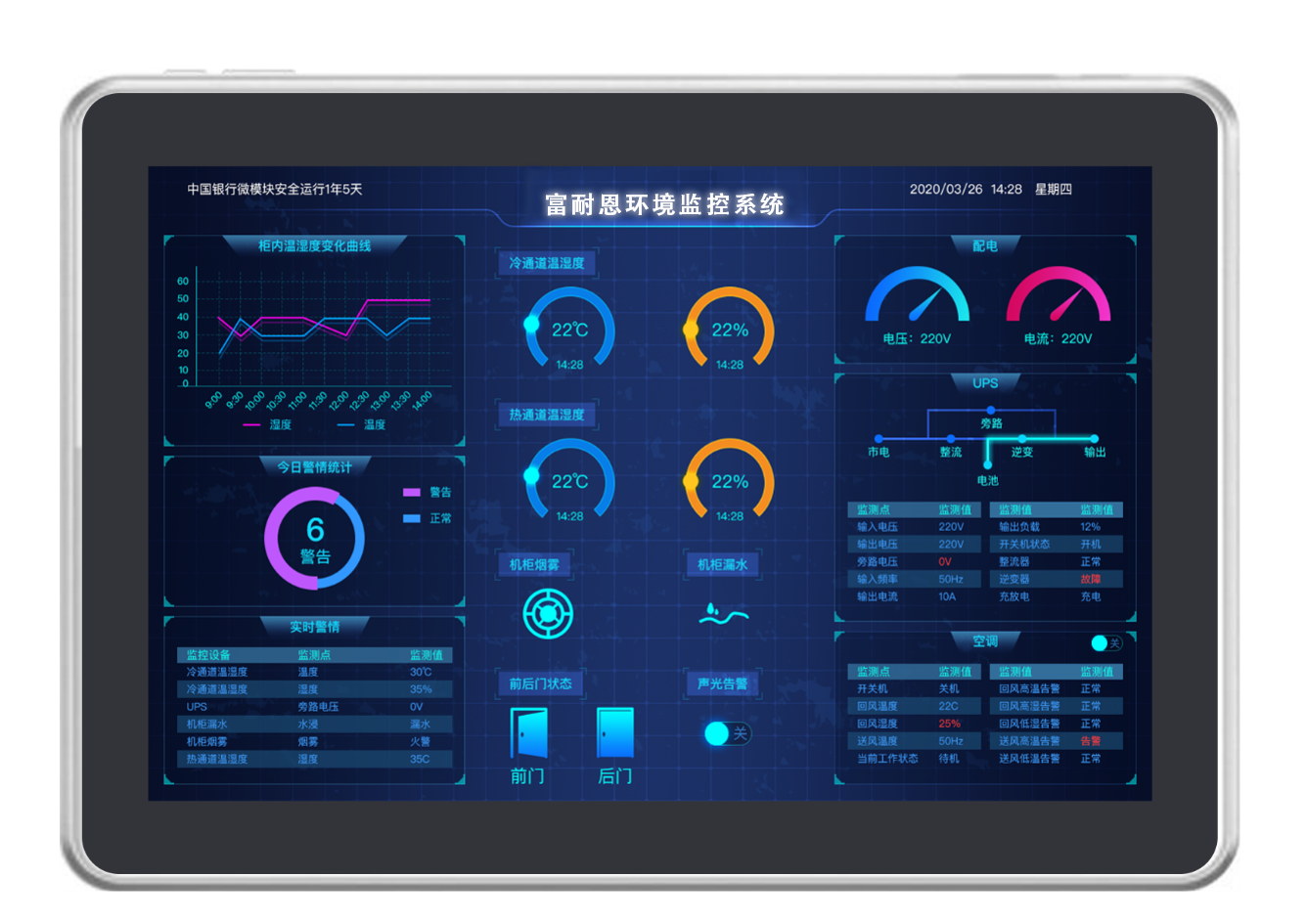

Key Technology - Micro Environment Monitoring

Comprehensive monitoring of power and environment units: UPS, batteries, power distribution, air conditioning, temperature & humidity, smoke, water leakage
Asset management, 3D view, custom interface, multi-view via PC, mobile phone, Pad, App
Full control of historical information and real-time status
Accurate energy efficiency management, real-time PUE display
7*24 hours monitoring, multi-channel alarm presentation
Supports northbound interface with monitoring center
