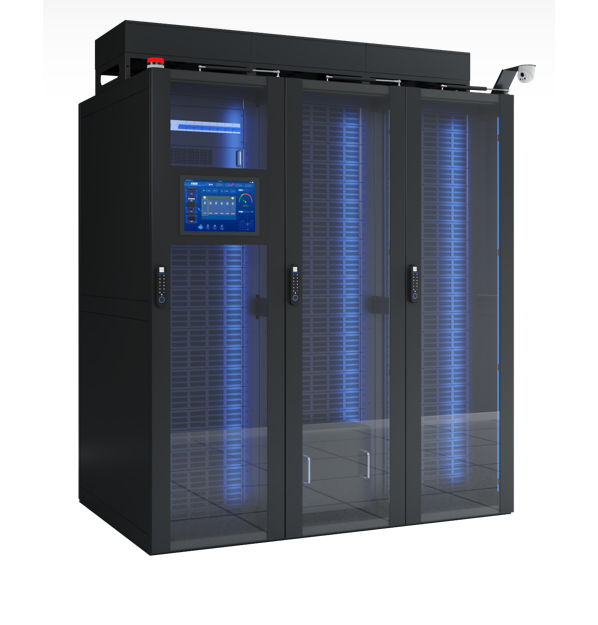

Smart Integrated Cabinet Generation 2
Product Details
Product Overview
A compact, modular data center solution designed for edge computing and branch offices. Featuring a highly integrated design, it consolidates power distribution, UPS, monitoring, cooling, server cabinets, fire suppression (optional), and security systems into a single, unified platform, significantly reducing the required floor space. Prefabricated at the factory and ready to plug-and-play, it enables rapid deployment and remote operations and maintenance.

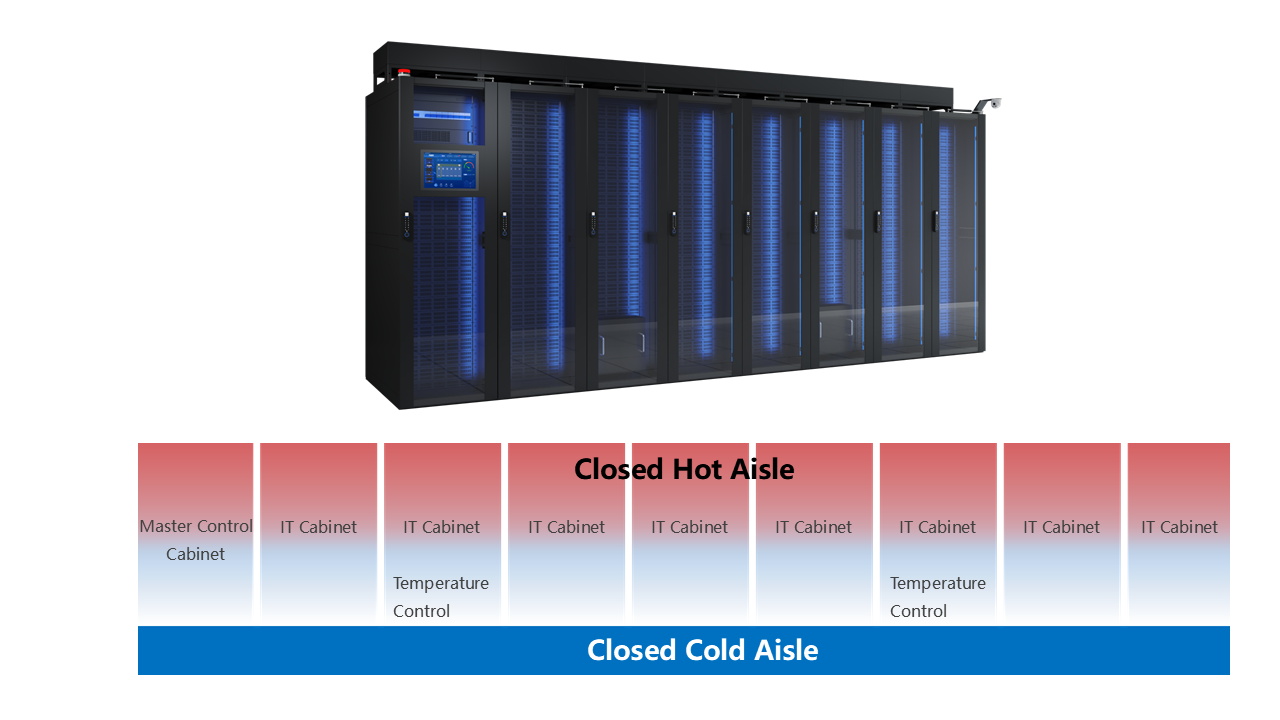

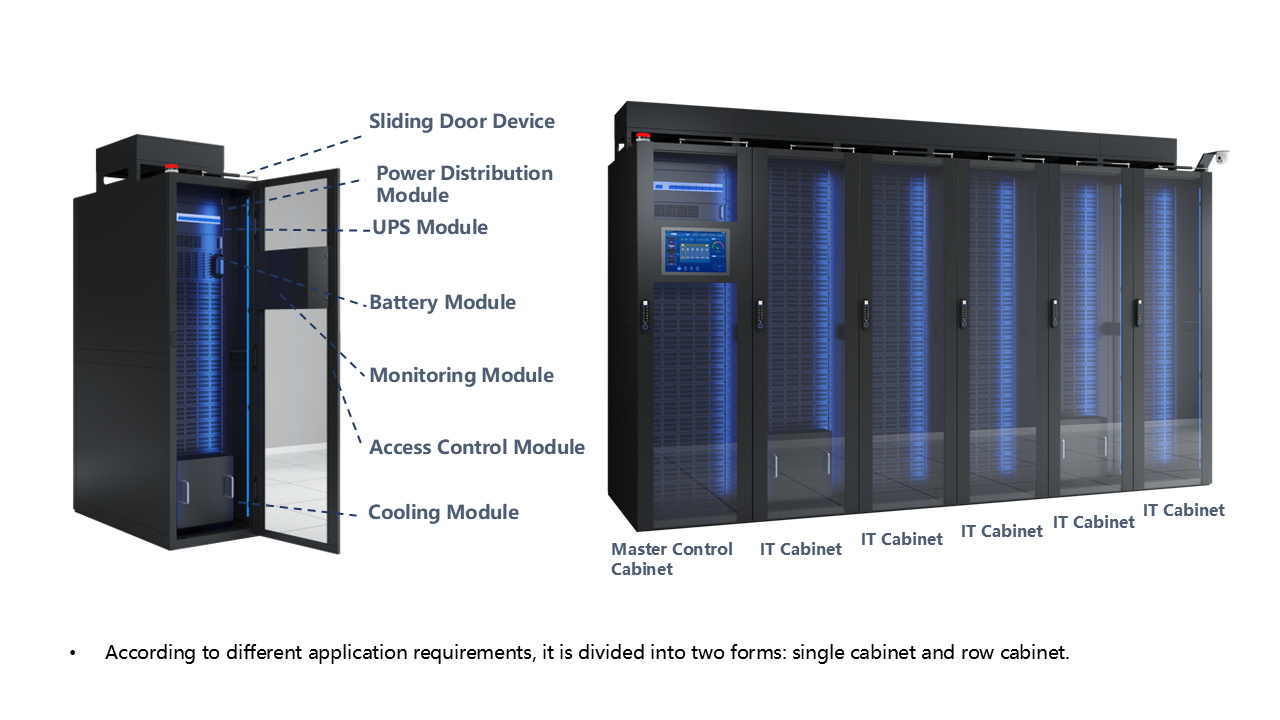

Single-row modular design with enclosed hot and cold aisles for enhanced energy efficiency. Rack-mounted UPS combined with power distribution modules delivers a compact, safe, and reliable architecture. An efficient power and cooling system ensures stable operation.

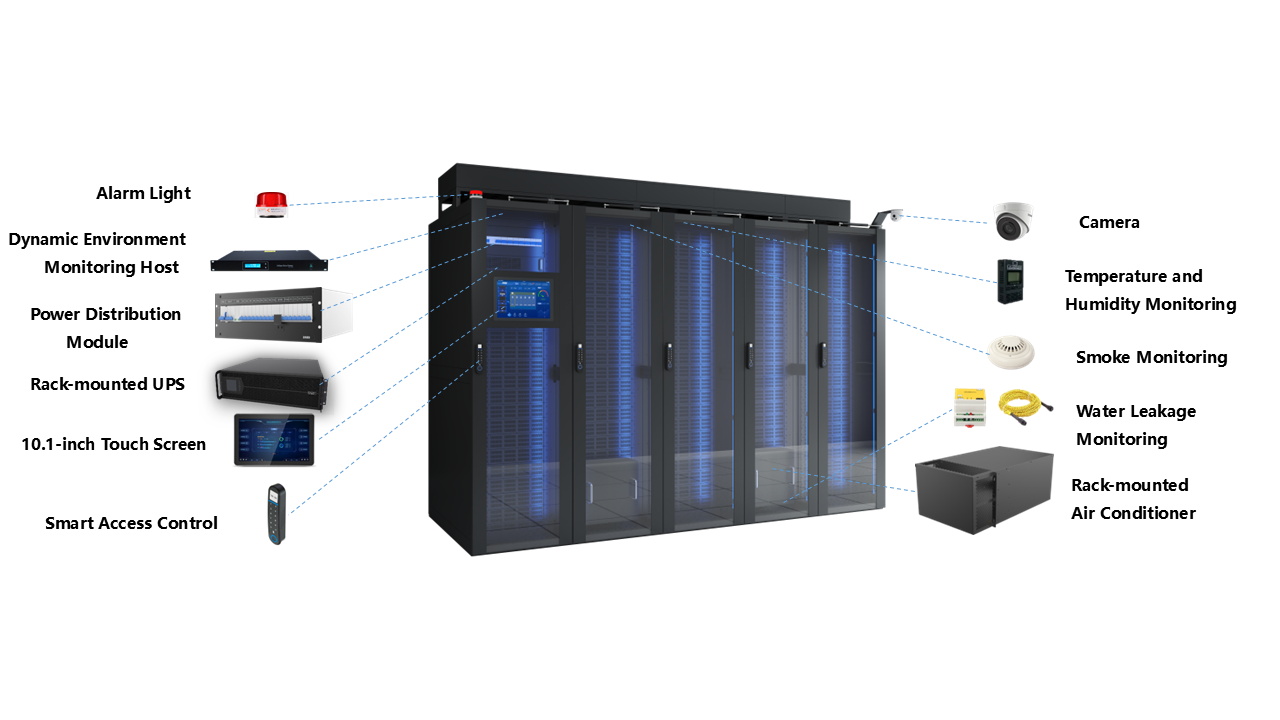

Integrates power distribution, UPS, monitoring, cooling, cabinet, and security systems. Supports rapid capacity expansion and intelligent management, reducing operational and maintenance complexity.
Specifications and Parameters
| Project | Description | Single cabinet | Cabinet arrangement (supports up to 1 master unit and 7 slave units) |
|---|---|---|---|
| Overall parameters | Power supply standard | 220Vac, 380Vac | |
| Work environment | 0~40℃ | ||
| Altitude | 0–4,000 m (derated operation above 2,000 m) | ||
| Cabinet System | Cabinet dimensions (width × height × depth) | 600 mm × 2000 mm × (1200–1400) mm | (600–4200) mm × 2000 mm × (1200–1400) mm |
| Distribution System | Input main switch | 32A/63A | 32A/63A/100A/200A/250A |
| Output circuit | UPS input, UPS output, UPS bypass, PDU output, cooling output, etc.; 16 A to 100 A | ||
| UPS capacity | 3KVA/6KVA | 6 kVA ~ 30 kVA | |
| UPS Configuration | Single UPS | Single/Double UPS | |
| Power factor | ≥0.9 | ||
| Efficiency | ≥94% | ||
| Backup power | Lead-acid battery packs, lithium battery packs, battery racks, and battery cabinets | ||
| Refrigeration system | Rack-mounted air conditioner | 3.5 kW / 4.2 kW / 8.1 kW / 12.5 kW; N+1 redundancy; outdoor operating range: -40°C to 45°C; indoor operating range: 18°C to 40°C; inverter-driven compressor; quick-connect fittings—no soldering required. | |
| Surveillance system | Monitoring function | 10.1-inch touch screen, supporting monitoring of power distribution, UPS, batteries, temperature and humidity, smoke, water leakage, access control, and more; supports real-time and historical data management. | |
| Optional Components | Component Name | Smart access control, SMS alerts, video surveillance, low-temperature components, air-conditioning extension modules, centralized management platform, ATS module, and more. | |
Application Industries

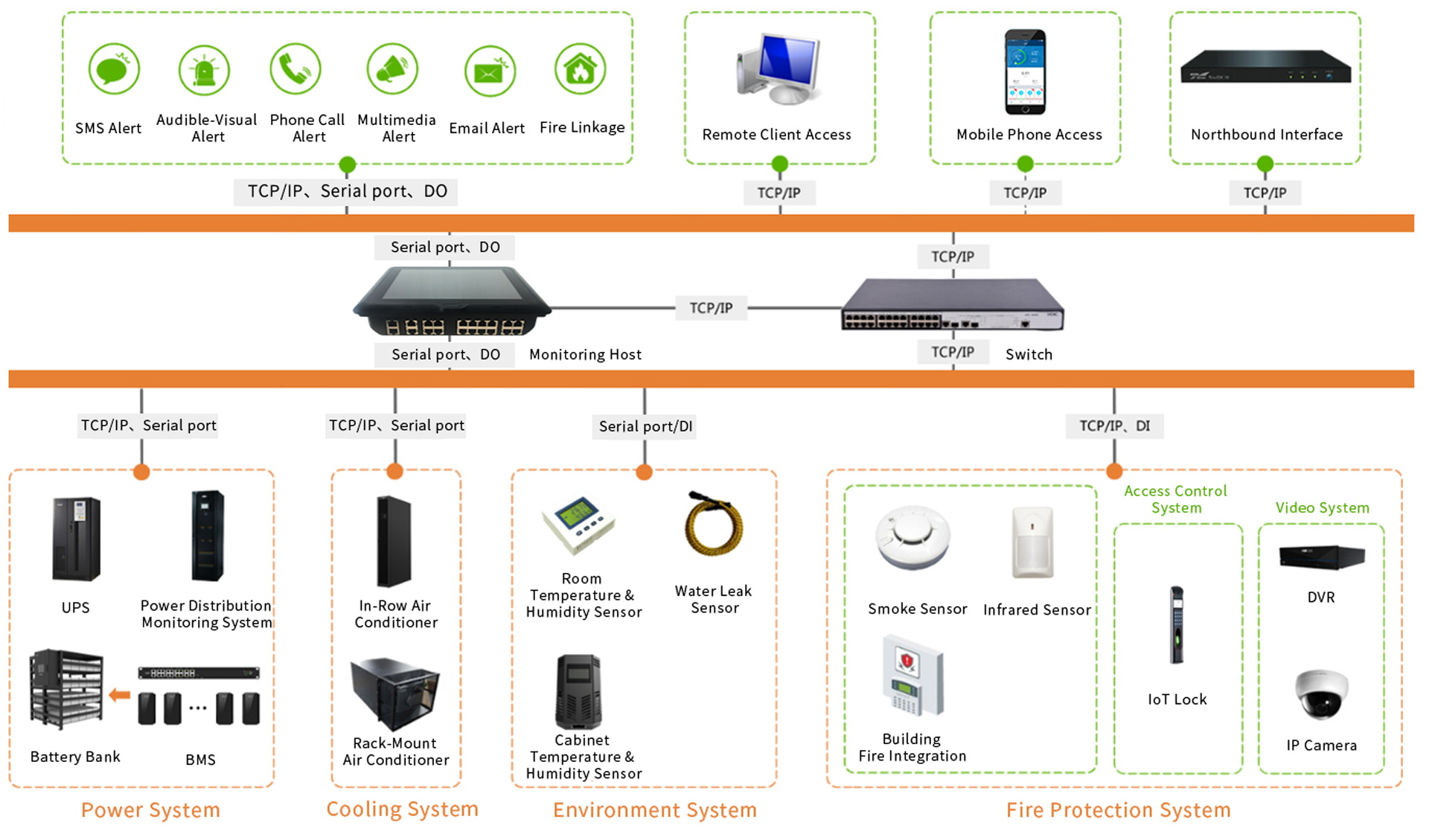

Integrated Monitoring System

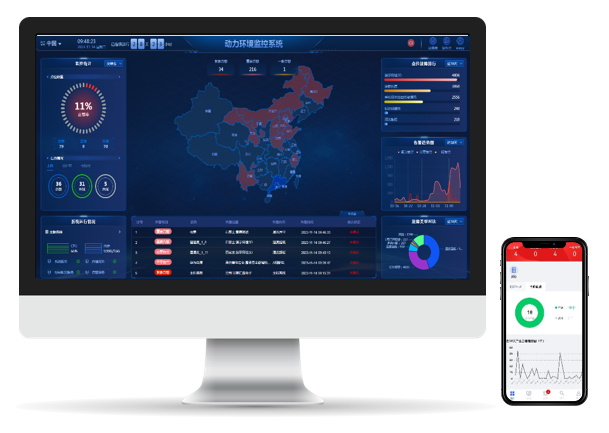

Monitoring Platform
- Supports image/GIS map display
- Device status/IP/online statistics
- Remote viewing and control
- Regional permission management
- 3D status monitoring
- Alarm statistics and analysis
- Multi-mode alarm
- Graphical display
B/S Architecture · High Reliability · Low Latency · High Concurrency
Product Features
- Unattended design
- IP5X protection level
- Factory prefabrication
- Modular expansion
- Reduce capital cost
- Save space ≥50%
- No computer room decoration required
- All-system integration
- Real-time operation monitoring
- Multi-site management
- Low PUE
- Noise ≤55dB
Product Display

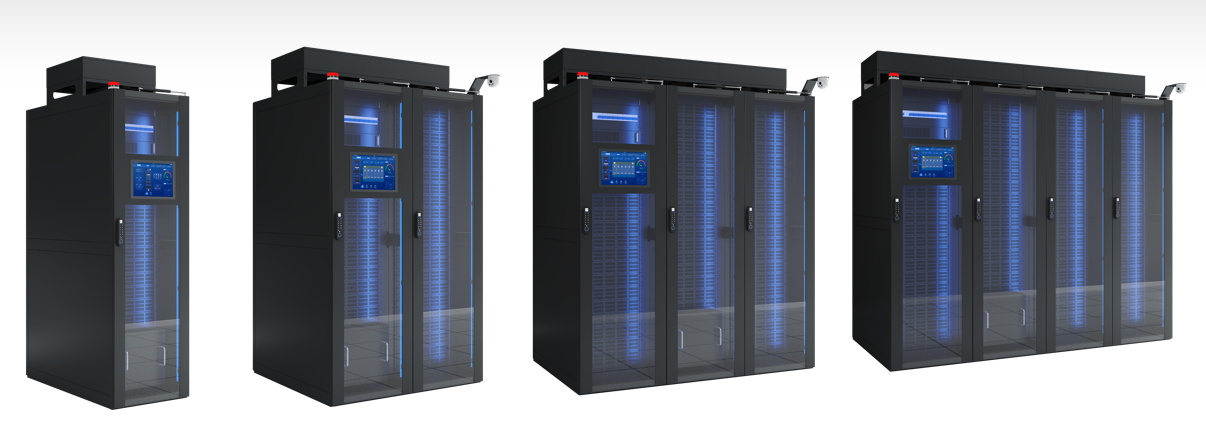

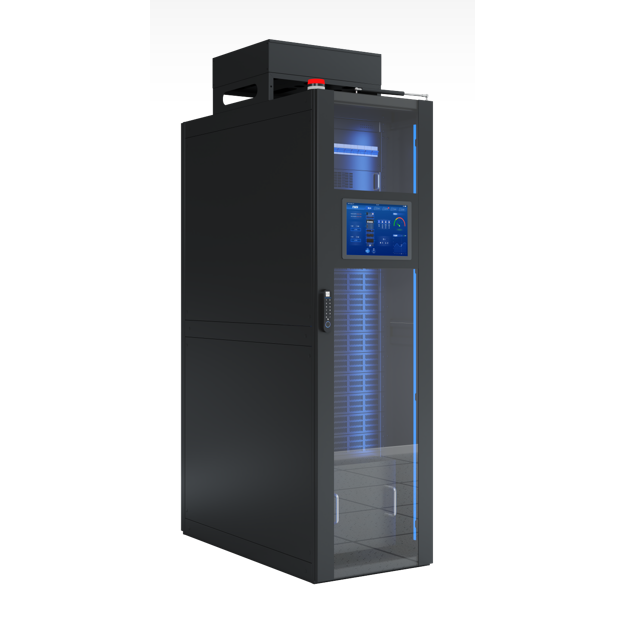

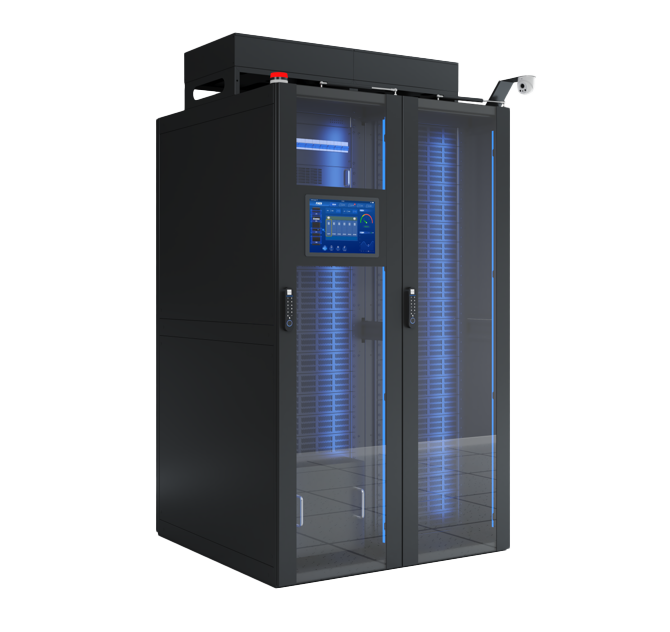

Single Cabinet / 1-3 Cabinet Combination

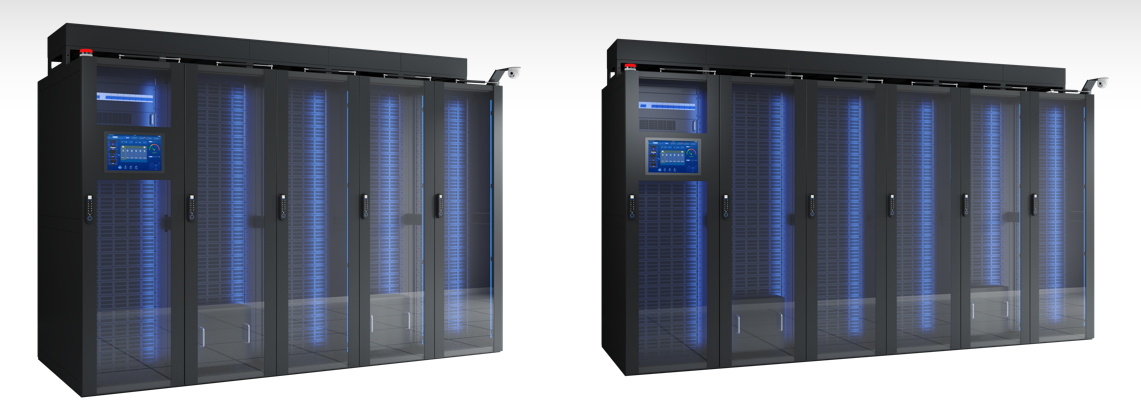

4-5 Cabinet Combination

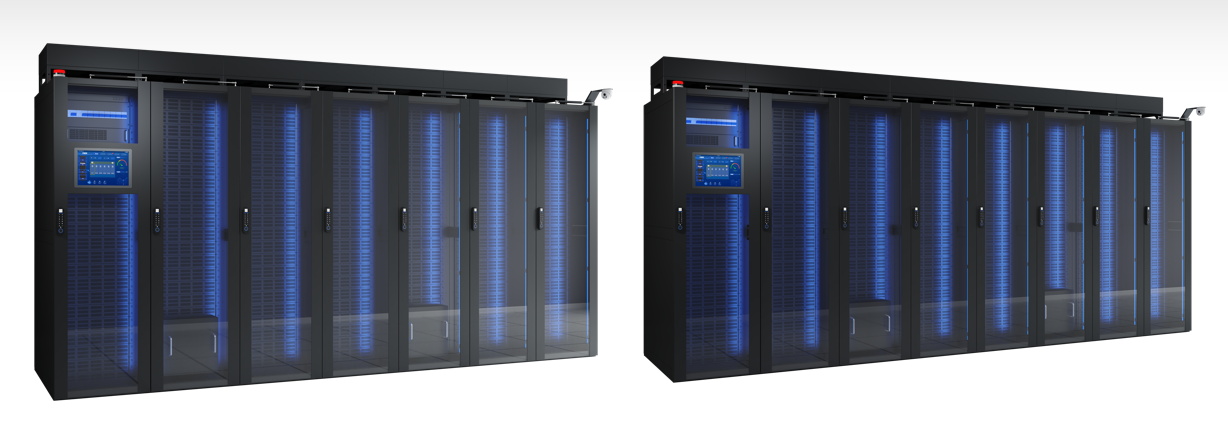

6-7 cabinet combination
