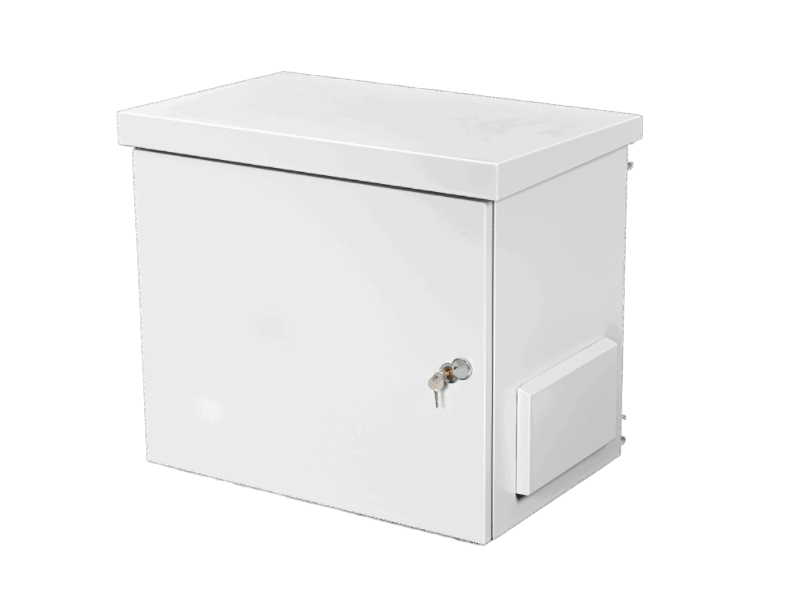

19-inch Outdoor Enclosure
Product Details
Features
- 19-inch design, welded construction, waterproof port design, substrate made of galvanized steel sheet.

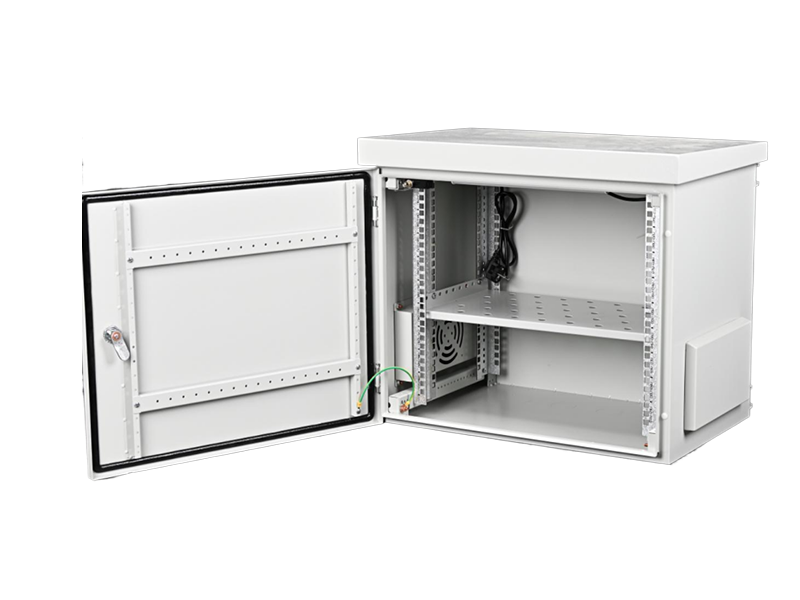

- Seamless foam molding technology is used for the door panels. The cabinet door can be adjusted to open and close on either the left or right side. Additional components such as document trays and cable management brackets can be installed on the door. The interior of the cabinet can be fitted with trays or custom mounting plates, and panels can be added to provide an extra layer of protection. Insulation panels can also be installed inside the cabinet.
- The cable entry method at the bottom of the enclosure is optional, offering options such as waterproof connectors, plastic protective grommets, and rubber grommets.

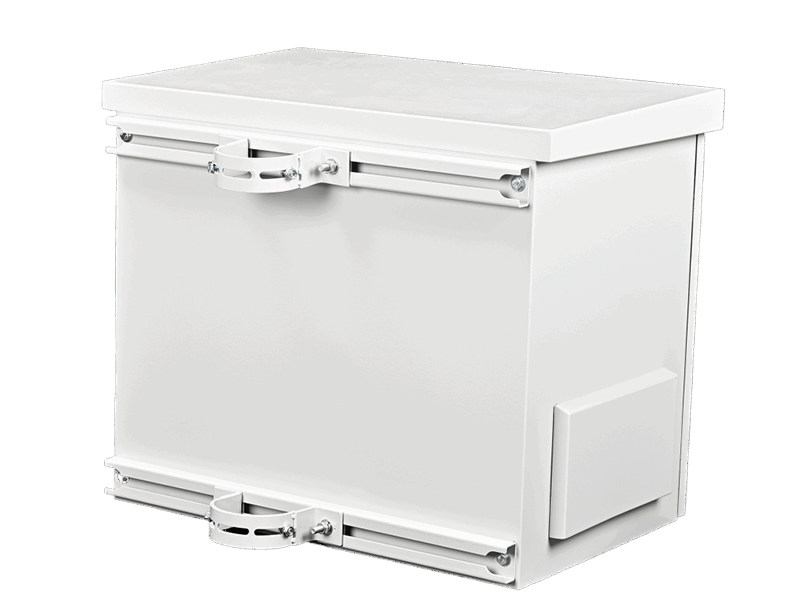

- The rear of the enclosure is equipped with pre‑drilled mounting holes for wall mounting; a bracket assembly is required for the hanging rod, and the bracket assembly is an optional accessory.
- Main material: SECC galvanized sheet
- Thickness: 1.5 mm for the mounting plate, 1.2 mm for others
- Surface Treatment: Degreasing, Conversion Coating, Pure Water Rinse, Electrophoresis, or Electrostatic Spraying
- Protection rating: IP55
- Load Capacity: Static Load 80 kg
|
Order code Order Code |
Capacity Capacity (U) |
Width Width (mm) |
Depth Depth (mm) |
Height Height (mm) |
| FX196404 | 4 | 640 | 450 | 280 |
| FX196406 | 6 | 368 | ||
| FX196409 | 9 | 501 | ||
| FX196412 | 12 | 635 | ||
| FX196415 | 15 | 769 | ||
| FX196418 | 18 | 901 | ||
| FX196604 | 4 | 600 | 280 | |
| FX196606 | 6 | 368 | ||
| FX196609 | 9 | 501 | ||
| FX196612 | 12 | 635 | ||
| FX196615 | 15 | 769 | ||
| FX196618 | 18 | 901 | ||
| Optional accessories: second-floor door, second-floor panel, insulation cotton or insulation board, cable management rack, tray, bracket, keyboard, blanking panel, grounding copper busbar, PDU, etc. | ||||
