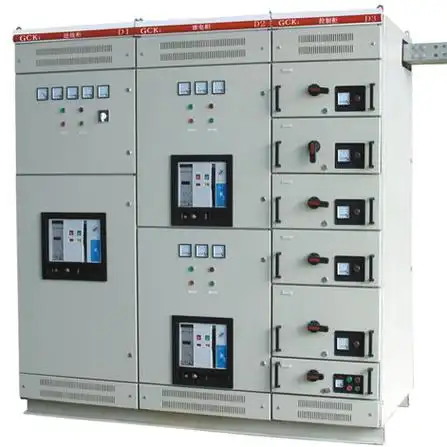

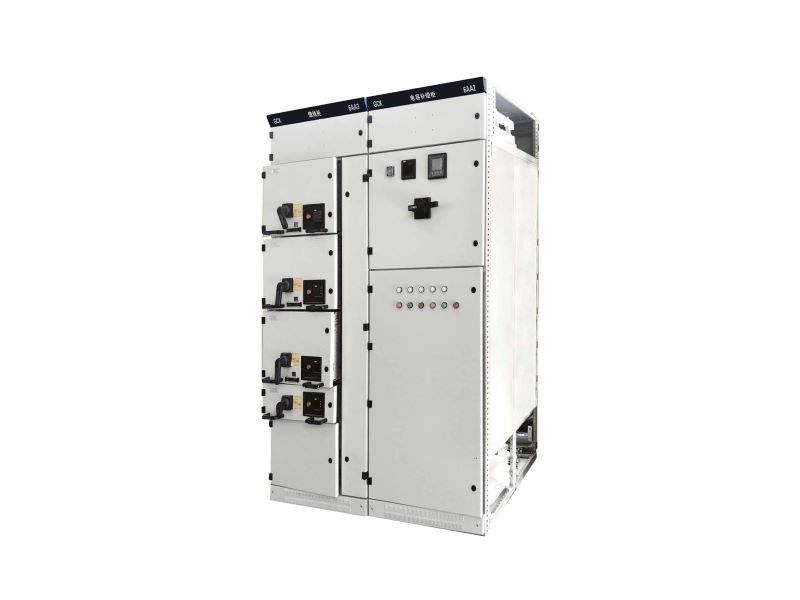

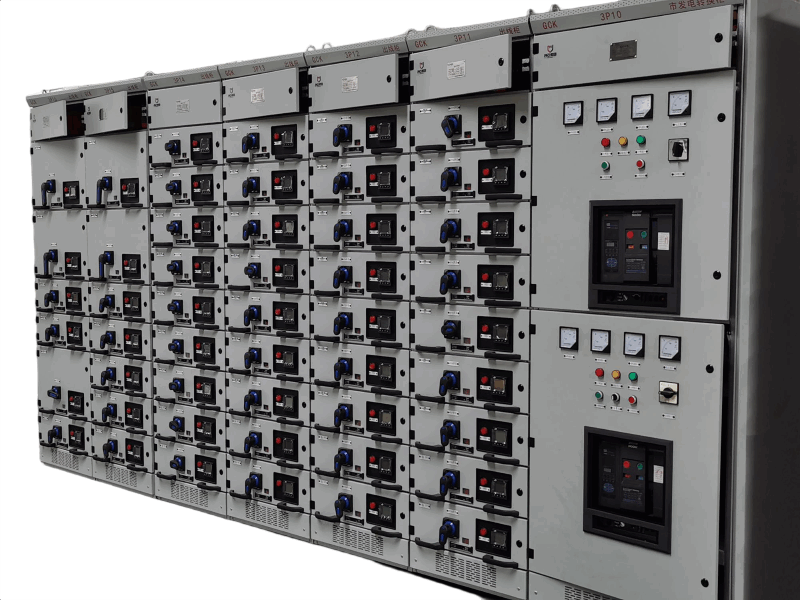

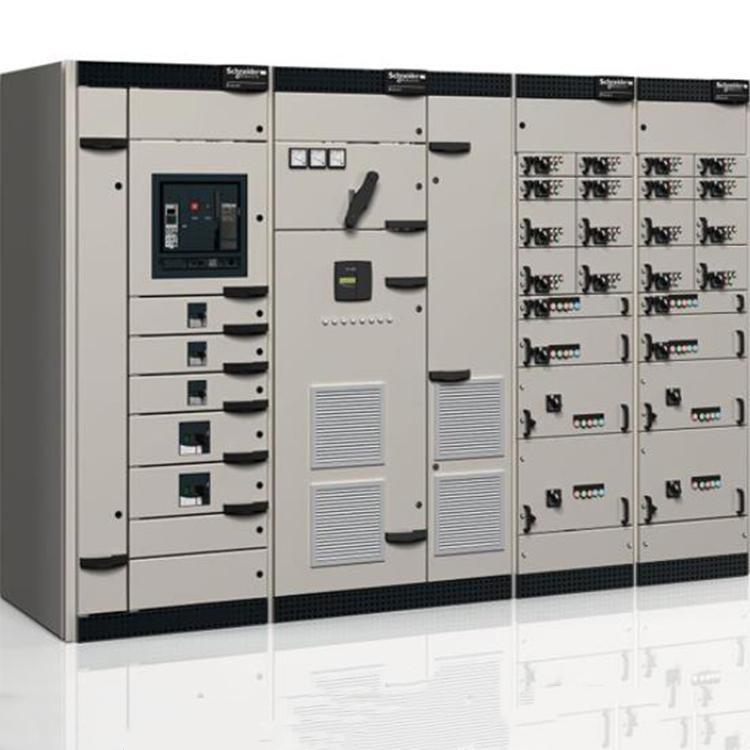

GCK Low-Voltage Withdrawable Switchgear

Complies with ANSI/EIA RS-310-D, IEC 297-2, DIN 41491 Part 1, DIN 41494 Part 7, and GB/T 3047.2-92 standards, and implements EN 60529/10.91, EN 60529/IEC 529, and GB 4208-93 standards.

Product Details

Product Features

The GCK low-voltage withdrawable switchgear consists of two main components: the Power Center (PC) cabinet and the Motor Control Center (MCC). It is suitable for power users such as power plants, substations, and industrial and mining enterprises, serving as a distribution system for AC 50 Hz with a maximum operating voltage of up to 660 V and a maximum operating current of up to 3150 A. It is used for power distribution, motor control, lighting, and other electrical equipment applications, providing power conversion, distribution, and control functions.

Model Meaning

G: Enclosed switchgear

C: Pull-out type

K: Control Center

Terms of Use

  • Altitude not exceeding 2000 m;
  • The ambient air temperature shall not exceed +40°C, with an average temperature no higher than +35°C over any 24‑hour period, and the ambient air temperature shall not fall below -50°C.
  • Atmospheric Conditions: The air should be clean, with relative humidity not exceeding 50% at a temperature of +40°C. Higher relative humidity is permissible at lower temperatures, for example, 90% at +20°C.
  • Locations free from fire, explosion hazards, severe contamination, chemical corrosion, and violent vibrations; · The inclination relative to the vertical plane shall not exceed 5 degrees.
  • This product is suitable for transportation and storage at temperatures ranging from -25°C to +55°C, with short-term exposure (no more than 24 hours) up to +70°C.



Technical Parameters

Project

Parameters

Rated Operating Frequency (Hz)

50

Rated Operating Voltage (V)

380,660

Rated Insulation Voltage (V)

660

Rated Operating Current (A)

Horizontal busbar

400-4000

Vertical busbar

600

Rated short-time withstand current

Horizontal busbar

80 kA (RMS) / 1 second

Vertical busbar

50 kA (RMS) / 1 second

Rated peak withstand current

Horizontal busbar

176kA/0.1s

Vertical busbar

110kA/0.1s

Main circuit connector (A)

200,400

Auxiliary Circuit Connector (A)

10

Power frequency withstand voltage for 1 minute (V)

2500

Protection Level

IP40

Operation Method

On-site, remote, automatic
