Features

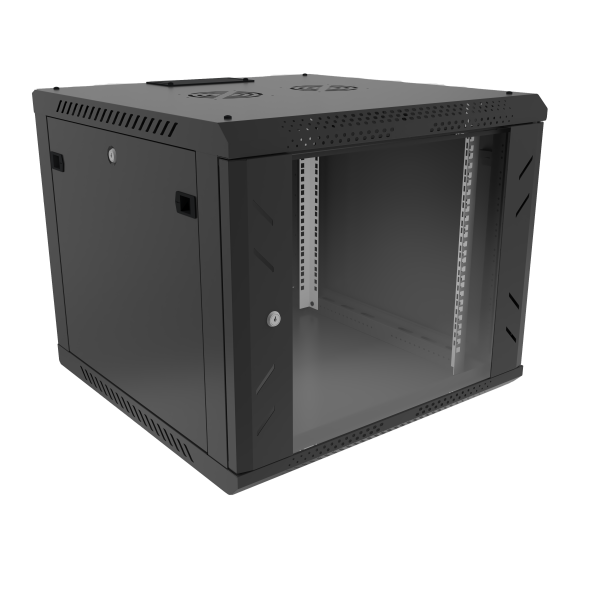

Standard 19-inch design with modular construction; shipped fully assembled or by flat packing

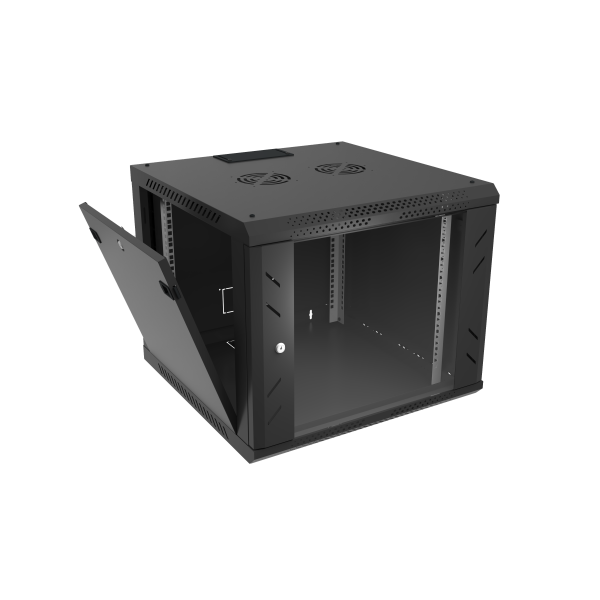

Front door opens ≥180°, optional tempered glass door with fixing blocks: tempered glass can be easily replaced if broken.

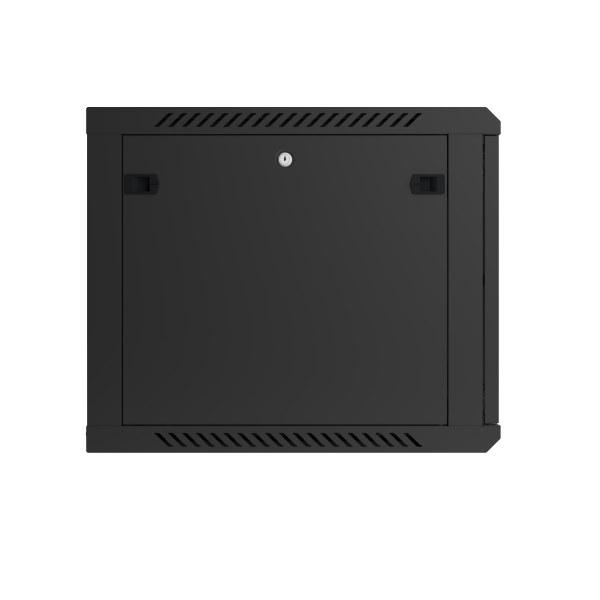

Quick-release side doors for easy installation and maintenance
Cable routing channels in top, bottom, and rear sections
Wall-mounted or floor-standing installation options; optional wall-mounted plate available. Floor-standing units include optional feet and casters
Optional accessories: fans, power supplies, shelves, brackets, etc.

Primary Materials

19-inch Rail: Aluzinc or electrophoretic coated; Other components: SPCC premium cold-rolled steel sheet
Thickness: 19-inch rail 1.5mm, Other components 0.8mm

Degreasing, ceramization, pure water rinsing, electrophoretic coating or electrostatic spraying
Protection Rating: IP20
Load Capacity: Static load 60KG

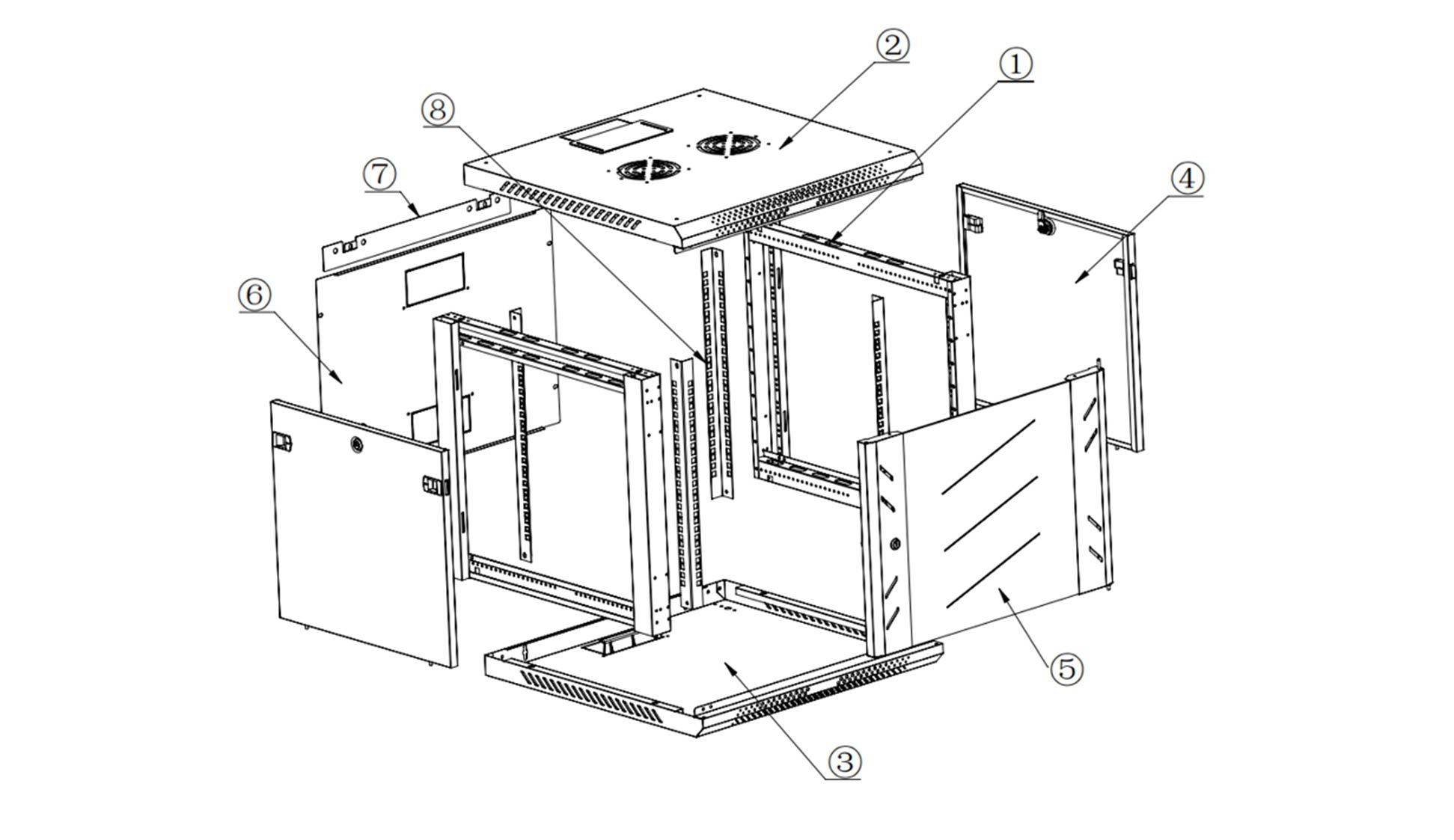

No.	Description	Quantity	Unit	Material	Surface Treatment	Remarks

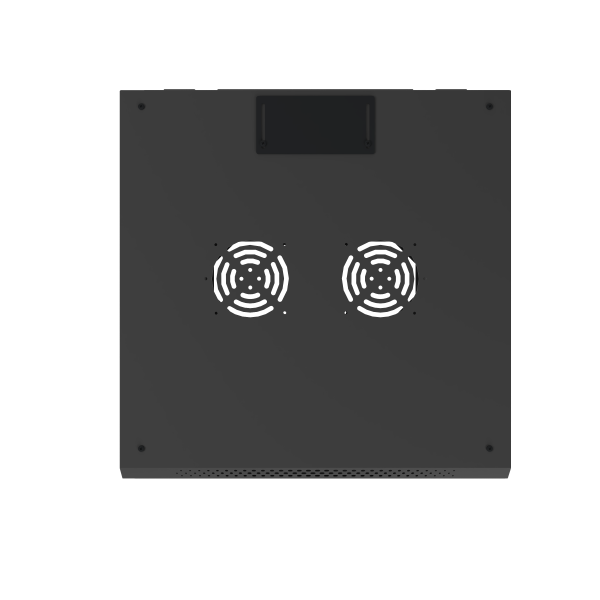

1	Top Cover	1	Piece	SPCC Cold-rolled Steel Sheet	Electrostatic Spraying
2	Base	1	Piece	SPCC Cold-rolled Steel Sheet	Electrostatic Spraying	---
3	Frame	2	Pieces	SPCC Cold-rolled Steel Sheet	Electrostatic Spraying	---
4	Front door	1	Piece	SPCC Cold-rolled Steel Sheet	Electrostatic Spraying	---
5	Side Door	2	Pieces	SPCC Cold-rolled Steel Sheet	Electrostatic Spraying	---
6	Back Panel	1	Piece	SPCC Cold-rolled Steel Sheet	Electrostatic Spraying	---

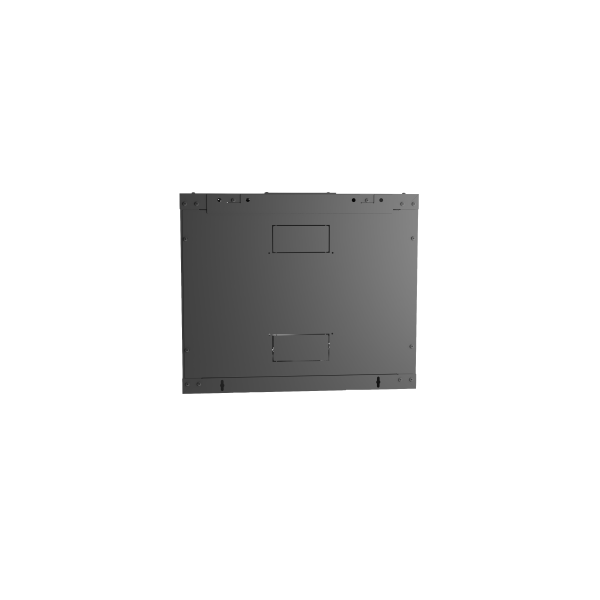

7	Wall Mounting Panel	1	Piece	SPCC Cold-rolled Steel Sheet	Electrostatic Spraying	---
8	19-inch rail	4	Pieces	Aluzinc	Aluzinc	---
9	Front Door Structure	Options: Cold-rolled steel frame with tempered glass door; Glued glass door; Mesh door; Solid iron door				---
10	Structure	Side frame structure, quick-opening side doors, removable rear door				---
11	Packaging Method	Can be flat-packed into one carton or shipped as a fully assembled unit				---

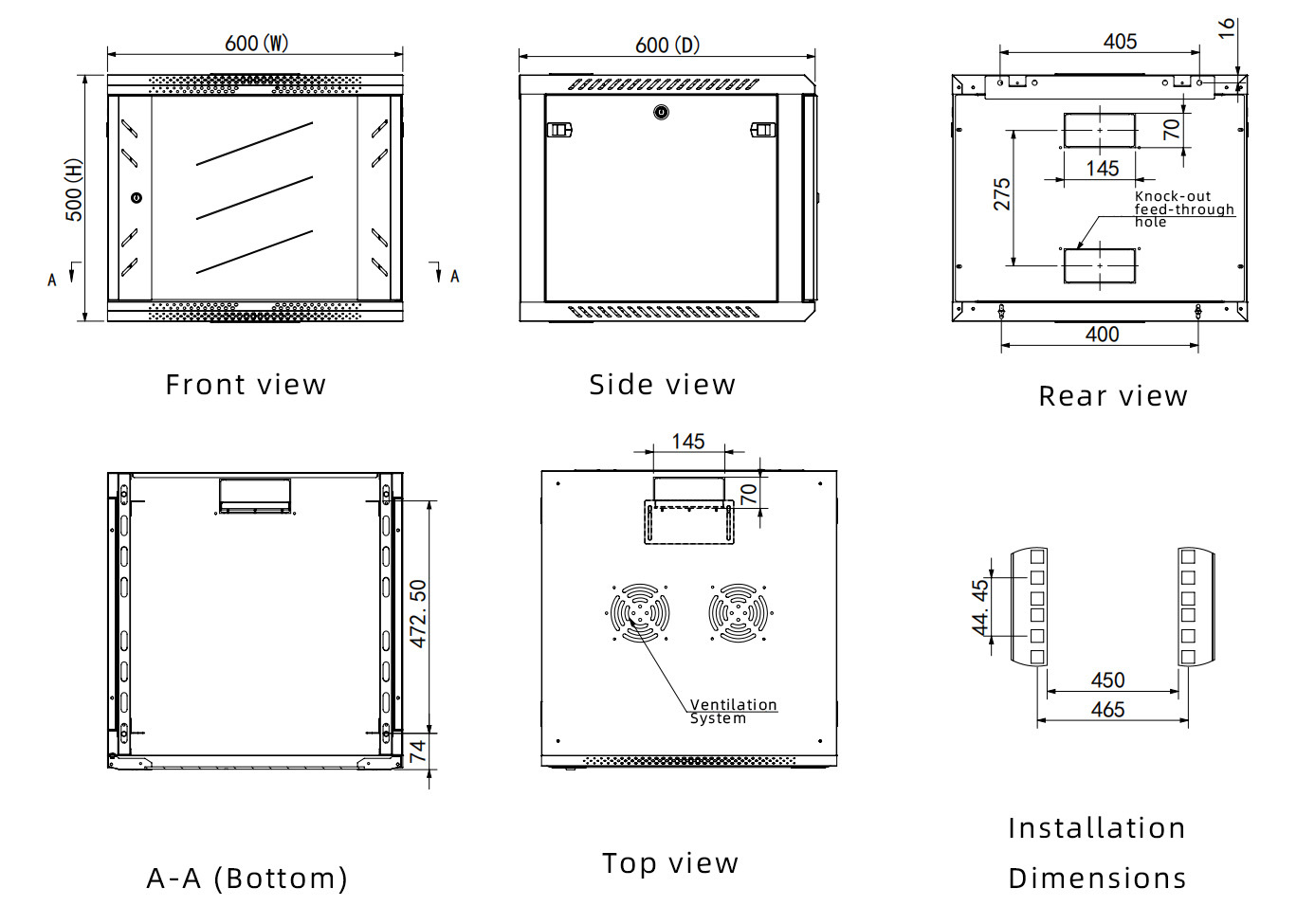

Order Code	Capacity U	Height (H) mm	Width (W) mm	Depth (D) mm	Fully-assembled Volume (m³)	Flat-packed Volume (m³)	Weight (kg)
WS■- 6404■□	4	280	600	450	0.08
WS■- 6604■□	4	280	600	600	0.11
WS■- 6406■□	6	368	600	450	0.11
WS■- 6606■□	6	368	600	600	0.14
WS■- 6409■□	9	501	600	450	0.14
WS■- 6609■□	9	501	600	600	0.19
WS■- 6412■□	12	635	600	450	0.18
WS■- 6612■□	12	635	600	600	0.24
WS■- 6415■□	15	769	600	450	0.22
WS■- 6615■□	15	769	600	600	0.29
WS■- 6418■□	18	901	600	450	0.26
WS■- 6618■□	18	904	600	600	0.34
WS■- 6422■□	22	1082	600	450	0.31
WS■- 6622■□	22	1082	600	600	0.41
WS■- 6427■□	27	1304	600	450	0.37
WS■- 6627■□	27	1304	600	600	0.49
WS	WS	WS	WS	Color	Color	Optional Accessories: Shelf, bracket, caster, foot, power supply, ground wire, etc.
Glued Door	Framed Door	Mesh Door	Steel Door	RAL9004	RAL7035
■	■	■	■	■	□
