GGJ Low-Voltage Capacitor Compensation Device
Product Details
Overview

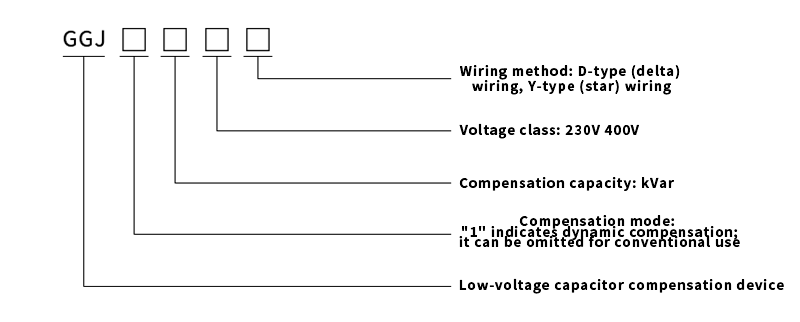

Model Definition
Operating Conditions
- Ambient temperature: -5°C ~ +40°C
- Ambient relative humidity: Not exceeding 90% (at 20°C)
- Altitude: Not exceeding 2000 meters
- Surrounding medium: No explosion hazards; no gases that can damage or corrode metals; no conductive dust; the installation site should not be subject to violent vibration, and should be protected from rain and snow erosion.
Product Features
- Strong universality: This compensation cabinet can be combined with various domestic cabinet bodies, such as MNS, GCK, GGD, etc.
- Flexible capacitor compensation combinations: Supports Y-type compensation, A-type compensation, and Y+A combined compensation modes.
- Diverse communication methods: Equipped with RS-232/485 communication interfaces, wireless data transmission modules, or DSHRS modules for long-distance communication.
- Accurate and safe control: Adopts voltage zero-crossing triggering; no inrush current during switching-in, and zero-crossing cutting-off to avoid high voltage during disconnection.
- Long service life: Under maintenance-free conditions, the service life can reach more than 100,000 hours.
Technical Parameters
|
Item |
Unit |
Parameter |
|
System Voltage |
V |
Below AC450 |
|
Switching Time |
ms |
t≤20 |
|
Inrush Current |
In |
<25 |
|
Rated Frequency |
Hz |
50±50% |
|
Sampling Current |
A |
0~5 |
|
Power Consumption |
W |
≤15 |
|
Sensitivity |
mA |
100 |
