Product Overview
The KVM-1 integrates an LED display, an ultra-thin keyboard, and a touchpad into a single 1U rack unit, featuring a drawer-style mounting design that effectively addresses space constraints. It can directly manage up to eight servers; by cascading additional KVM switches, the system can be expanded to support a maximum of 128 servers. Compared with conventional keyboard–monitor–mouse setups, it saves up to 85% of floor space and is equipped with a 17-inch LED display offering a maximum resolution of 1280×1024 at 60 Hz. The KVM-1 supports a wide range of hardware platforms and operating systems.
Product Features
- The 4-in-1 all-in-one device integrates the functions of a monitor, keyboard, mouse, and switch, allowing direct connection to up to 8 computers or servers.
- 17-inch LCD display that supports full DDC2B functionality.
- Auto-scan function: KVM automatically scans computers one by one.
- Each server can be named via the OSD visual control menu for easier management.
- No software installation required—simply use the [button], [OSD], [hotkey], or other methods to easily operate this device.

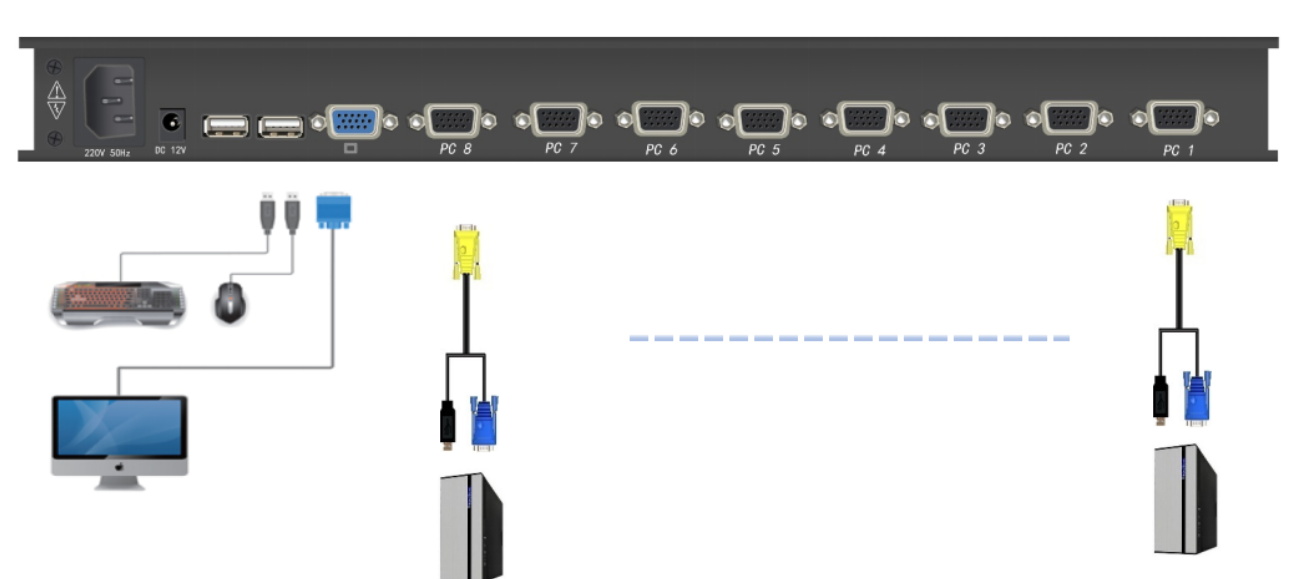

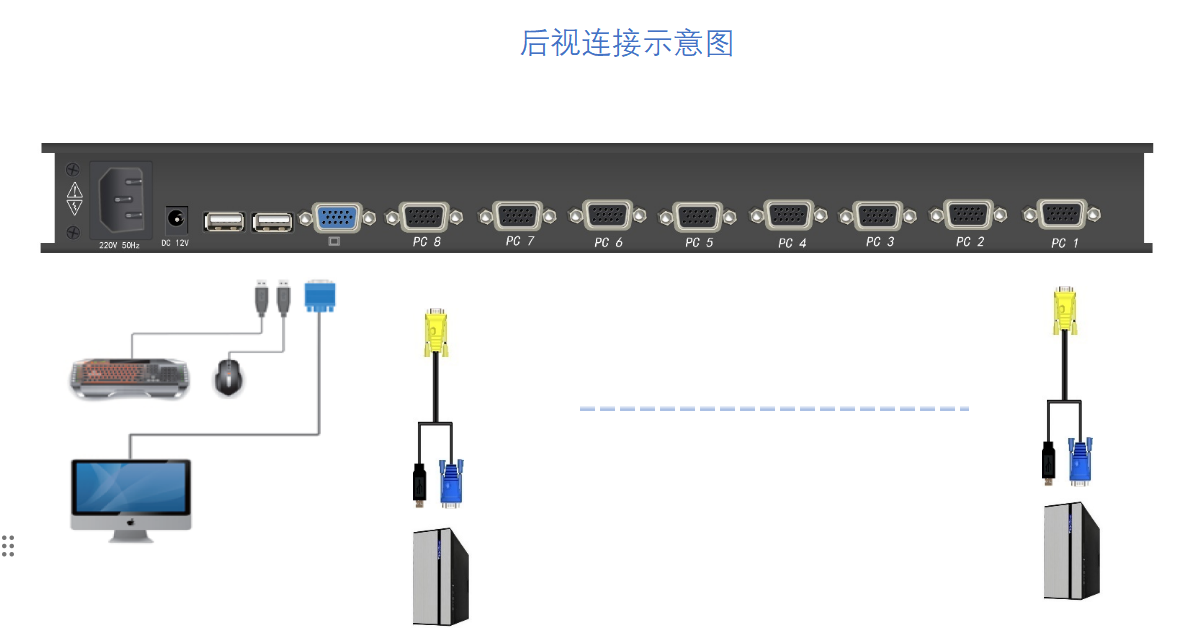

- Independent USB and video output ports allow you to connect an external keyboard, mouse, and monitor.
- Compatible with mainstream servers from Lenovo, Dawning, Inspur, Huawei, Baode HP, IBM, Dell, and Cisco.
- Hybrid connection design – suitable for USB interfaces, allowing flexible configuration based on actual needs.
- The pull-out installation design allows the length to be adjusted to fit various cabinet spaces, and the rails are equipped with an automatic locking mechanism.
- This device is compatible with DOS, Windows, Unix, Linux, SUN, and other operating systems.
- Plug-and-play: when adding or removing PCs and other devices, no power shutdown is required—simply connect directly to the computer or a KVM switch.
- Dual power input, featuring both 12V DC input and AC input options, with a screen that includes a flip‑style auto‑switch.
Accessories
|
Model |
Description |
Quantity |
|
FB-1001H-U |
1.8M, USB KVM signal cable |
8 |
|
Fixed ear mount |
|
2 |
|
Power cord |
|
1 |
|
*FB-1003H-U |
3M, USB KVM Signal Cable |
(Optional) |
|
*FB-1005H-U |
5M, USB KVM signal cable |
(Optional) |
Specifications and Parameters
| Category | Function | KVM-1 Parameters |
| Number of connections | Direct connection | 8 |
| Cascading | 128 | |
| Liquid crystal display | Display Type | a-Si TFT-LCD |
| Resolution | 1280 (RGB) × 1024 (SXGA) | |
| Visible area | 341.72 × 274.14 mm (H×V) | |
| Supports color | 16.7M (6-bit + Hi-FRC) | |
| Brightness | 250 cd/m² (Typ) | |
| Contrast | 1000:1 (Typ) | |
| Light Source Type | WLED | |
| Pixel Pitch (mm) | 0.264 × 0.264 (H × V) | |
| Viewing angle | 85/85/80/80 (Typ.)(CR≥10) | |
| Keyboard and mouse | Interface | USB |
| Keyboard Design | 105 keys (88-key main keyboard + 17-key independent numeric keypad) | |
| X/Y Resolution | >1000 dots per inch, (40 dots per mm) | |
| Power supply | Power Input (AC) | -100 ~240V (1×3‑Prong AC Outlet) |
| Power Input (DC) | 12V (DC 2.1 socket) | |
| Power Consumption (W) | 20W | |
| Interface | Connection Port | 8×HDB-15 female connector (black) |
| Control Port | 1×HDB-15 female connector (blue) / 1 * USB Type-A female connector | |
| Structure and Packaging | Shell color | Black, (customizable) |
| Shell material | Metal | |
| Gross weight / Net weight | 19kg/12kg | |
| Body dimensions (length × width × height) | 600mm × 485mm × 44mm | |
| Cabinet installation depth | 600mm–1000mm | |
| Environmental conditions | Storage temperature | 0–50 °C |
| Operating temperature | -20~60 ℃ | |
| Humidity | 0–80%, no condensation | |
| Package dimensions | Package dimensions (Length × Width × Height) | 72cm × 62cm × 17cm |
