Product Overview

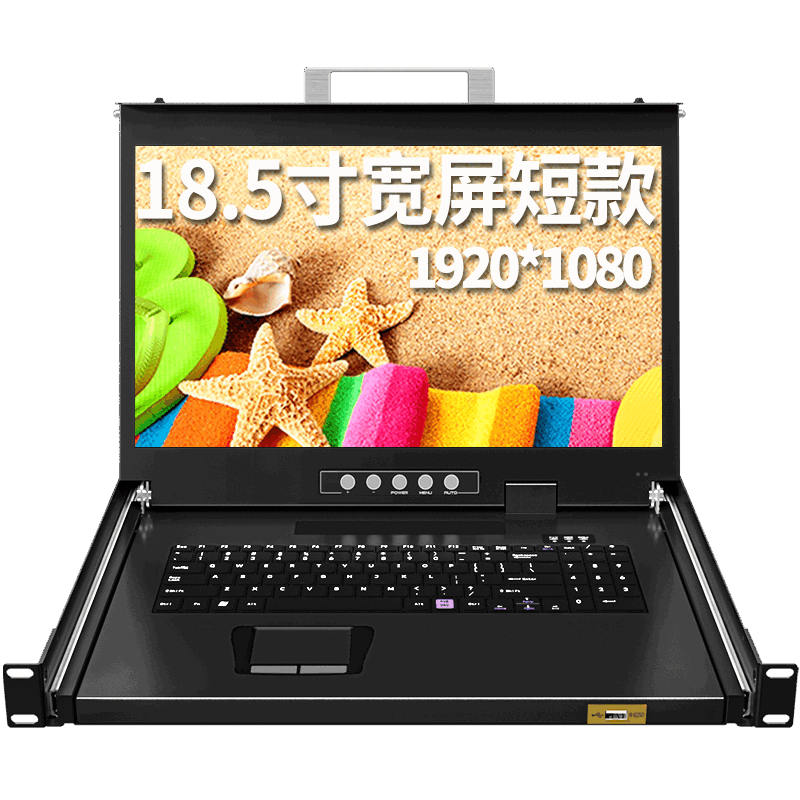

The KVM-2 integrates an LED display, an ultra‑thin keyboard, and a touchpad mouse, all housed within a 1U high unit and featuring a drawer-style installation. This design completely resolves space constraints. It can directly manage up to 8 servers; by cascading additional KVM switches, the system can be expanded to manage as many as 256 servers. Compared to standard keyboards, monitors, and mice, it saves 85% of space. It is equipped with an 18.5” LED display that supports resolutions up to 1920x1080 at 60Hz. The KVM-2 supports multiple hardware platforms and various operating systems.

Product Features

The 4-in-1 all-in-one device integrates the functions of a monitor, keyboard, mouse, and switch, allowing direct connection to up to 8 computers or servers.
18.5-inch LCD display that supports full DDC2B functionality.
The Auto-scan function enables the KVM to automatically scan computers one by one.
Each server can be named via the OSD visual control menu for easier management.
No software installation required—simply use the [button], [OSD], or [hotkey] to easily operate this device.

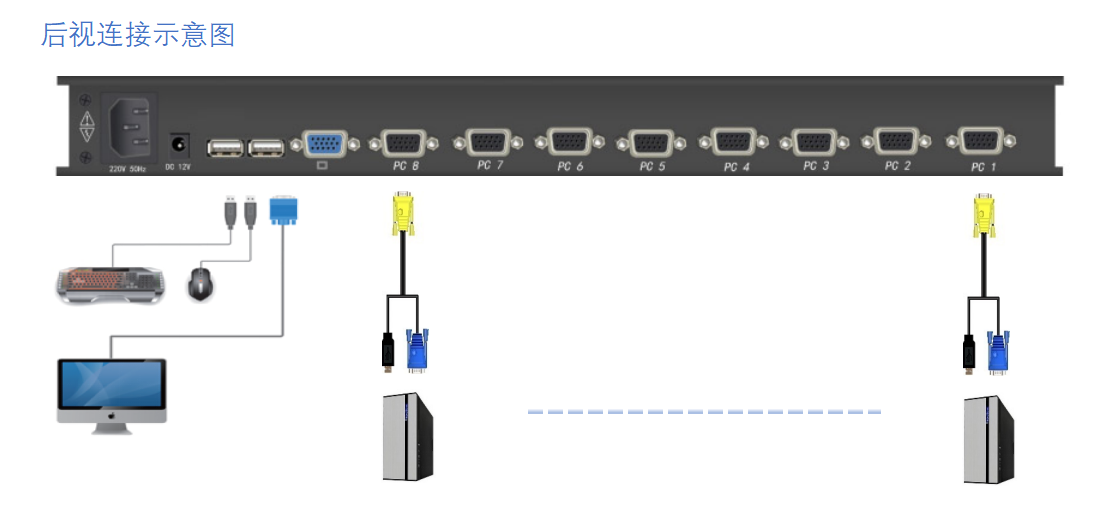

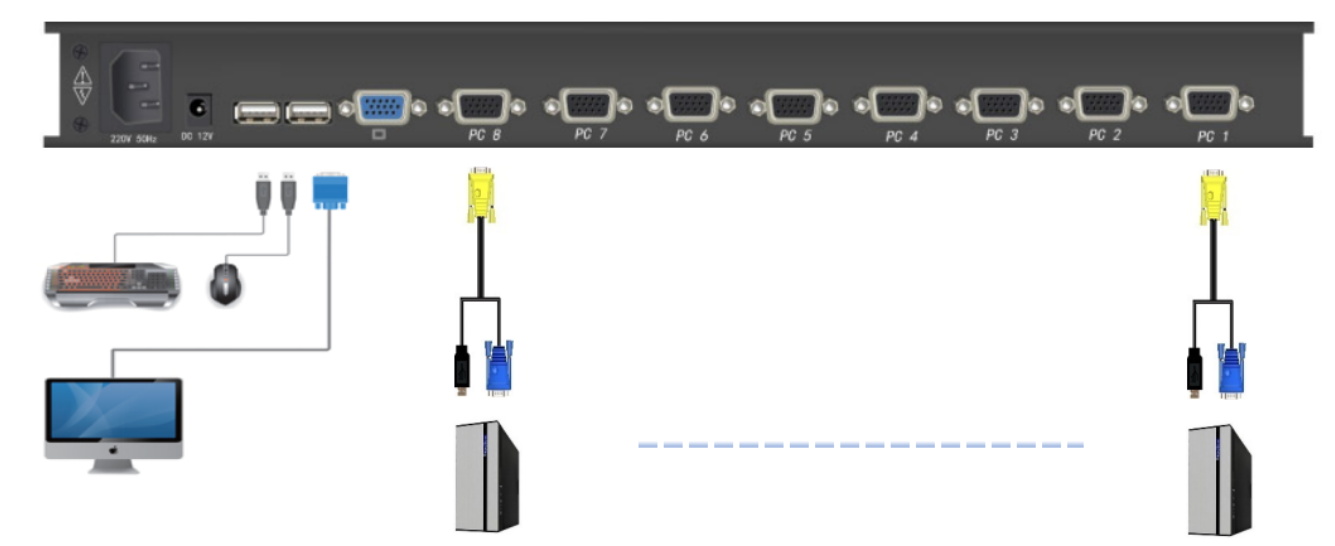

Independent USB and video output ports allow you to connect an external keyboard, mouse, and monitor.
Compatible with mainstream servers from Lenovo, Dawning, Inspur, Huawei, Baode HP, IBM, Dell, and Cisco.
The pull-out installation design allows the length to be adjusted to fit various cabinet spaces, and the rails are equipped with an automatic locking mechanism.
This device is compatible with DOS, Windows, Unix, Linux, SUN, and other operating systems.
Plug and play—when adding or removing devices such as PCs, there’s no need to power down; simply connect directly to your computer or KVM switch, and other devices.
Dual-power-mode input, featuring both 12V DC and AC power inputs, with a flip-up automatic power switch on the display.

Category	Function	KVM-2 Parameters
Number of connections	Direct connection	8
Number of connections	Cascading	256
Liquid crystal display	Display Type	a-Si TFT-LCD IPS
	Resolution	1920 (RGB) × 1080, FHD, 119 PPI
	Visible area	410.96(W)×232.04(H) mm
	Supports color	16.7M, 70% NTSC
	Brightness	250 cd/m² (Typ)
	Contrast	1000:1 (Typ)
	Light Source Type	WLED
	Pixel Pitch (mm)	0.17925 × 0.17925 (H × V) [141 PPI]
	Viewing angle	85/85/85/85 (Typ.)(CR≥10)
Keyboard and mouse	Interface	PS/2 to USB Adapter
	Keyboard Design	105 keys (88-key main keyboard + 17-key independent numeric keypad)
	X/Y resolution	>1000 dots per inch, (40 dots per mm)
Power supply	Power Input (AC)	-100 ~ -240V 50~60HZ
	Power Input (DC)	≤13W
	Power Consumption (W)	20W
Interface	Connection Port	16×HDB-15 Female Connector (Black)
Interface	Control Port	1×HDB-15 female connector (blue) / 1 * USB Type-A female connector
Structure and Packaging	Shell color	Black, (customizable)
	Shell Material	Metal
	Gross weight / Net weight	17kg/10kg
	Body dimensions (length × width × height)	510mm × 485mm × 44mm
	Cabinet installation depth	600mm–1000mm
Environmental conditions	Storage temperature	0–50 °C
	Operating temperature	-20~60 ℃
	Humidity	0–80%, no condensation
Package dimensions	Package dimensions (Length × Width × Height)	65 cm × 61 cm × 17 cm
