Cat5e 4-Pair Unshielded Cable
Product Details

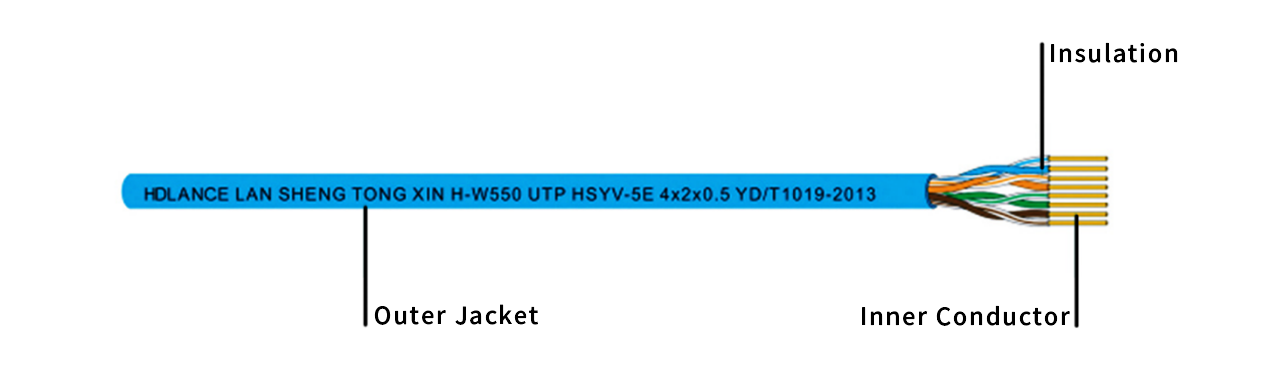

Cat5e 4-pair Unshielded Twisted Pair (UTP) Cable
Product Applications
This Cat.5e data copper cable features high-quality electrical and mechanical performance. It is a structured cabling data transmission cable, used for transmitting digital, voice, data, and video signals.
It is especially suitable for all Class D links and Cat.5e applications, including ISDN, 10 Mbps Ethernet, 100 Mbps Fast Ethernet, Gigabit Ethernet, 4/16 Mbit/s Token Ring, TP-PMD/TP-DDI 125 Mbit/s, and ATM 155 Mbit/s.
Product Features
- Certified by CE, ROHS, FCC, REACH, and China's Ministry of Information Industry.
- Consistent insulation provides lower propagation delay skew.
- Small outer diameter, not easy to twist or get stuck during installation.
- Bandwidth: ≥ 100MHz.
- Conductor material and diameter: Oxygen-free round copper wire (purity 99.99%), 24AWG, 0.5±0.01mm.
- Jacket materials: Multiple options available, including Polyvinyl Chloride (PVC), Polyethylene (PE), and Low Smoke Zero Halogen (WDZB1).
Performance
Electrical Performance |
Physical Performance |
||
|
Impedance |
100±15Ω (f=1-100MHz) |
Outer Diameter |
5.1±0.2mm |
|
Working Capacitance |
≤5.6nF/100m |
Fixed Bending Radius |
≥21mm |
|
Nominal Velocity of Propagation |
68% |
Pulling Bending Radius |
≥42mm |
|
Insulation Resistance |
≥5000MΩ/km |
Tensile Strength |
≤82N |
|
DC Resistance per Conductor |
≤9.5Ω/100m |
- |
- |
Ordering Information
|
Product Number |
Product Description |
Color |
Unit |
|
F-W550 |
Cat5e 4-Pair Unshielded Cable (PVC) |
Red, Yellow, Blue, Brown, Gray |
305m/Box |
|
F-W550D |
Cat5e 4-Pair Unshielded Cable (LSZH) |
Purple |
305m/Box |
|
F-W557 |
Outdoor Cat5e 4-Pair Unshielded Cable |
Black |
305m/Box |
|
F-G550 |
Cat5e 4-Pair Unshielded Cable (PVC) |
Purple, Off-White, Aqua Green |
305m/Box |
|
F-G557 |
Outdoor Cat5e 4-Pair Unshielded Cable |
Black |
305m/Reel |
|
F-W550ZR |
Cat5e Flame-Retardant 4-Pair Unshielded Cable (CM) |
Gray |
305m/Box |
|
F-W550CMR |
Cat5e Flame-Retardant 4-Pair Unshielded Cable (CMR) |
Gray |
305m/Box |
