Category
Product Categories
Cat6A 4-Pair Unshielded Cable
Product Details
Category 6A 4-Pair Unshielded Cable
Product Applications
- Transmits voice, data, and video signals.
- Suitable for all EA - grade link applications, including ISDN, 10BASE - T Ethernet, 100BASE - T Fast Ethernet, Gigabit Ethernet, 10 - Gigabit Ethernet, 4/16 Mbit/s Token Ring, TP - PMD/TPDDI 125Mbit/s, and ATM 155Mbit/s.
Product Features
- It is a Cat.6A data copper cable with high - quality electrical and mechanical performance, meeting high - end requirements.
- Certified by CE, ROHS, FCC, REACH and the domestic Ministry of Information Industry.

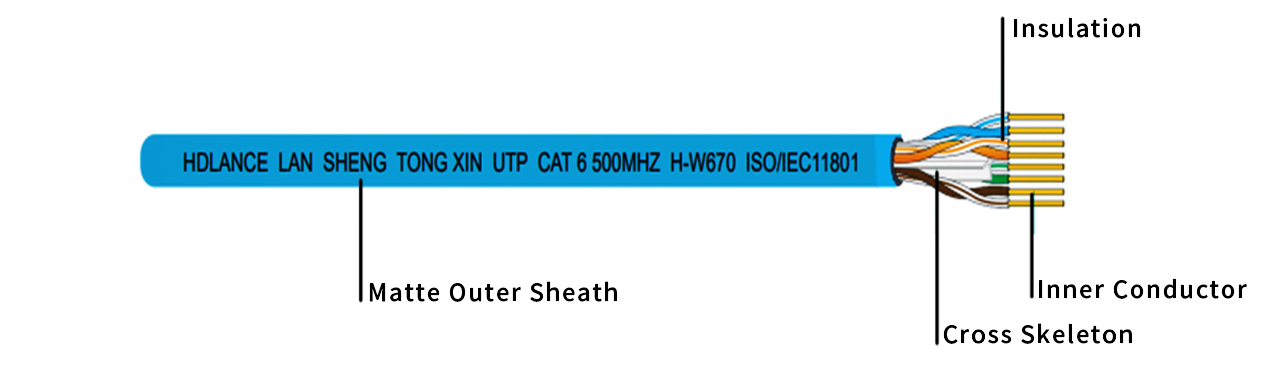

- Adopts a unique cross skeleton, which greatly reduces internal crosstalk and maintains stable performance.
- High - quality matte PVC material can reduce external interference and ensure stable performance.
- Bandwidth: ≥ 500MHz.
- Conductor material and diameter: Oxygen - free round copper wire (purity 99.99%), 23AWG, 0.57±0.02mm.
- The sheath is made of matte material.
Performance
|
Electrical Performance |
Physical Performance |
||
|
Impedance |
(f=1-250MHz) 100±15% Ω |
Outer Walnut Diameter |
6.2±0.2mm |
|
Working Capacitance |
≤5.6nF/100m |
Bending Radius When Fixed |
≥31mm |
|
Rated Transmission Rate |
68% |
Bending Radius When Pulling |
≥62mm |
|
Insulation Resistance |
≥5000MΩ/km |
Tensile Strength |
≤91N |
|
DC Resistance of Single Conductor |
≤7.5Ω/100m |
– |
– |
Ordering Information
|
Product Number |
Product Description |
Color |
Unit |
|
F-W750 |
Category 6A 4-Pair Unshielded Cable |
Matte |
305 Meters/Reel |
