Cat6A 4-Pair Unshielded Cable (OFC)
Product Details
Category 6A 4-Pair Unshielded Cable
Product Applications
- Transmits voice, data, and video signals.
- Suitable for all EA - grade link applications, including ISDN, 10BASE - T Ethernet, 100BASE - T Fast Ethernet, Gigabit Ethernet, 10 - Gigabit Ethernet, 4/16 Mbit/s Token Ring, TP - PMD/TPDDI 125Mbit/s, and ATM 155Mbit/s.
Product Features
- It is a Cat.6A data copper cable with high - quality electrical and mechanical performance, meeting high - end requirements.
- Certified by CE, ROHS, FCC, REACH and the domestic Ministry of Information Industry.
- Adopts a unique cross skeleton, which greatly reduces internal crosstalk and maintains stable performance.
- The inner wall of the sheath adopts a serrated structure, which can reduce external interference and ensure stable performance.
- Bandwidth: ≥ 500MHz.
- Conductor material and diameter: Oxygen - free round copper wire (purity 99.99%), 23AWG, 0.57±0.02mm.

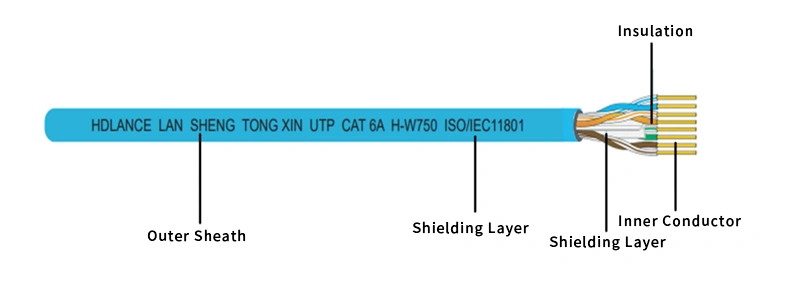

- 8 - core twisted pair, with a cross - skeleton support structure inside and a tear cord.
- Transmission rate: 10Gbps.
- Sheath materials: Polyvinyl Chloride (PVC) / Polyethylene (PE) / Low Smoke Zero Halogen (WDZB1), etc., multiple options available.

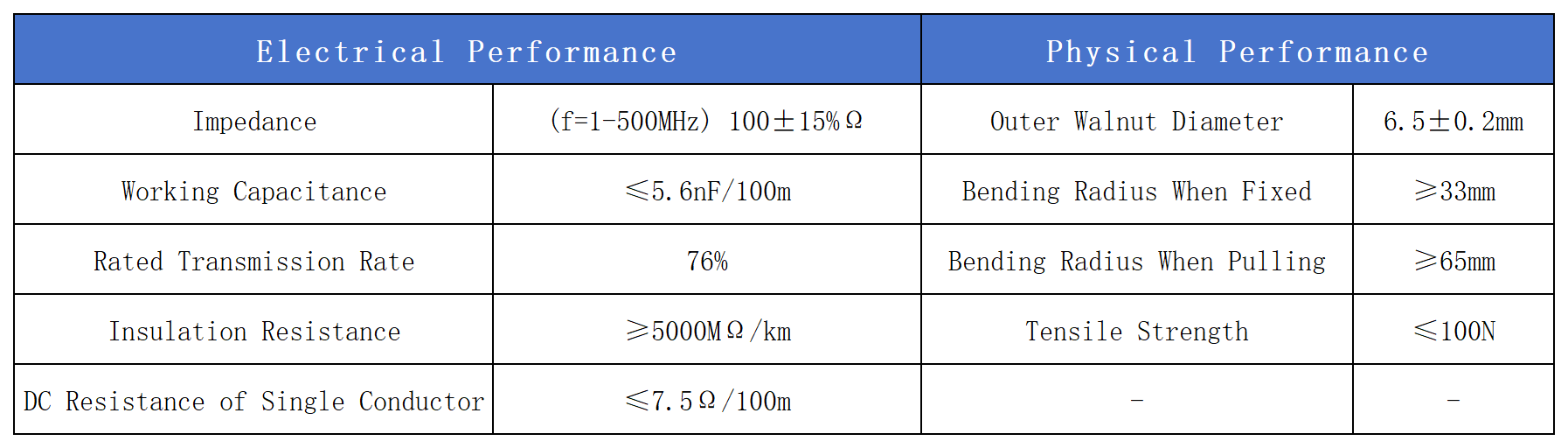

Performance

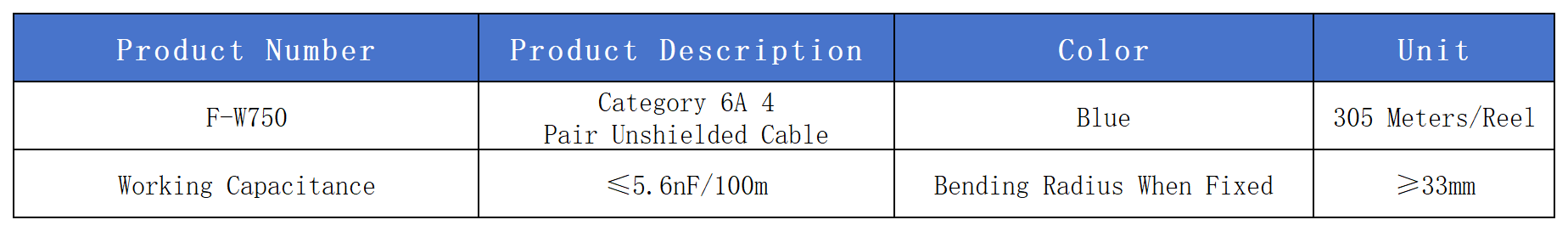

Ordering Information
