Unshielded Patch Panel 2
Product Details
Product Applications
- Transmits voice, data, images, multimedia, and other types of information.
- Compatible with ISDN, 10 Mbps Ethernet, 100 Mbps Fast Ethernet, Gigabit Ethernet, 4/16 Mbit/s Token Ring, TP-PMD/TP-DDI 125 Mbit/s, and ATM 155 Mbit/s.
- High-density design: Saves half the installation space.
- Adopts patented PCB demagnetization technology to enhance product performance.
Product Features
- Integrated structure of plastic front panel + steel base plate: Ensures the product’s mechanical performance.
- Dust covers are equipped on module rear bases: Effectively prevents dust accumulation from affecting link performance.
- Replaceable labels: Simplify construction and maintenance.
- IDC terminals: Phosphor bronze, compatible with 22-26AWG conductors.
- Insertion/extraction cycles: ≥ 800.
- Termination cycles: ≥ 250.

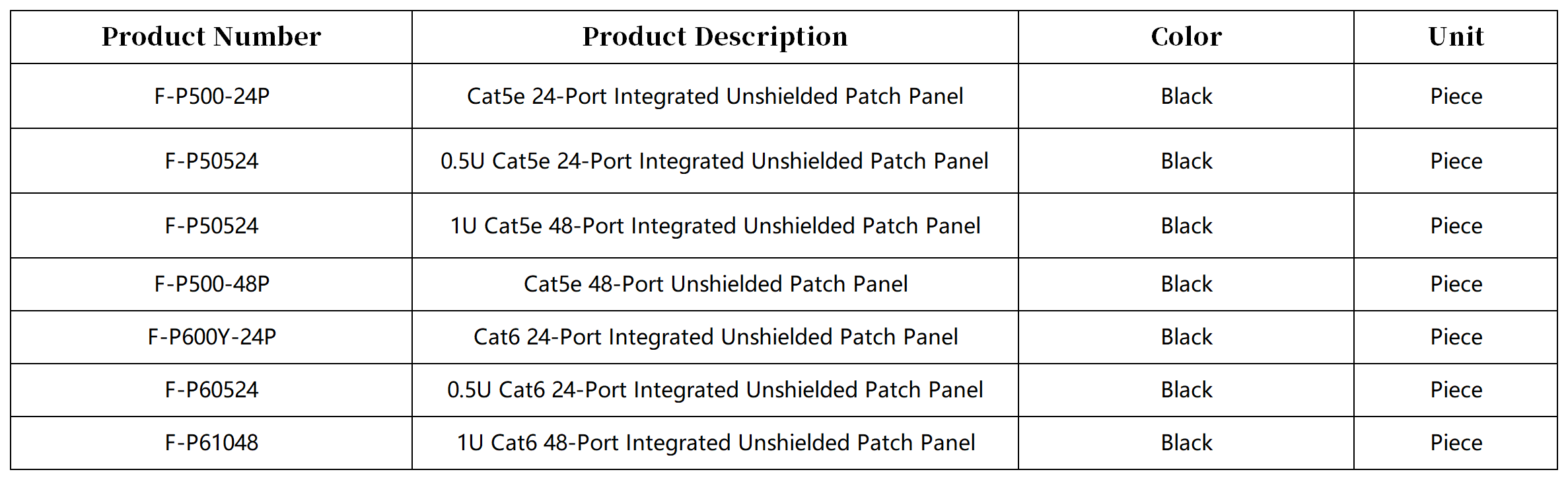

Ordering Information
