Shielded Patch Panel 2
Product Details
Product Applications
- Transmits voice, data, images, multimedia, and other information.
- Compatible with ISDN, 10 Mbps Ethernet, 100 Mbps Fast Ethernet, Gigabit Ethernet, 4/16 Mbit/s Token Ring, TP-PMD/TP-DDI 125 Mbit/s, and ATM 155 Mbit/s.
Product Features
- Adopts a metal frame hollow plate structure to ensure higher mechanical strength of the product.
- Features a modular shielding design with effective dust protection; the integrated grounding kit ensures reliable grounding.
- Uses a card slot modular design for easy operation by maintenance personnel: The installed modules are detachable—they can be individually terminated and then inserted into the panel. If a fault occurs, only the problematic module needs to be removed (or replaced), without affecting the termination or normal operation of other modules.
- Includes 24 Class 6A shielded modules.
- Gold pins: Phosphor bronze with gold plating.
- IDC terminals: Phosphor bronze.
- Mounting plate: Cold-rolled steel sheet.
- Plug-and-socket mating cycles: ≥ 800.
- Wire termination cycles: ≥ 250.

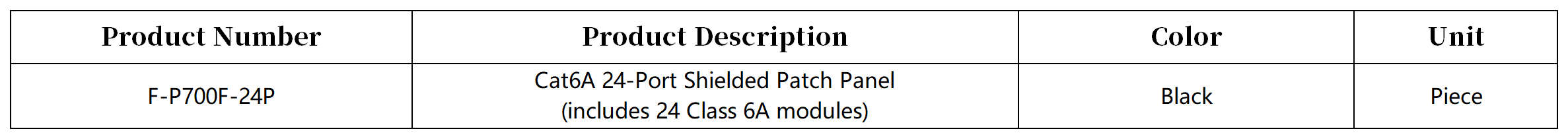

Ordering Information
