Fully support all high-speed applications in data, voice, communication, multimedia, and other fields.

3μm and 50μm gold-plated three-prong contacts, ensuring excellent electrical conductivity.
Contact resistance: Not exceeding 3 milliohms.
Insulation resistance: ≥500 MΩ (megohms) at 1000V DC per minute.
Compliant with T568A and T568B wiring standards.
Suitable for on-site termination in equipment rooms or horizontal subsystems.
Shell material: High-density polyethylene (HDPE), available in no fewer than three colors to facilitate effective differentiation between network, monitoring, internal network, and external network.
Optional RJ45 connectors with unbreakable plastic latches.

Ordering Information

Product Code	Product Description	Color	Unit
H-S3030	Telephone RJ45 connectors	Transparent	100pcs/Box

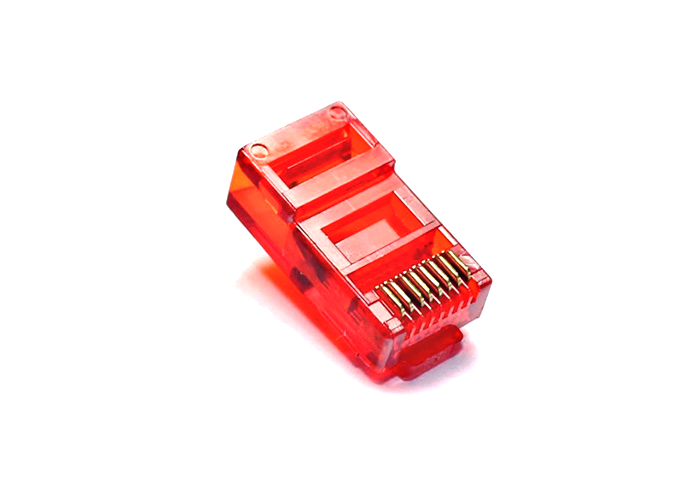

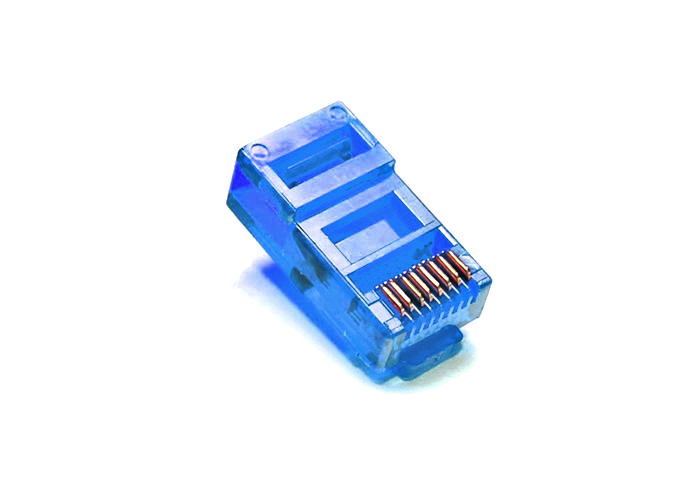

H-S5030	Cat5e RJ45 connectors (3μm Gold-Plated)	Transparent, Red, Yellow, Blue	100pcs/Box
H-S5030-1236	Cat5e 4-Core Dedicated RJ45 connectors	Transparent	100pcs/Box
H-S5030-50	Cat5e RJ45 connectors (50μm Gold-Plated)	Transparent	100pcs/Can
H-S5030K	Cat5e RJ45 connectors (Unbreakable Latch)	Transparent	100pcs/Can
H-S5030T	Cat5e RJ45 connector Kit (Including Molded Boots)	Transparent	50sets/Box
H-S5030F	Cat5e Shielded RJ45 connectors	Metallic	100pcs/Box
H-S6030	Cat6 RJ45 connectors	Transparent, Blue	100pcs/Box
H-S6030T	Cat6 RJ45 connector Kit (Including Molded Boots)	Transparent	50sets/Box
H-S6030F	Cat6 Shielded RJ45 connectors	Metallic	100pcs/Box
H-S7030U	Cat6A Unshielded RJ45 connectors	Transparent	50pcs/Box
H-S7030	Cat7 Shielded RJ45 connectors	Metallic	50pcs/Can
H-S5030	Cat5e RJ45 connectors (-3μm Gold-Plated)	Transparent	100pcs/Box
H-S6030	Cat6 RJ45 connectors (-3μm Gold-Plated)	Transparent	100pcs/Box
