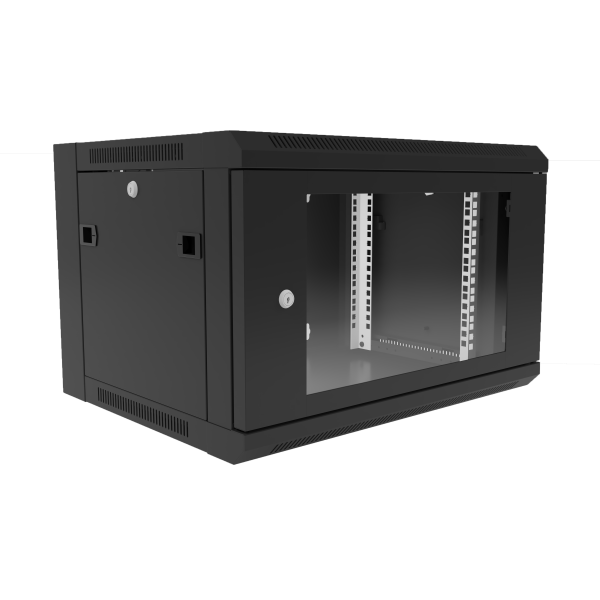

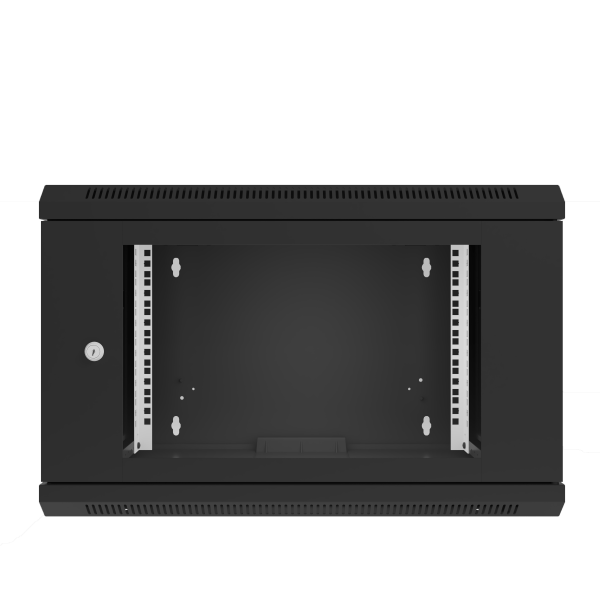

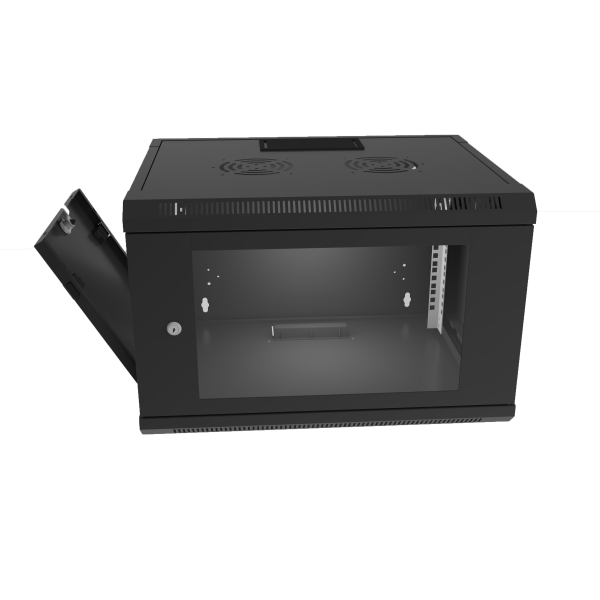

Standard 19-inch design, modular construction; shipped either fully assembled or flat-packed

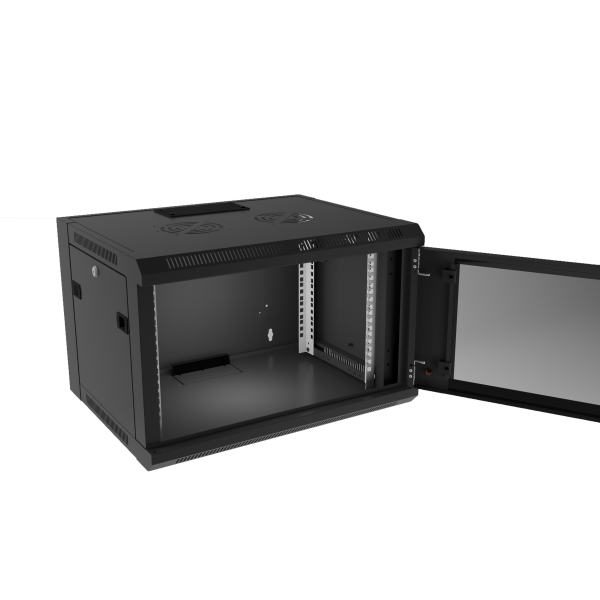

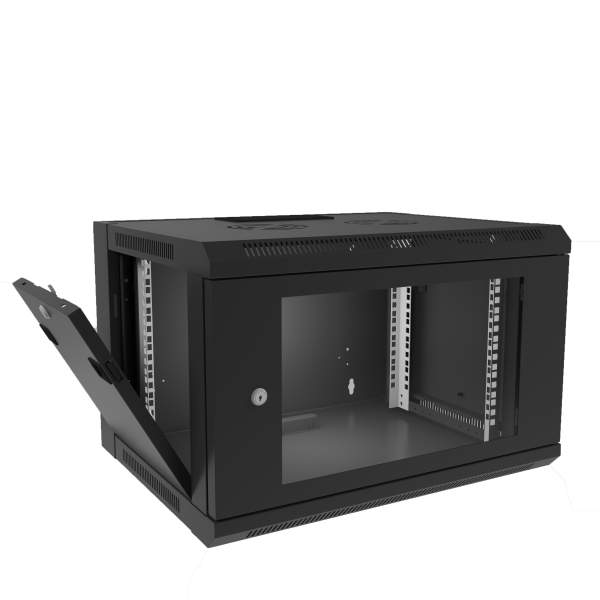

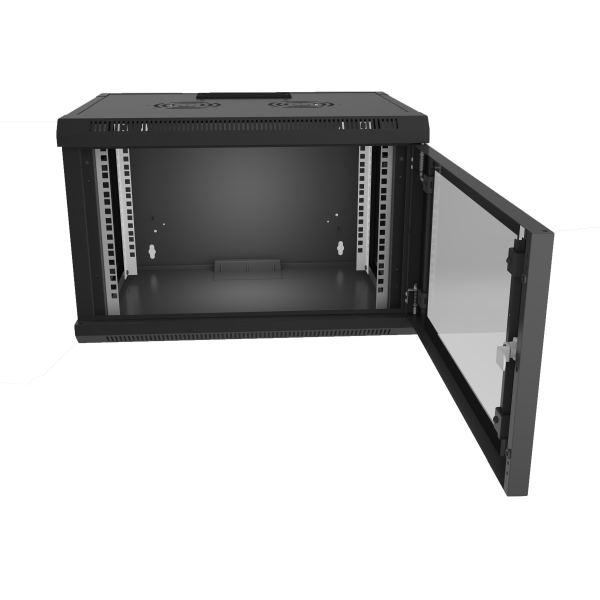

Front door opens ≥180°, optional tempered glass door with fixing blocks: tempered glass can be easily replaced if broken; full-frame structure with quick-release side doors; six-sided panels for easy installation and maintenance;

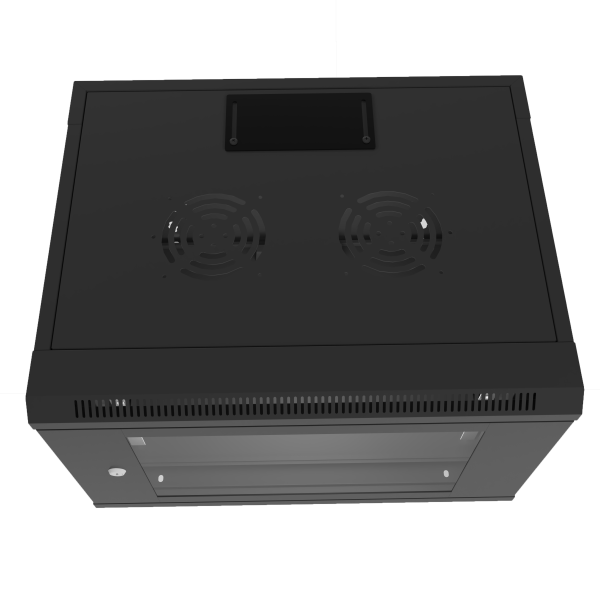

Multiple cable routing channels in top and bottom covers, and rear panel
Wall-mounted/floor-standing installation options available; wall plate mounting supported. Feet & casters optional for floor-standing setups.
Optional Accessories: Fan unit, power supply, shelf, bracket, etc.

19-inch Rail: Aluzinc or electrophoretic coated; other components: SPCC premium cold-rolled steel sheet
Thickness: 19-inch rail 1.5mm, other components 0.8mm

Surface Treatment

Degreasing, passivation, pure water rinsing, electrophoretic coating or electrostatic spraying
Protection Rating: IP20
Load Capacity: Static load 60KG

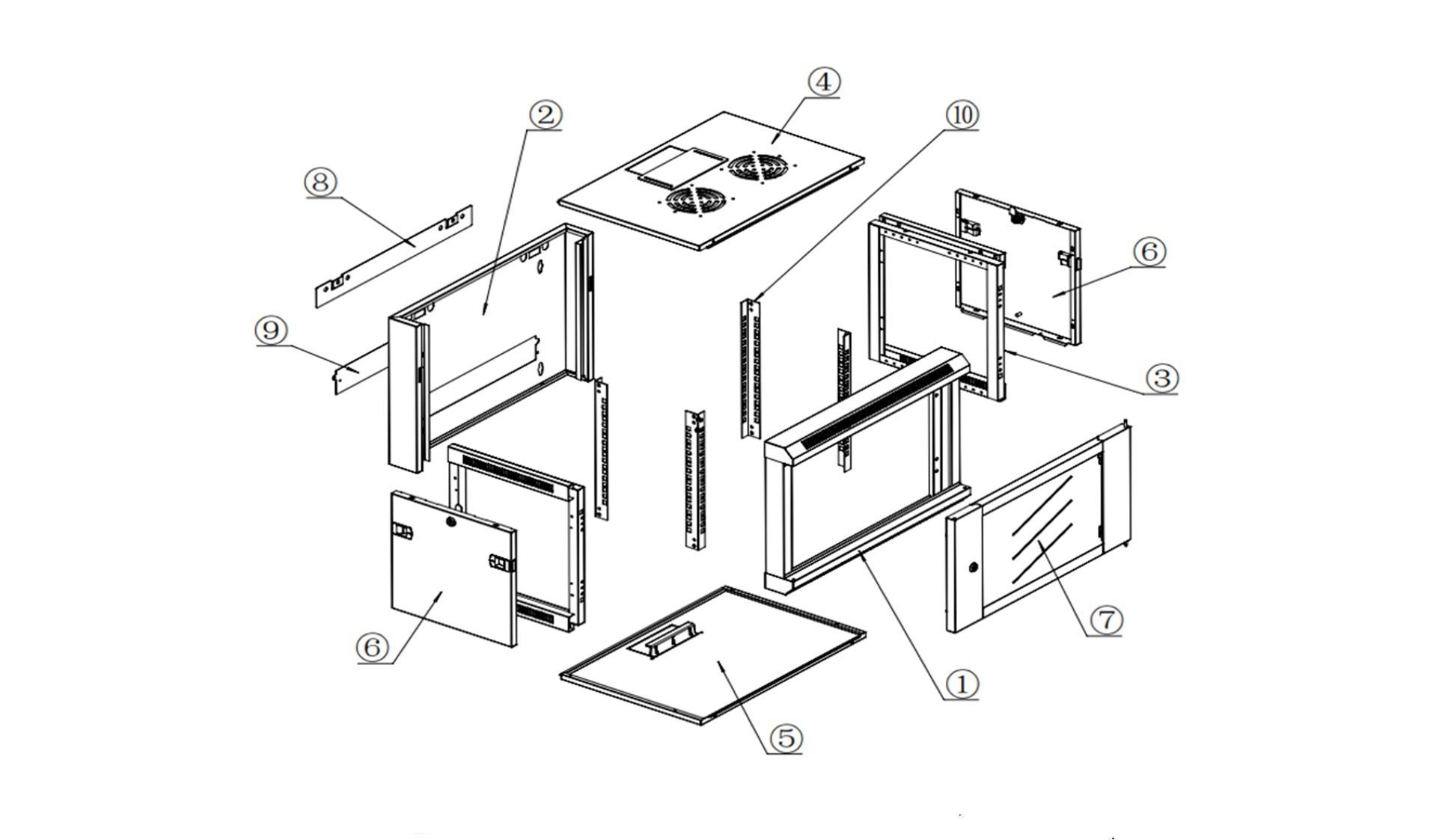

No.	Description	Quantity	Unit	Material	Surface Treatment	Remarks
1	Front Frame	1	Piece	SPCC Cold-rolled Steel Sheet	Electrostatic Spraying	---
2	Rear Frame	1	Piece	SPCC Cold-rolled Steel Sheet	Electrostatic Spraying	---
3	Side Frame	2	Pcs	SPCC Cold-rolled Steel Sheet	Electrostatic Spraying	---
4	Top Cover	1	Piece	SPCC Cold-rolled Steel Sheet	Electrostatic Spraying	---
5	Bottom Cover	1	Piece	SPCC Cold-rolled Steel Sheet	Electrostatic Spraying	---

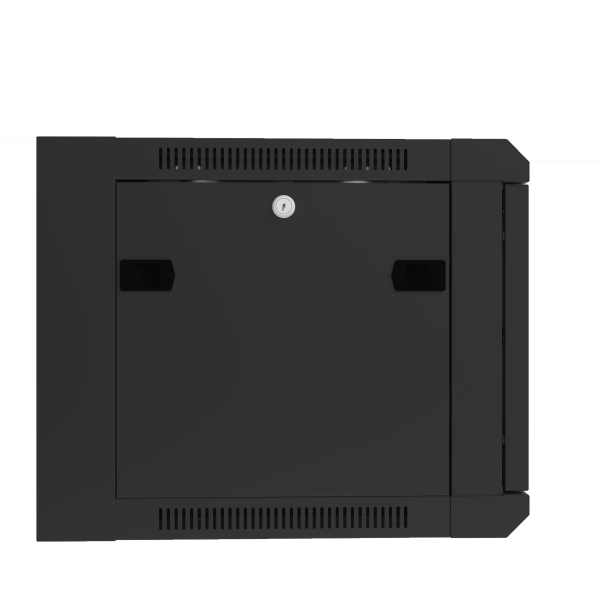

6	Side Door	2	Pieces	SPCC Cold-rolled Steel Sheet	Electrostatic Spraying	---
7	Front Door	1	Piece	Tempered Glass	Electrostatic Spraying	---

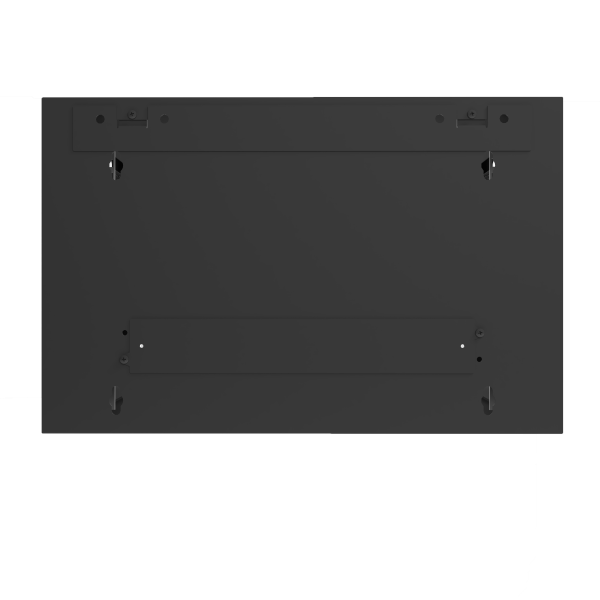

8	Wall Mounting Panel	1	Piece	SPCC Cold-rolled Steel Sheet	Electrostatic Spraying

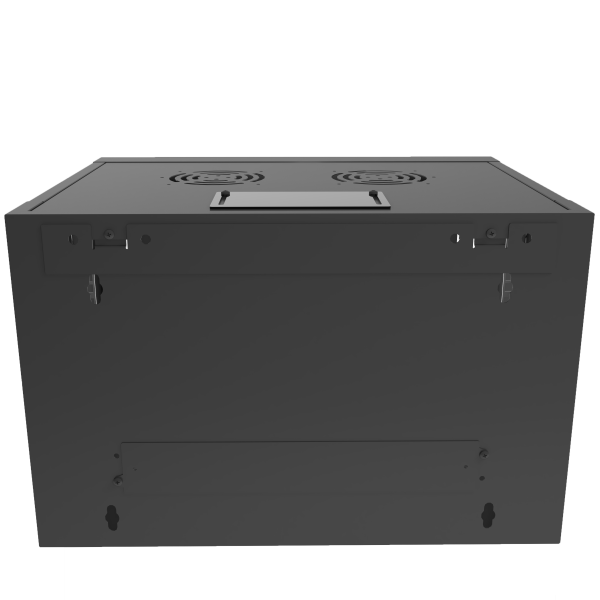

9	Rear Panel	2	Piece	SPCC Cold-rolled Steel Sheet	Electrostatic spraying
10	19-inch rail	4	pieces	Aluzinc	Aluzinc	--
11	Front Door Structure	Options: Cold-rolled steel frame with tempered glass door; Glued glass door; Mesh door; Steel door				---
12	Structure	Full-frame construction, quick-opening side door, Six cover panels are detachable				---
13	Packaging Method	Can be flat-packed into one carton or shipped as a fully assembled unit				---

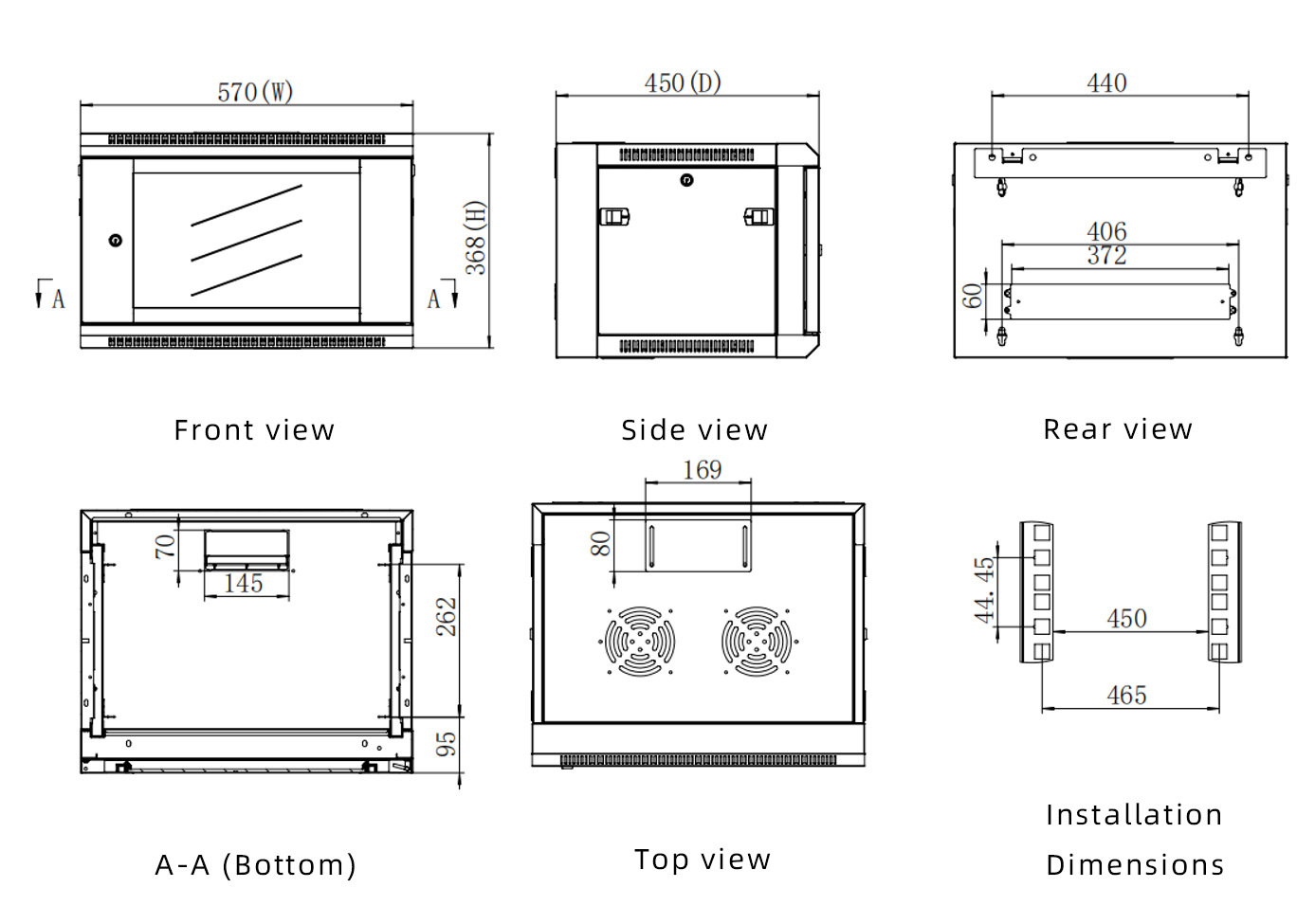

Order Code	Capacity U	Height (H) mm	Width (W) mm	Depth (D) mm	Fully-assembled Volume (m³)	Flat-packed Volume (m³)	Weight (kg)
W5■- 5404■□	4	280	570	450	0.08
W5■- 5604■□	4	280	570	600	0.10
W5■- 5406■□	6	368	570	450	0.10
W5■- 5606■□	6	368	570	600	0.13
W5■-5409■□	9	501	570	450	0.14
W5■- 5609■□	9	501	570	600	0.18
W5■- 5412■□	12	635	570	450	0.17
W5■- 5612■□	12	635	570	600	0.23
W5■- 5415■□	15	769	570	450	0.21
W5■- 5615■□	15	769	570	600	0.28
W5■- 5418■□	18	901	570	450	0.24
W5■- 5618■□	18	901	570	600	0.32
W5	W5	W5	W5	Color	Color	Optional accessories: Shelf, bracket, power supply, grounding wire, etc.
Glued Door	Framed Door	Mesh Door	Steel Door	RAL9004	RAL7035
■	■	■	■	■	□
