Indoor Optical Cable
Product Details

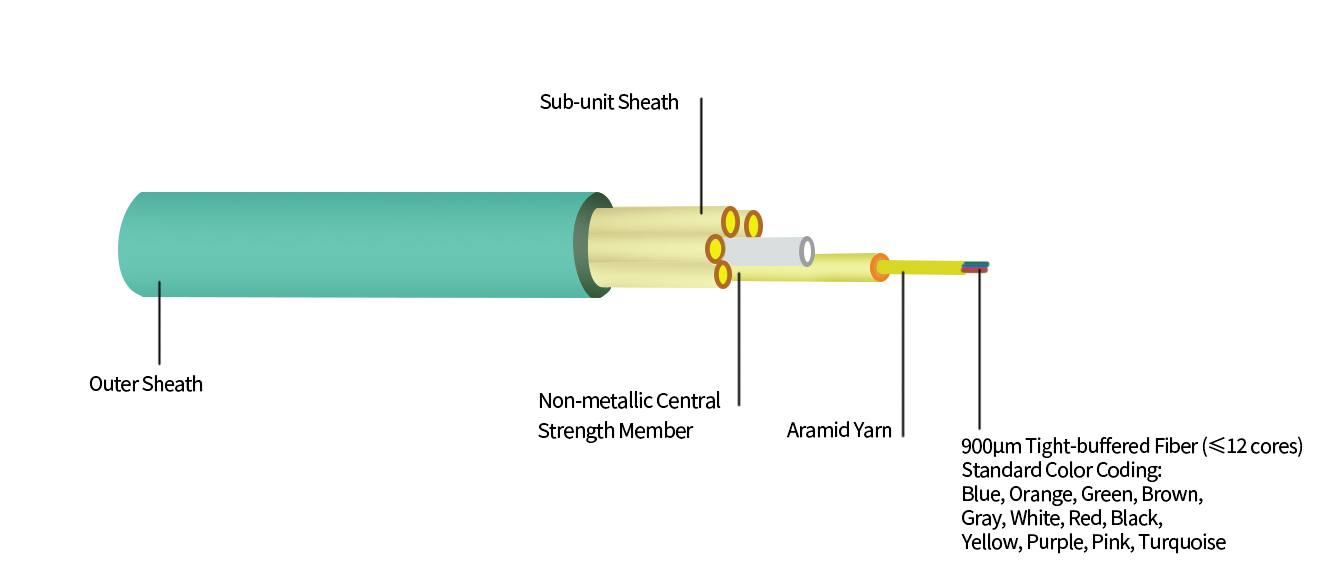

Indoor Optical Cable
Product Applications
- Used for optical interconnections in optical communication equipment rooms, optical distribution frames (ODF), as well as optical instruments and equipment.
- Suitable for vertical and horizontal cabling inside buildings.
Product Features
- Excellent mechanical performance and temperature resistance;
- No grease filling inside the cable, allowing easy handling and installation without contaminating the construction site;
- Outer sheath materials provide corrosion resistance, water resistance, UV resistance, flame retardancy, and environmental protection;
- Tight-buffered fibers offer good flame-retardant properties and excellent resistance to bending and torsion.
Performance
|
Electrical Performance |
Physical Performance |
Environmental Conditions |
||||||||
|
Specifications |
B1 (9/125m) Ala,A1b(50/125 um, |
Allowable Tensile Force |
Allowable Crushing Force |
Bending Radius |
Storage Temperature |
-20℃ ~ +70℃ |
||||
|
Attenuation |
Single Mode |
@1310 ≤ 0.45; |
Long-Term |
200N (≤12 cores); 400N (>12 cores) |
Long-Term |
300N/100mm |
Dynamic |
20×D (D: Optical Cable Diameter) |
Installation Temperature |
-20℃ ~ +60℃ |
|
Multimode |
@850 ≤ 3.5; @1300 ≤ 1.5 |
Short-Term |
660N (≤12 cores); 1320N (>12 cores) |
Short-Term |
1000N/100mm |
Static |
10×D (D: Optical Cable Diameter) |
Operating Temperature |
-20℃ ~ +70℃ |
|
|
OM3 |
@850 ≤ 2.5; @1300 ≤ 0.7 |
|
||||||||
Order Information
|
Product Code |
Product Description |
Color |
Unit |
|
HD-GSN-4B |
Indoor 4-core Single-mode Bundled Cable |
Yellow |
2 km/reel |
|
HD-GSN-4A |
Indoor 4-core Multimode Bundled Cable |
Orange |
2 km/reel |
|
HD-WGN150-4 |
Indoor 4-core OM3-150 Bundled Cable |
Aquamarine |
2 km/reel |
