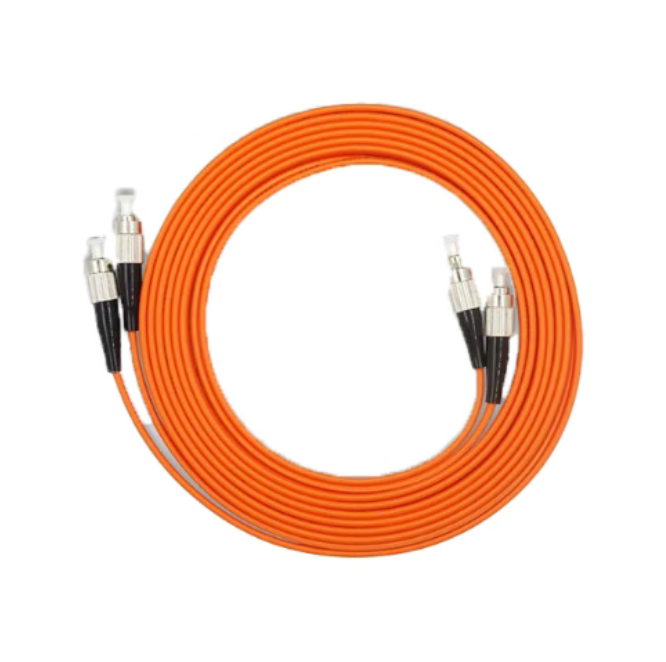

Optical Pigtails and Fiber Patch Cords
Product Details
Product Applications
Telecommunications industry; internal local area networks (LANs); FTTH (Fiber to the Home) connections; fiber optic sensor connections; test instrument connections.
Features of Armored Fiber Optic patch cords
- High tensile strength, crush resistance, bend resistance, repeated bending resistance, and rodent resistance;
- Excellent flexibility, with an outer diameter comparable to standard patch cords, saving installation space;
- Easy to deploy, making cabling and installation more efficient.
Product Features
- Low insertion loss and low return loss;
- Available with multiple connector types, supporting single-mode and multimode fibers, and various ferrule end-face types including UPC and APC;
- High-precision fiber end-face polishing, ensuring excellent optical performance and connection stability.
Technical Specifications
|
Repeatability |
≥1000 cycles |
|
Insertion Loss |
SM ≤0.3dB, M≤ 0.2dB |
|
Maximum Return Loss |
≥50dB |
Ordering Information
|
Product Number |
Optical Grade |
Connector Type |
|
FD |
9: Single-mode |
6W: FC |
|
6: Multi-mode |
8W: ST |
|
|
3W: SC |
||
|
W6: OM3 |
9W: LC |
|
Product Number |
Optical Grade |
A-End Connector Type |
B-End Connector Type |
|
FD |
9: Single-Mode |
6W: FC |
6W: FC |
|
6: Multimode |
8W: ST |
8W: ST |
|
|
3W: SC |
3W: SC |
||
|
W6:0M3 |
9W:LC |
9W:LC |
Order Information Example
|
Product Number |
Product Description |
Color |
Unit |
|
FD-98W |
ST Pigtail Single-Mode 1m |
Bare Fiber |
Piece |
|
FD-99W |
LC Pigtail Fiber 1m Single |
Bare Fiber |
Piece |
|
FD-966 |
FC-FC Fiber Patch Cord 3m Single |
Yellow |
Piece |
|
FD-699 |
LC-LC Fiber Optic Patch Cord Multimode 3m |
Orange |
Pcs |
|
FD-K01999 |
LC-LC Armored Fiber Optic Patch Cord Single-mode 3m |
Dark Blue |
Piece |
|
FD-K02999 |
LC-LC Armored Dual-Core Fiber Optic Patch Cord, Single-Mode, 3m |
Dark Blue |
Piece |
|
FD-K12999 |
LC-LC Armored 12-Core Fiber Optic Patch Cord, Single-Mode, 3m |
Dark Blue |
Piece |
