H2
Product Details

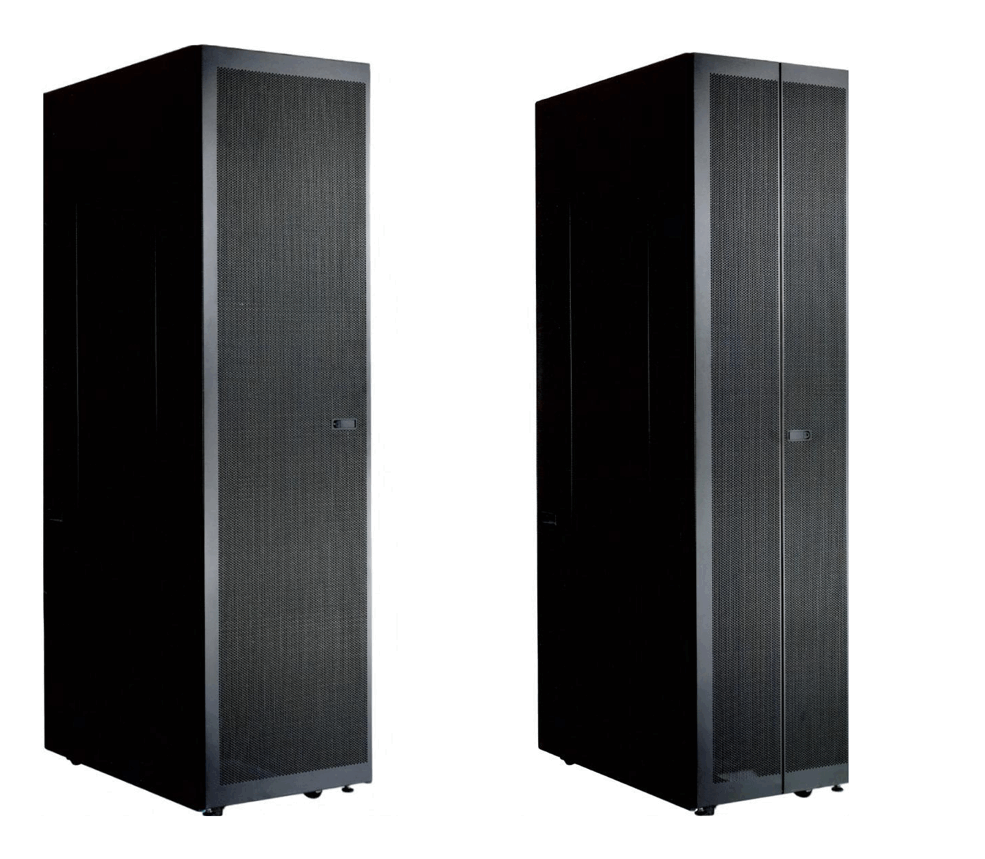

H2 Series Server Cabinets
|
H2 Series Cabinet Standard Configuration |
|
|
Frame 1pc |
Ventilated top cover 1pc |
|
Front mesh door 1pc |
Cage nuts & screws 1pack |
|
Casters 4pcs |
Cabinet joining kits 6pcs |
|
Side panels 2pcs |
Bottom frame 1pc |
|
Double rear doors 1pair |
Leveling feet 4pcs |
|
Door key 1set |
Mental cable management rings 6pcs |
Specifications
|
Ordering Code |
Capacity |
Dimensions |
Assembled volume |
|
H26042 |
42U |
600x1000mm |
1.40 |
|
H26142 |
600x1100mm |
1.60 |
|
|
H26242 |
600x1200mm |
1.70 |
- Cabinet Standards: Complies with GB/T3047.2-92 standard; compatible with 19” international standard, metric standard, and ETSI standard.
- Cabinet Material: 19-inch rails and crossbeams made of fingerprint-resistant aluminum-zinc coated sheet. Main frame made of nine-folded profile, other panels made of high-quality SPCC cold-rolled steel.
- Thickness: Bottom support plate: 3.0 mm; 19-inch rail: 2.0 mm; Crossbeams: 1.5 mm; Other parts: 1.2 mm.
- Load Capacity: Rated static load ≤ 1300 kg
- Protection class: IP20;
- Door Ventilation Rate: ≥ 75%
- Surface Treatment: Degreasing, water rinse, nano coating, pure water rinse, drying, electrostatic powder coating, oven curing
- Color: RAL9004 (Black), RAL7035 (Light Grey);
