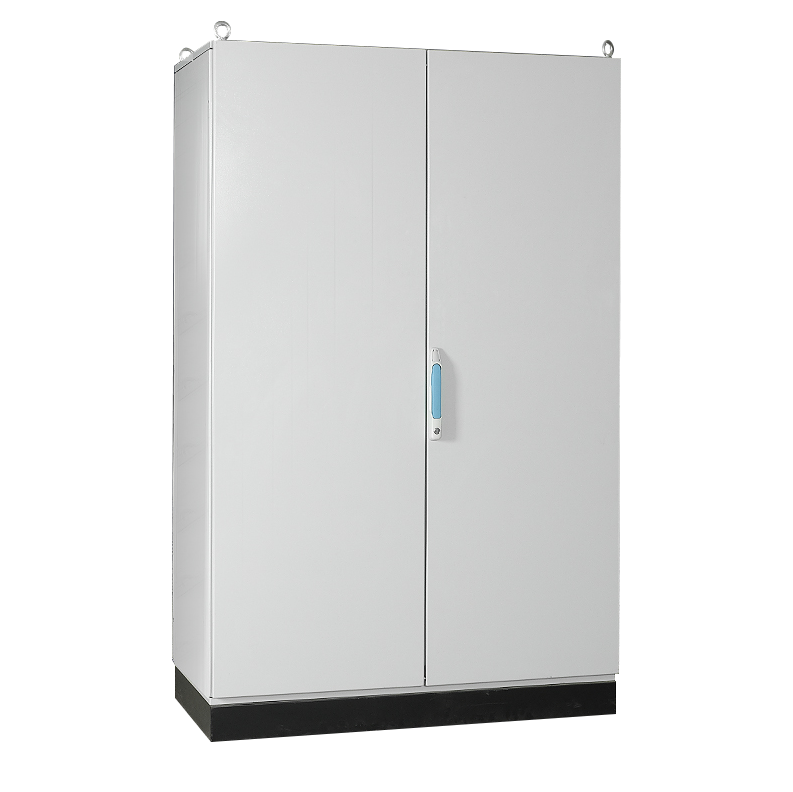

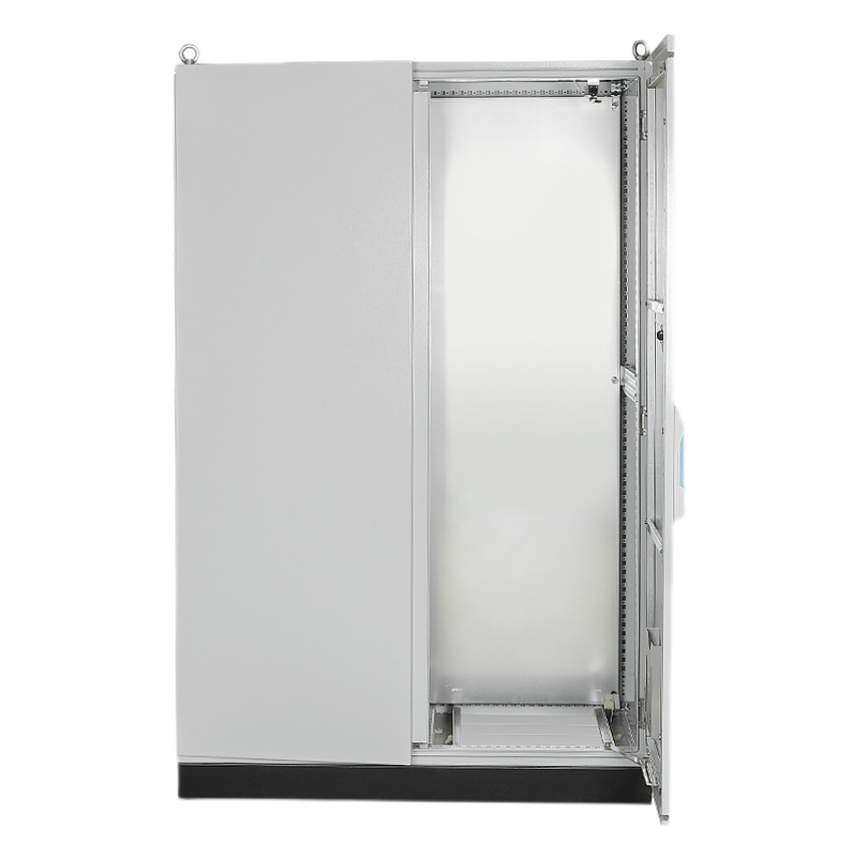

Nine-Folded PS Cabinet (Dual Door)
Product Details
Features
- Modular cabinet structure, suitable for side-by-side installation; lifting rings optional for easy transport and handling.
- Nine-folded profile welded structure; Delivered fully assembled, top, bottom, side panels and doors are removable.
- Standard base height: 100mm; frame equipped with densely spaced 25mm pitch modular holes for easy installation.
- Mounting plate available in galvanized or painted finish; can be slid into the cabinet using plastic sliders; custom cutouts available.
- Multiple accessories available; non-standard sizes can be customized according to requirements.
Main Materials
- Mounting plate: Aluzinc-coated steel or electrophoretic coating; other parts made of SECC galvanized steel sheet.
- Thickness: 2.5mm / 2.0mm / 1.5mm / 1.2 mm.
- Surface treatment: Degreasing → ceramization → pure water washing → electrophoresis or electrostatic spraying
- Protection class: IP20
- Load Capacity: Static load: 800KG
Specifications
|
Product Model |
Width |
Depth |
Height |
|
PS9-12512 |
1200 |
1200 |
500 |
|
PS9-12514 |
1400 |
1200 |
500 |
|
PS9-12516 |
1600 |
1200 |
500 |
|
PS9-12618 |
1800 |
1200 |
600 |
|
PS9-12818 |
1800 |
1200 |
800 |
|
PS9-12620 |
2000 |
1200 |
600 |
|
PS9-12820 |
2000 |
1200 |
800 |
|
PS9-12622 |
2200 |
1200 |
600 |
|
PS9-12822 |
2200 |
1200 |
800 |
