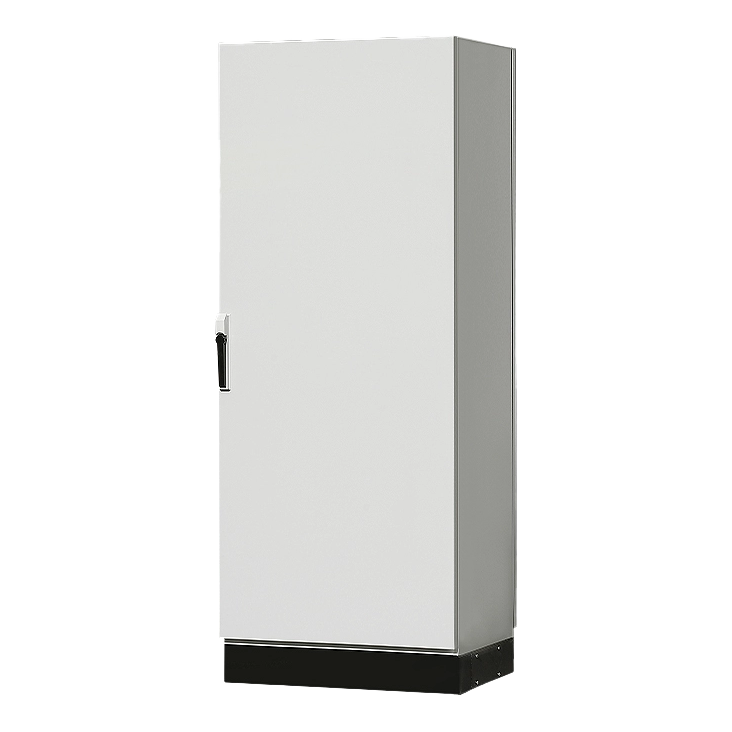

5-Bend Profile Cabinet
Product Details

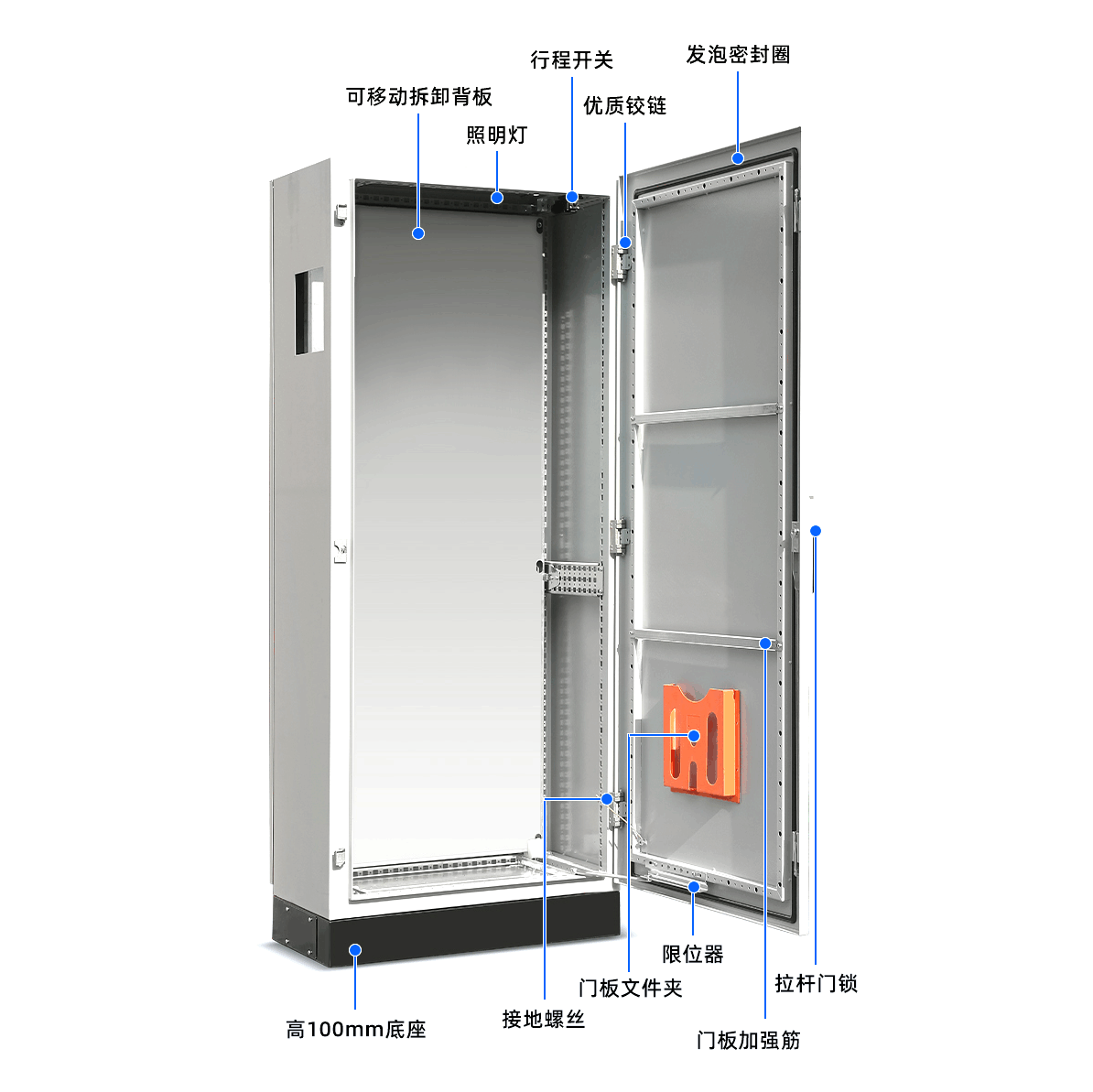

Features
- Five-bend profile welded structure, delivered fully assembled; lifting eyes optional for easy transportation and handling.
- Standard base height: 100 mm; frame with 25 mm pitch modular mounting holes for easy installation.
- Front door can be perforated as required; optional front panels, secondary mounting plates, and secondary-layer doors available.
- Mounting plate available with galvanized or powder-coated finish; cutouts can be customized.
- Wide range of accessories available; various non-standard/custom sizes accepted according to requirements.
Main Materials
- Mounting plate: Aluzinc-coated steel or electrophoretic coating; other parts made of SECC galvanized steel sheet.
- Thickness: 2.5mm / 2.0mm / 1.5mm / 1.2 mm.
- Surface treatment: Degreasing → ceramization → pure water washing → electrophoresis or electrostatic spraying
- Protection class: IP20
- Load Capacity: Static load: 800KG
|
Product Model |
Height |
Width |
Depth |
|
PS5-6512 |
1200 |
600 |
500 |
|
PS5-8512 |
1200 |
800 |
500 |
|
PS5-12512 |
1200 |
1200 |
500 |
|
PS5-6514 |
1400 |
600 |
500 |
|
PS5-8514 |
1400 |
800 |
500 |
|
PS5-12514 |
1400 |
1200 |
500 |
|
PS5-6516 |
1600 |
600 |
500 |
|
PS5-8516 |
1600 |
800 |
500 |
|
PS5-12516 |
1600 |
1200 |
500 |
|
PS5-6618 |
1800 |
600 |
600 |
|
PS5-8618 |
1800 |
800 |
600 |
|
PS5-12618 |
1800 |
1200 |
600 |
|
PS5-6818 |
1800 |
600 |
800 |
|
PS5-8818 |
1800 |
800 |
800 |
|
PS5-12818 |
1800 |
1200 |
800 |
|
PS5-6620 |
2000 |
600 |
600 |
|
PS5-8620 |
2000 |
800 |
600 |
|
PS5-10620 |
2000 |
1000 |
600 |
|
PS5-12620 |
2000 |
1200 |
600 |
|
PS5-6820 |
2000 |
600 |
800 |
|
PS5-8820 |
2000 |
800 |
800 |
|
PS5-10820 |
2000 |
1000 |
800 |
|
PS5-12820 |
2000 |
1200 |
800 |
|
PS5-6622 |
2200 |
600 |
600 |
|
PS5-8622 |
2200 |
800 |
600 |
|
PS5-10622 |
2200 |
1000 |
600 |
|
PS5-12622 |
2200 |
1200 |
600 |
|
PS5-6822 |
2200 |
600 |
800 |
|
PS5-8822 |
2200 |
800 |
800 |
|
PS5-10822 |
2200 |
1000 |
800 |
|
PS5-12822 |
2200 |
1200 |
800 |
