Complies with ANSI/EIA RS-310-D, IEC 297-2, DIN 41494; PART 1, DIN 41494; PART 7, GB/T 3047.2-92, and is compatible with ETSI standards.

Product Details

Features

Standard 19-inch design; delivery option: fully assembled or flat packaged;
Front/rear door opening angle ≥ 180°; multiple front/rear door types available;
Multiple cable routing channels designed at top and bottom; quick-release side doors;
floor-mounted installation options: leveling feet, casters or base plinth (optional);
Top equipped with 2/4 fan sets; power distribution unit (optional);
Optional accessories: fans, power distribution unit, trays, racks, etc.;

Main Materials

19-inch rail: aluminum-zinc coated sheet or electrophoretic coating; others: high-quality SPCC cold-rolled sheet;
Thickness: 1.5mm-1.2mm-0.8mm;
Surface Treatment: Degreasing → ceramization → pure water washing → electrophoresis or electrostatic spraying;
Protection Class: IP20;
Load Capacity: Static load: 300KG;

Order Code	Capacity	Width	Depth	Height	Loose Volume	Packed Volume	Weight
F4■6612■■	12	600	600	695
F4■6615■■	15	600	600	828
F4■6618■■	18	600	600	961
F4■6818■■	18	600	800	961
F4■6622■■	22	600	600	1141
F4■6822■■	22	600	800	1141
F4■6627■■	27	600	600	1363
F4■6827■■	27	600	800	1363
F4■6632■■	32	600	600	1585
F4■6832■■			800
F4■6032■■			1000
F4■6637■■	37	600	600	1808
F4■6837■■			800
F4■6037■■			1000
F4■6642■■	42	600	600	2030
F4■6842■■			800
F4■6042■■			1000

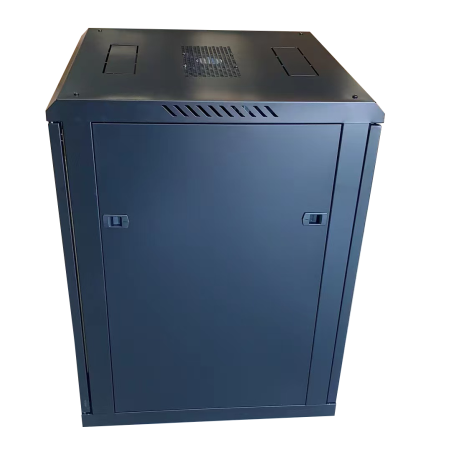

F4	F4S	F4Q	F4P	F4G	RAL9004	RAL7035	Optional accessories: fan, tray, bracket, power distribution unit, grounding wire, keyboard, door, etc.
Adhesive glass door	Shaped glass door	Glass door with fixing blocks	Mesh door	Angled mesh door	Black (90)	Gray-white (70)
■	■	■	■	■	■■	■■
