H3
Product Details

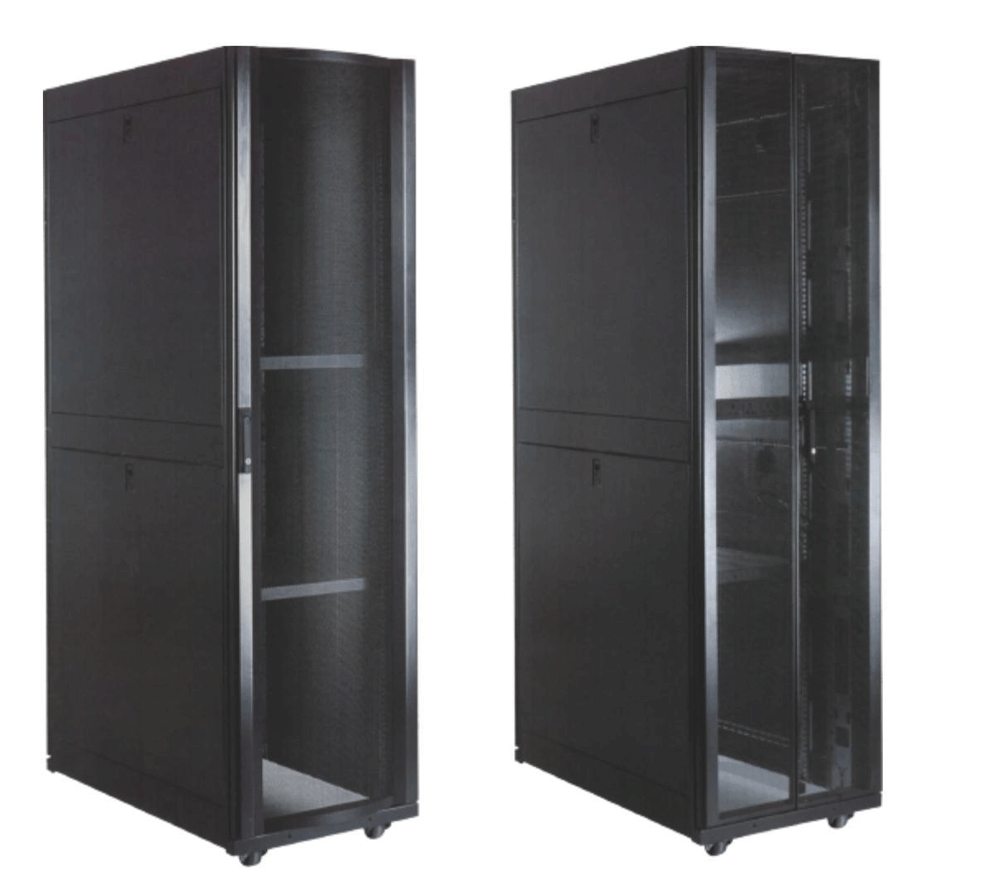

H3 Series Server Rack

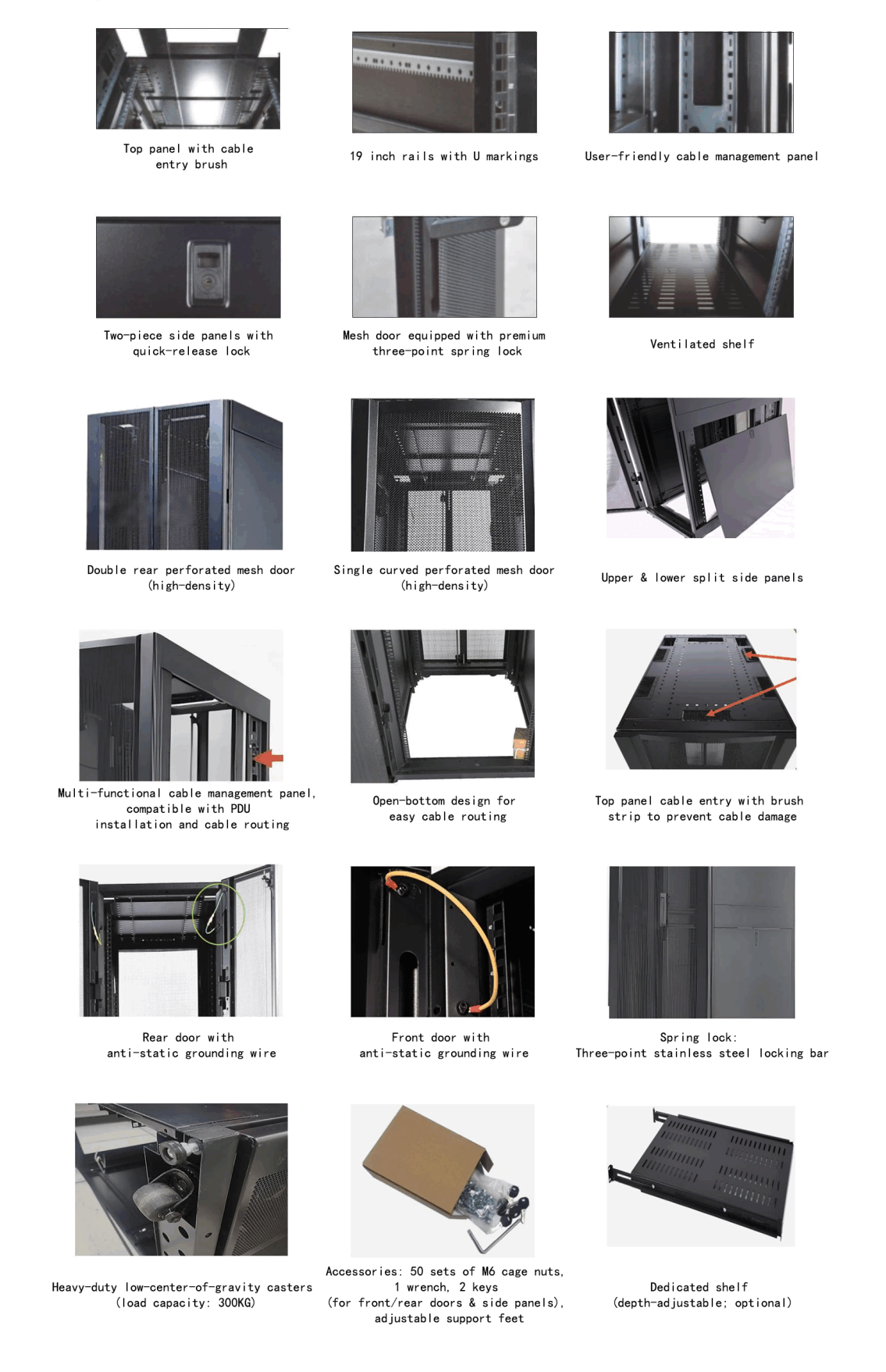

| H3 Series standard features | |
|
Cabinet Frame: 1pcs |
Side Panel: 4 pcs |
|
top cover: 1 pcs |
Bottom: 1 pcs |
|
Perforated Front door: 1pcs |
Double Rear door: 1 pair |
|
Cage Nuts&Screws: 1 bag |
Leveling feet: 4 pcs |
|
Castors: 1 pcs |
keys: 1 set |
| Cabinet connection kits: 6 pcs |
|
Specifications
|
Model |
Capacity |
Dimensions |
Package Vol. |
|
H36042 |
42U |
600x1070mm |
1.10 |
|
H38042 |
800x1070mm |
1.40 |
- Cabinet Standards: Complies with GB/T 3047.2-92, and is compatible with 19-inch international standard, metric standard, and ETSI standard.
- Material: The 19-inch rails and cross beams are made of anti-fingerprint aluminum-zinc coated steel. The main frame adopts multi-bent profiles, and other parts are made of high-quality SPCC cold-rolled steel sheet.
- Thickness:
19-inch mounting rails: 2.0 mm
Cross beams: 1.5 mm
Others: 1.2 mm - Load Capacity: Rated static load: ≤ 1300 kg
- Protection class: IP20
- Door Ventilation Rate: > 75%
- Surface Treatment: Degreasing → Ceramization → pure water rinsing → electrostatic powder coating
- Color: RAL9004 (Black), RAL7035 (Light Grey)
