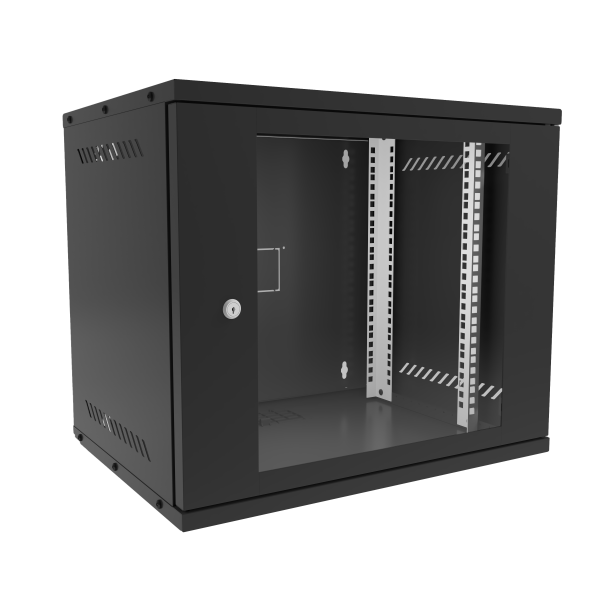

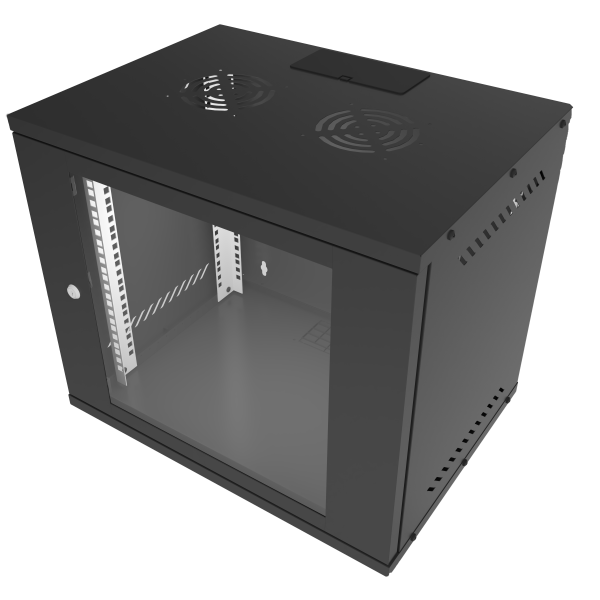

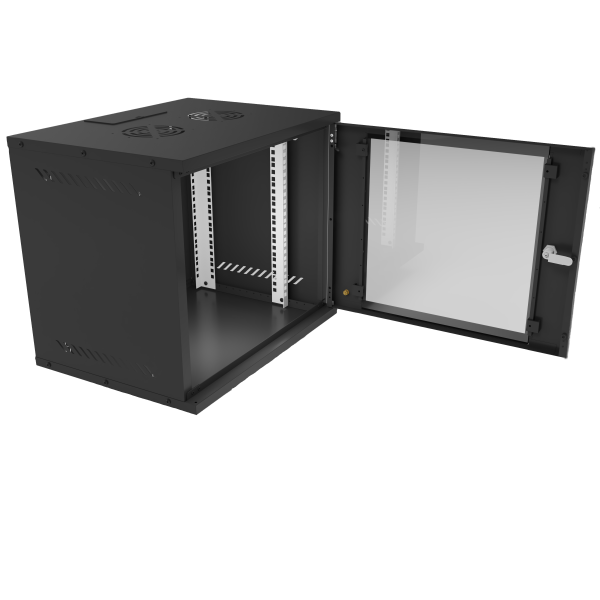

Standard 19-inch design, Integral assembled structure (stable and firm), Available in fully assembled or flat-packed;

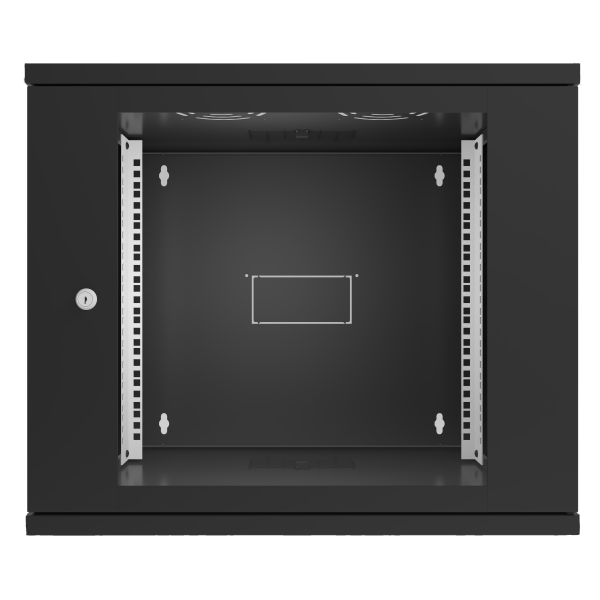

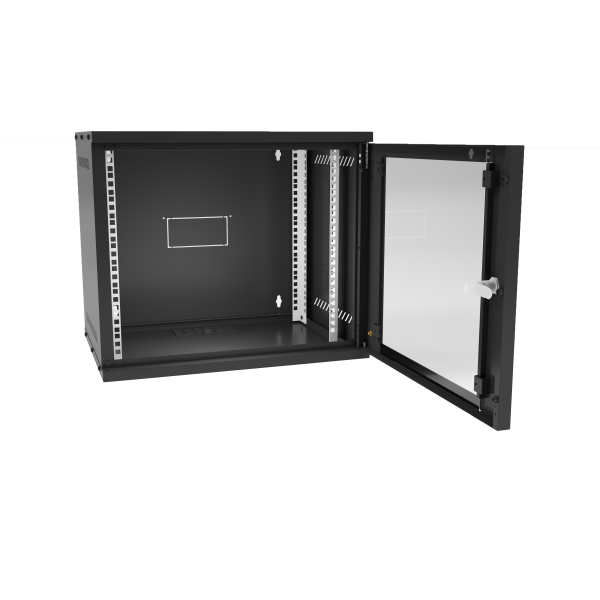

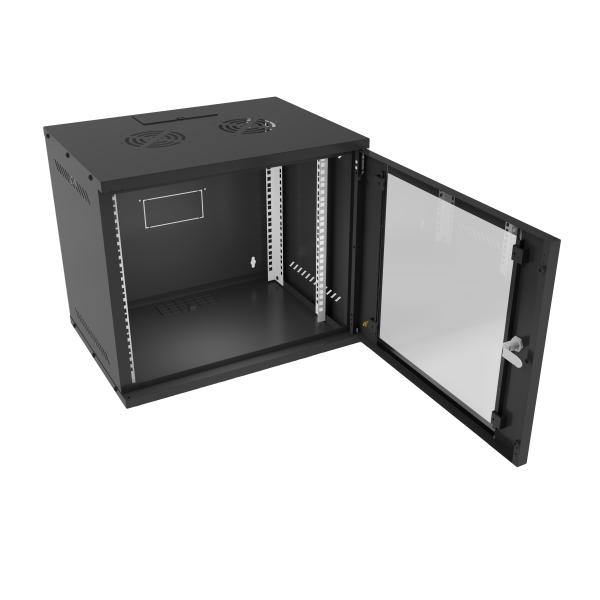

Front door opens ≥180°, Optional tempered glass door with fixing blocks: tempered glass can be easily replaced if broken;
Side doors are non-openable; rear doors are removable;

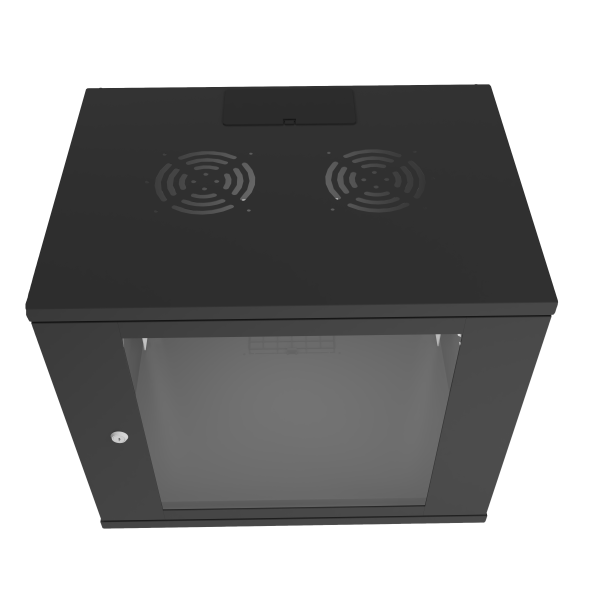

Built-in cable channels at the top, bottom and back;
Avaiable in Wall-mounted, floor-standing, Supports quick wall-plate mounting;
Optional Accessories: fan, power distribution unit, tray, rack, etc.;

Surface Treatment:

Degreasing → Ceramization → pure water rinsing → electrophoresis or electrostatic spraying (optional);

Protection Class:

Load Capacity:

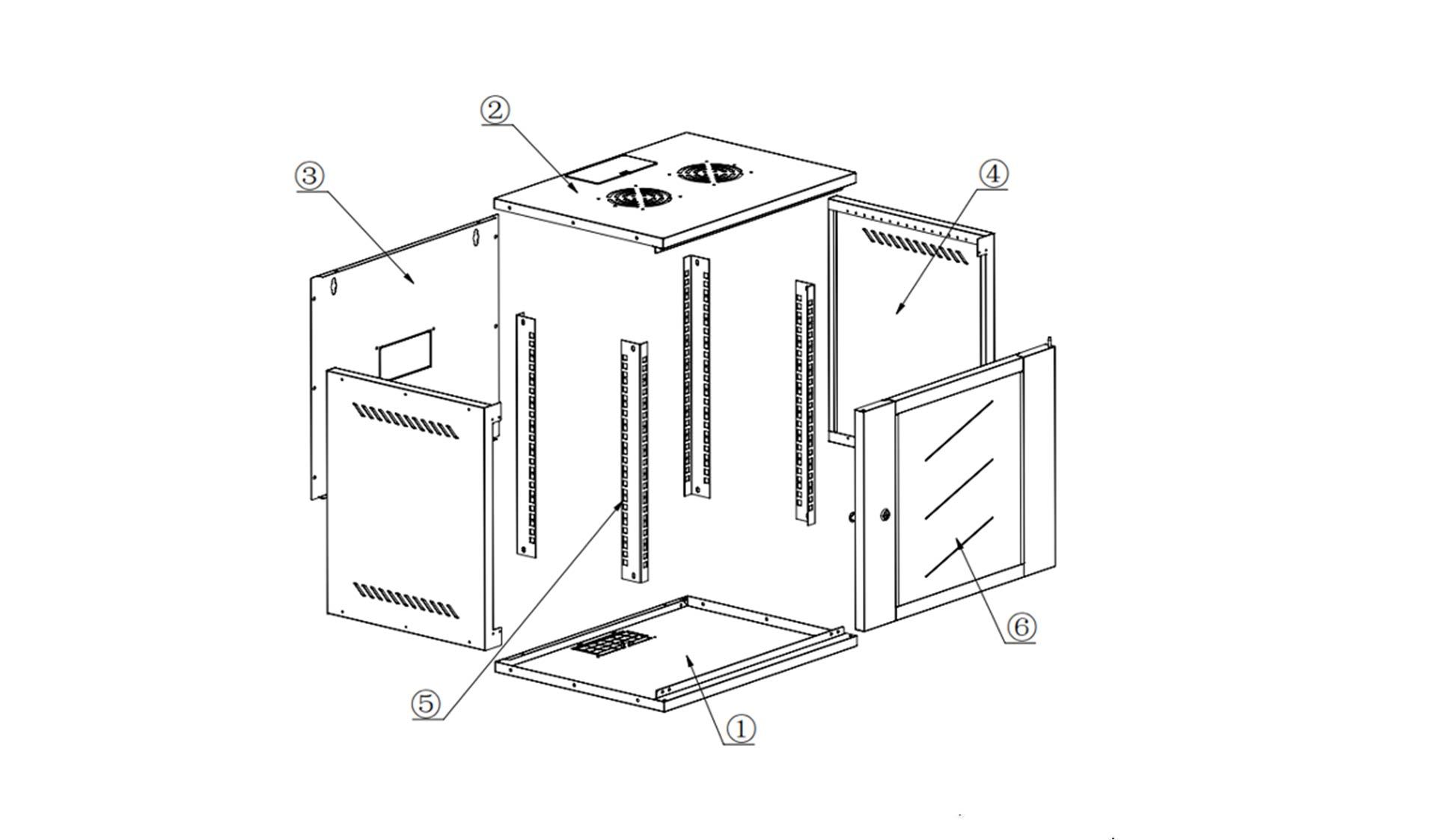

Item No.	Description	Quantity	Unit	Material	Surface Treatment	Remarks

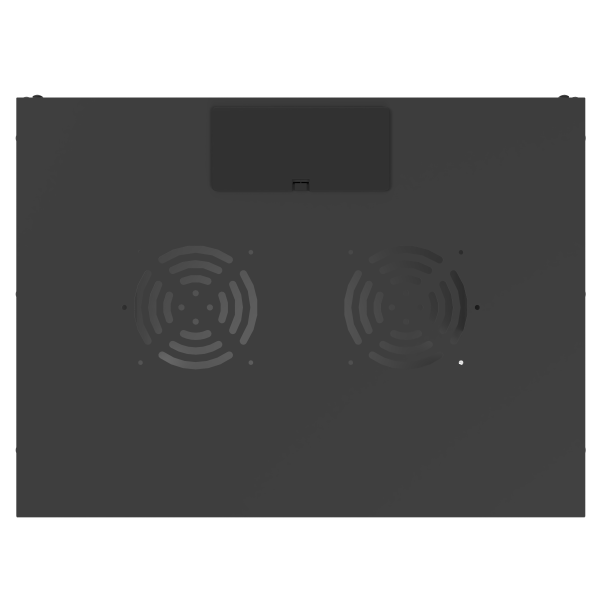

1	Top Cover	1	Piece	SPCC Cold-Rolled Steel Sheet	Electrostatic Spraying
2	Base	1	Piece	SPCC cold-rolled steel plate	Electrostatic spraying	---
3	Front door	1	Piece	SPCC cold-rolled steel sheet	Electrostatic spraying	---
4	Side panels	2	pieces	SPCC cold-rolled steel sheet	Electrostatic spraying	---

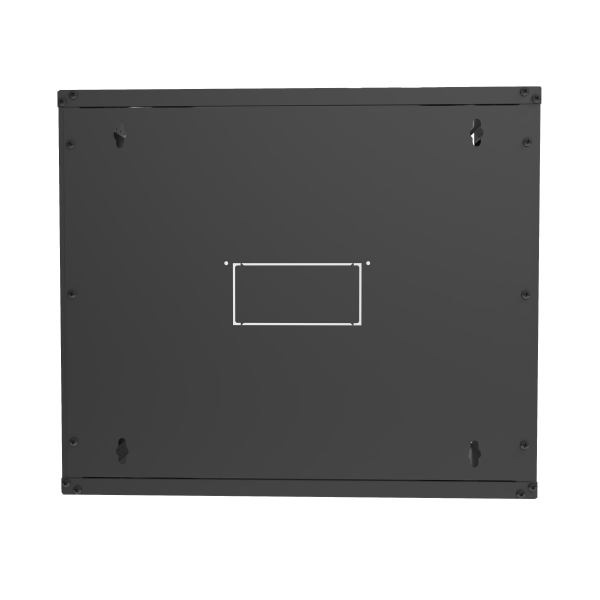

5	Back panel	1	piece	SPCC cold-rolled sheet metal	Electrostatic spraying	---
6	Square Hole Strip	4	Pieces	Galvanized Sheet Metal	Galvanized	---
7	Front door	Optional - Tempered glass door with cold-rolled sheet frame/ Mesh door/ iron cabinet door.				---
8	Structure	Side doors are non-openable; rear doors are removable				---
9	Packaging Method	Foldable corrugated box packaging or fully assembled;				---

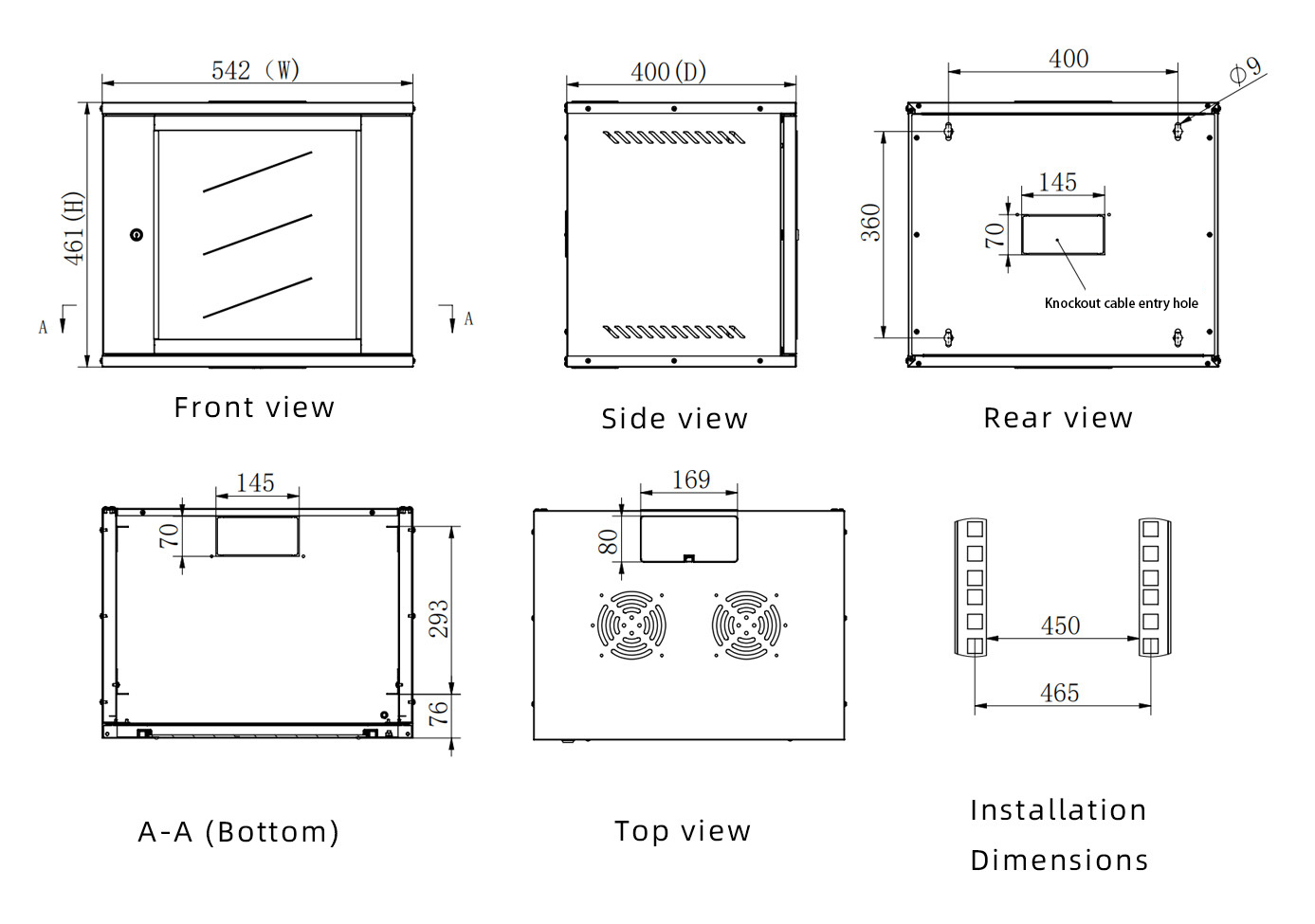

Order Code	Capacity U	Height (H) mm	Width (W) mm	Depth (D) mm	Full-Pack Volume (m³)	Loose-Pack Volume (m³)	Weight (kg)
W4A■- 5404■□	4	280	542	400	0.066
W4A■- 5604■□	4	280		600	0.098
W4A■- 5406■□	6	368		400	0.086
W4A■- 5606■□	6	368		600	0.127
W4A■- 5409■□	9	501		400	0.116
W4A■- 5609■□	9	501		600	0.172
W4A■-5412■□	12	595		400	0.137
W4A■-5612■□	12	595		600	0.204
W4A	W4A	W4A	W4A	RAL9004	RAL7035	Optional Accessories: fan, power distribution unit, tray, rack, etc;
Adhesive glass door	Glass door with fixing blocks	Mesh door	Iron cabinet door	Black	Gray-white
■	■	■	■	■	□
