Available in fully assembled or flat-packed;
Side-Frame Structure, with a front door opening angle of ≥ 180°;
Optional tempered glass door with fixing blocks: tempered glass can be easily replaced if broken;

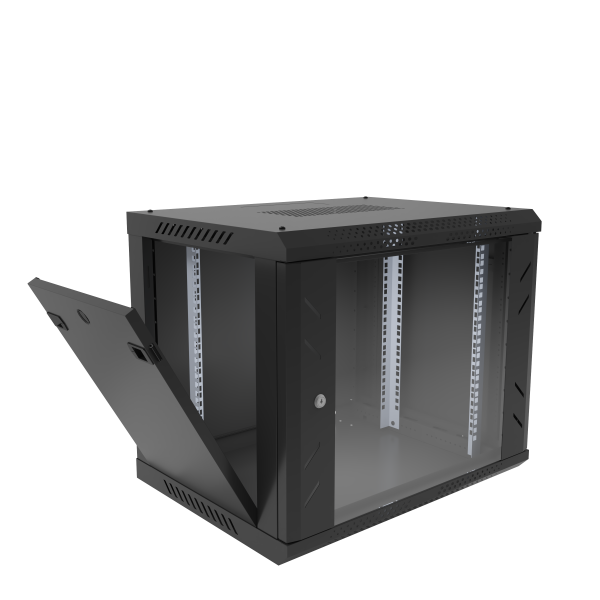

Quick-release side door for easy installation and maintenance;
Closable upper and bottom cable routing channels;
Avaiable in Wall-mounted, floor-standing;
floor-mounted installation options: leveling feet, casters;
Optional: fans;
Supports quick wall-plate mounting;

Other components:

Thickness Specifications:

Degreasing → Ceramization → pure water rinsing → electrophoresis or electrostatic spraying (optional)；

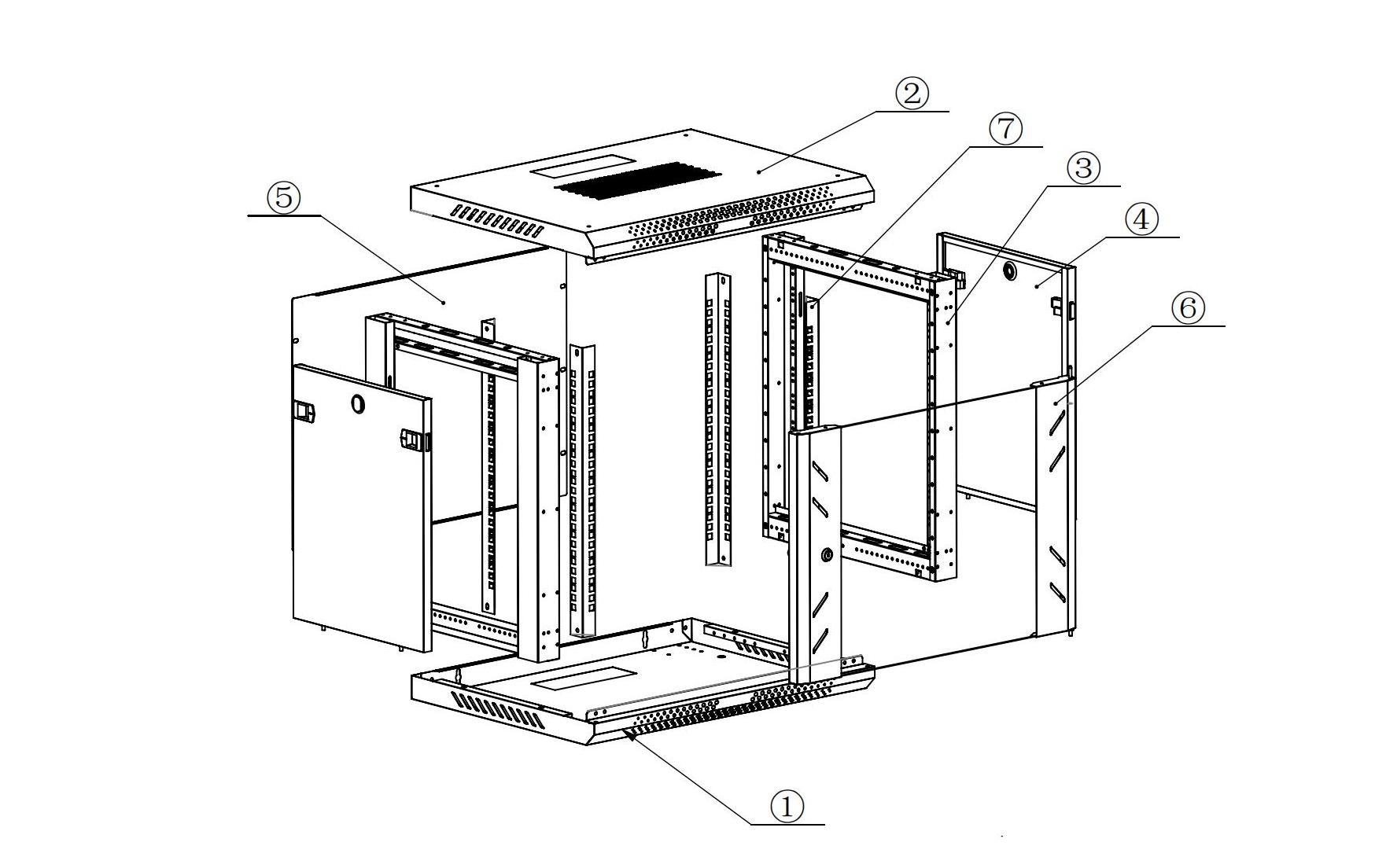

Item No.	Description	Quantity	Unit	Material	Surface Treatment	Remarks
1	Top Cover	1	Piece	SPCC Cold-Rolled Steel Sheet	Electrostatic Spraying
2	Base	1	Piece	SPCC cold-rolled steel plate	Electrostatic spraying	---
3	Frame	2	Pieces	SPCC cold-rolled steel plate	Electrostatic spraying	---
4	Front door	1	piece	SPCC cold-rolled steel plate	Electrostatic spraying	---
5	Side door	2	pieces	SPCC cold-rolled sheet metal	Electrostatic spraying	---
6	Back Panel	1	Piece	SPCC Cold-Rolled Steel Sheet	Electrostatic Spraying	---
7	Square Hole Strip	4	Pieces	Galvanized Sheet Metal	Galvanized	---
8	Front door	Optional - Tempered glass door with cold-rolled sheet frame/ Mesh door/ iron cabinet door.				---
9	Structure	Side-Frame Structure, quick-release side door, removable rear door.				---
10	Packaging Method	Flat-packed or fully-assembled.				---

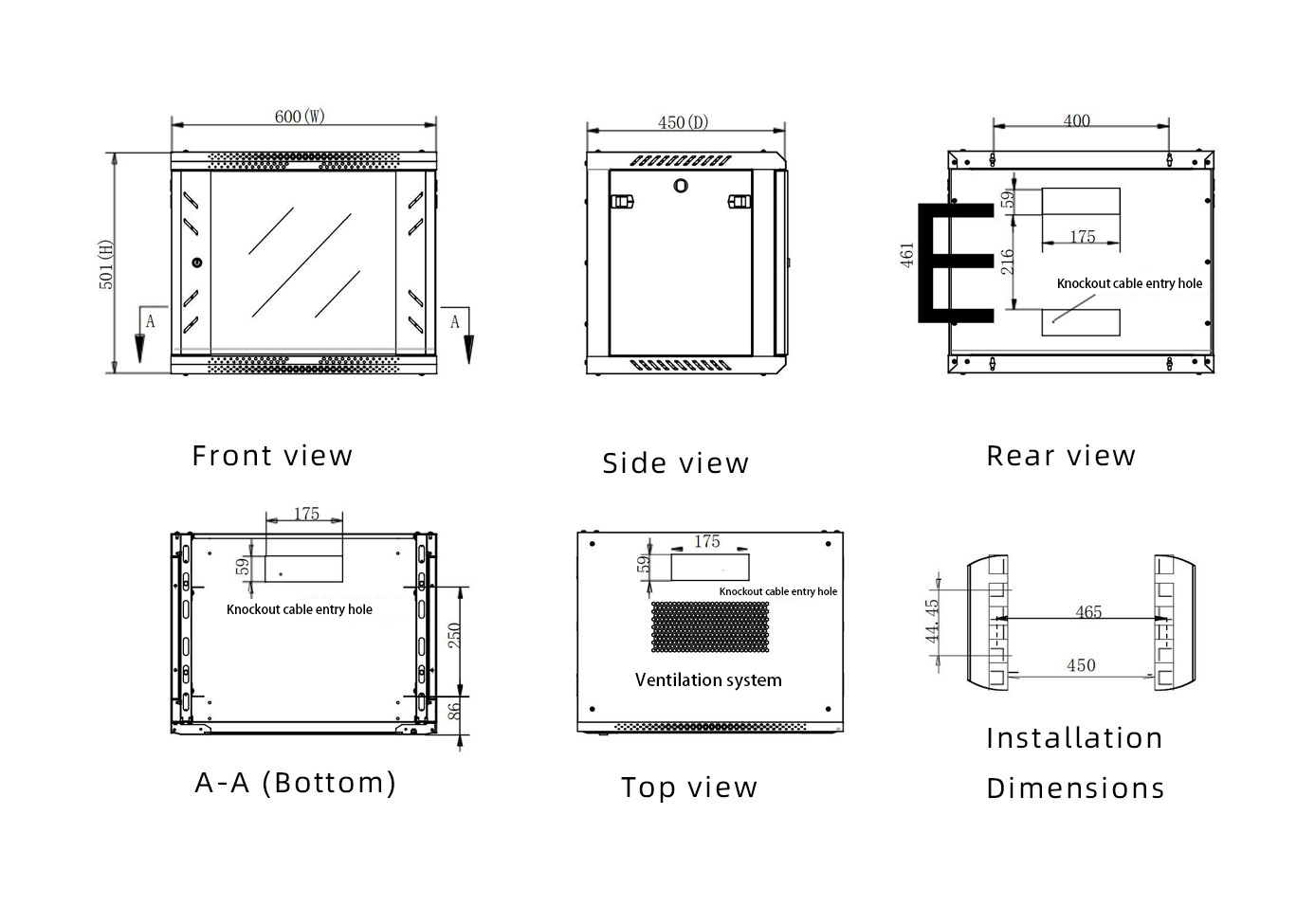

Order Code	Capacity U	Height (H) mm	Width (W) mm	Depth (D) mm	Full Pack Volume (m³)	Loose Pack Volume (m³)	Weight (kg)
WB■- 6404■□	4	280	600	450
WB■- 6604■□	4	280	600	600
WB■- 6406■□	6	368	600	450
WB■- 6606■	6	368	600	600
WB■- 6409■□	9	501	600	450
WB■- 6609■□	9	501	600	600
WB■- 6412■□	12	635	600	450
WB■- 6612■□	12	635	600	600
WB■- 6415■□	15	769	600	450
WB■- 6615■□	15	769	600	600
WB■- 6418■□	18	901	600	450
WB■- 6618■□	18	901	600	600
WB■- 6422■□	22	1082	600	450
WB■- 6622■□	22	1082	600	600
WB■- 6427■□	27	1304	600	450
WB■- 6627■□	27	1304	600	600
WB	WB	WB	WB	RAL9004	RAL7035	Optional Accessories: fan, power distribution unit, tray, rack, caster, levelling foot;
Adhesive glass door	Glass door with fixing blocks	Mesh Door	Iron cabinet door	Black	Gray-white
■	■	■	■	■	□
