Features:

Integral assembled structure (stable and firm), Available in fully assembled or flat-packed;

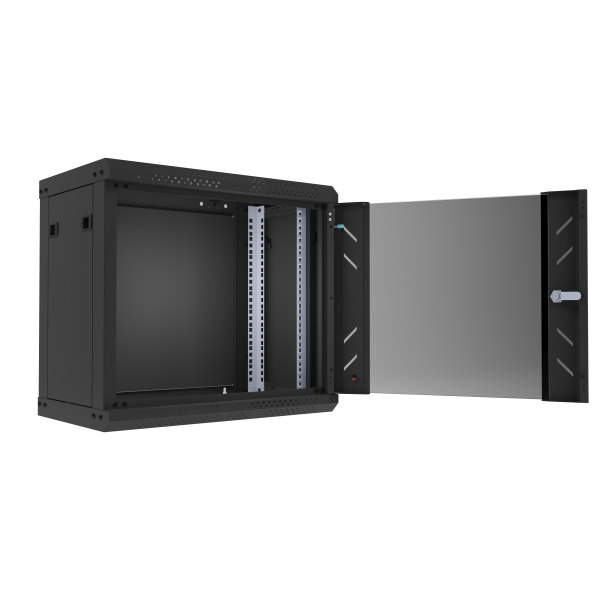

Full-column structure with a front door opening angle of ≥ 180°;
Front door with tempered glass, Optional tempered glass door with fixing blocks: tempered glass can be easily replaced if broken.
Quick-release design for easy installation and maintenance;
Built-in cable channels at the top, bottom and back;
Standard 19-inch design;
Avaiable in Wall-mounted, floor-standing;
Optional Accessories: fan, power distribution unit, tray, rack, caster, levelling foot;
Supports quick wall-plate mounting; Wall plate included;

Proetction Class: IP20;
Load capacity: Static load: 60 kg;
Main materials: 19-inch Rail: Aluminum-zinc/ electrophoretic coating；
Other components: SPCC high-quality cold-rolled steel sheet;
Thickness Specifications: 19-inch rail 1.5mm; front door 0.7mm; others 1.1mm; Wall plate 1.5mm;
Surface treatment: Degreasing → Ceramization → pure water rinsing → electrophoresis or electrostatic spraying (optional);

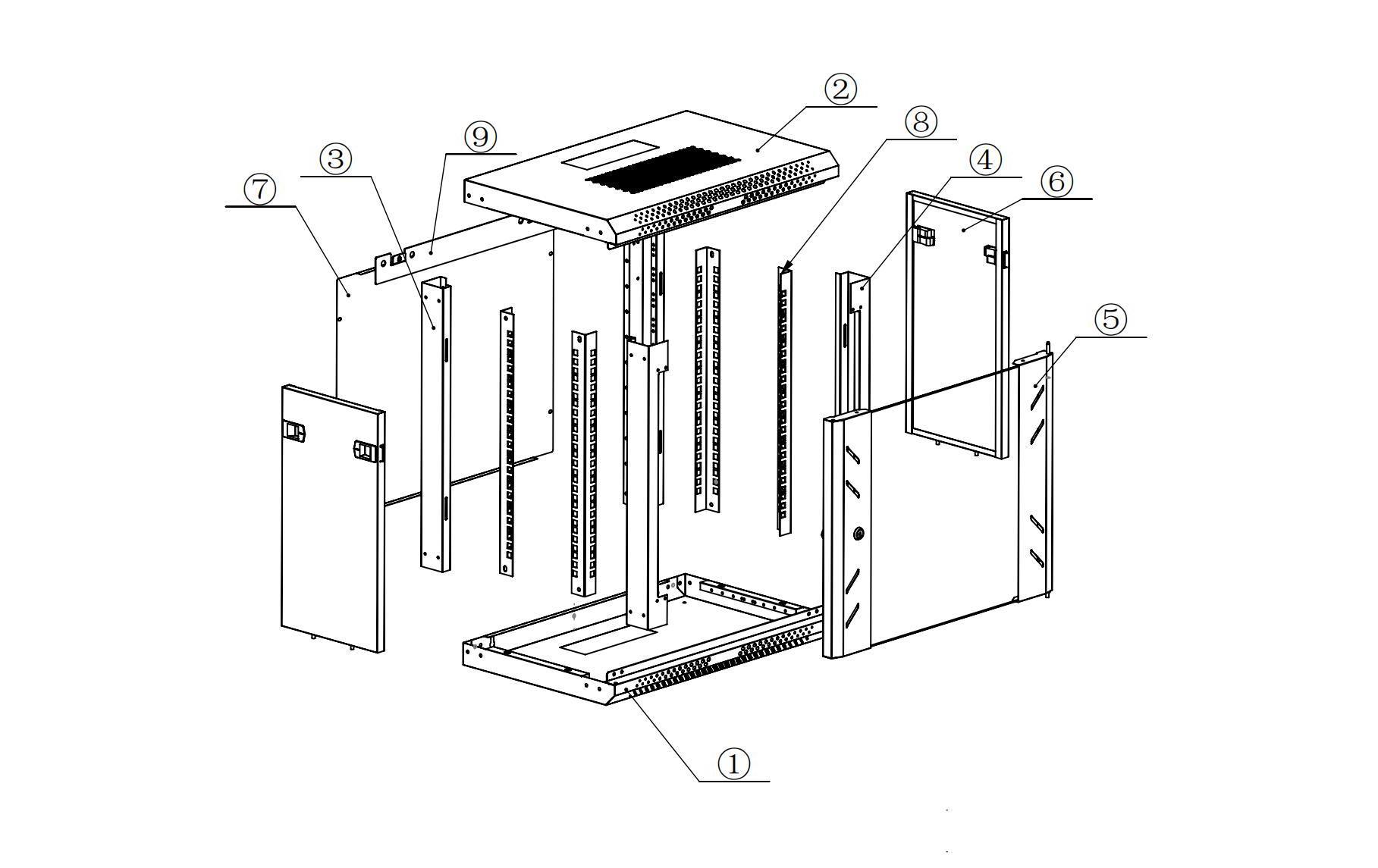

Item No.	Description	Quantity	Unit	Material	Surface Treatment	Remarks
1	Bottom	1	Piece	SPCC Cold-Rolled Steel Plate	Electrostatic Spraying
2	Top Cover	1	Pcs	SPCC Cold-Rolled Steel Sheet	Electrostatic Spraying
3	Rear rails	2	Pieces	SPCC Cold-Rolled Steel Sheet	Electrostatic Spraying	---
4	Front rails	2	pieces	SPCC cold-rolled steel plate	Electrostatic spraying	---
5	Front Door	1	Piece	SPCC Cold-Rolled Steel Sheet	Electrostatic Spraying	---
6	Side panels	2	Pieces	SPCC Cold-Rolled Steel Sheet	Electrostatic Spraying	---
7	Back Panel	1	Piece	SPCC cold-rolled sheet metal	Electrostatic spraying	---
8	Mounting profiles	4	pieces	Galvanized sheet metal	Galvanized finish	---
9	Wall mount bracket	1	piece	SPCC cold-rolled steel plate	Electrostatic spraying	---
10	Front door option	Optional: Cold-rolled steel frame with tempered glass door; Mesh door; Solid iron door.				---

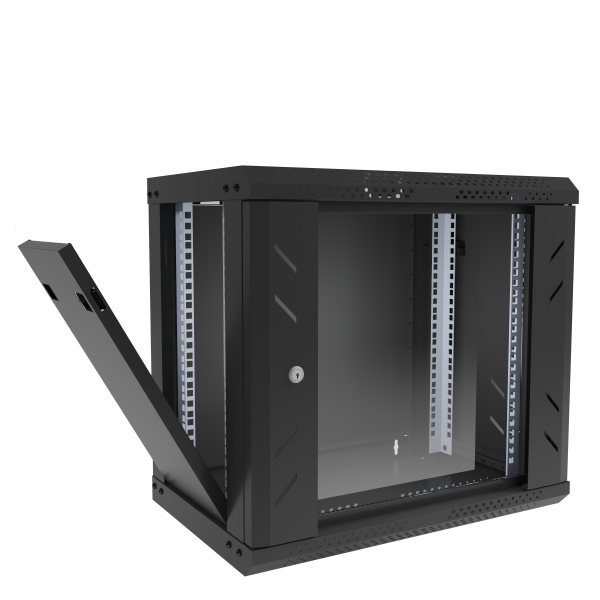

11	Structure	Full-column structure, quick-release side doors, removable rear door.				---
12	Packing	Individual loose packaging; optional fully assembled shipment.				---

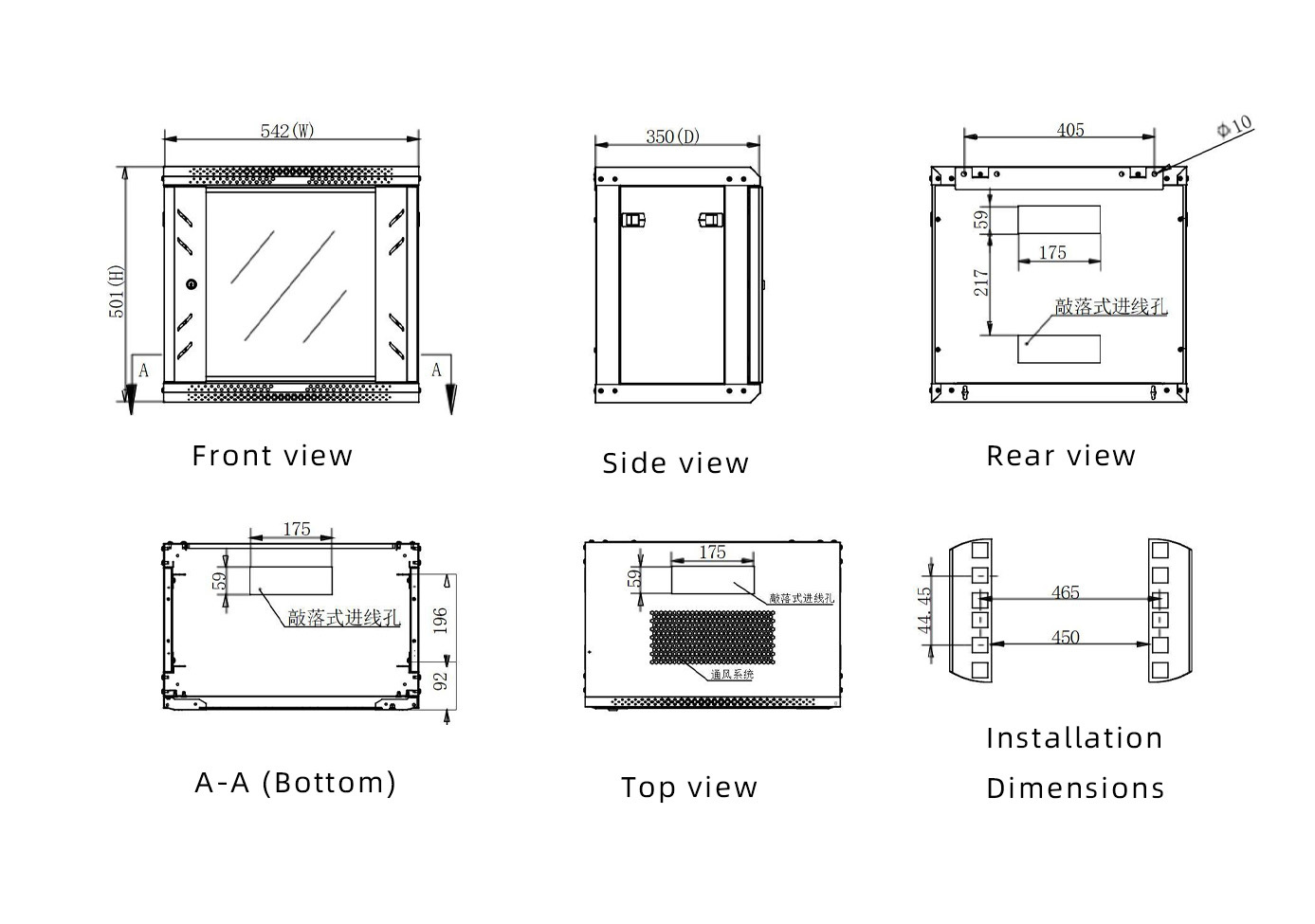

Order Code	Capacity U	Height (H) mm	Width (W) mm	Depth (D) mm	Packed Volume (m³)	Loose Volume (m³)	Weight (kg)
W3■- 5404■□	4	210	542	400	0.05
W3■- 5404■□	4	280			0.07
W3■- 5406■□	6	350			0.08
W3■- 5406■□	6	368			0.09
W3■- 5409■□	9	450			0.10
W3■- 5409■□	9	501			0.12
W3■- 5412■□	12	595			0.14
W3■- 5412■□	12	635			0.15
W3	W3	W3	W3	RAL9004	RAL7035	Optional accessories: Fan assembly, tray, bracket, power supply, grounding wire, etc.
Adhesive glass door	Glass door with fixing blocks	Mesh door	Iron cabinet door	Black	Gray-white
■	■	■	■	■	□
