Features:

Integral welded structure: Flat packed is not available;

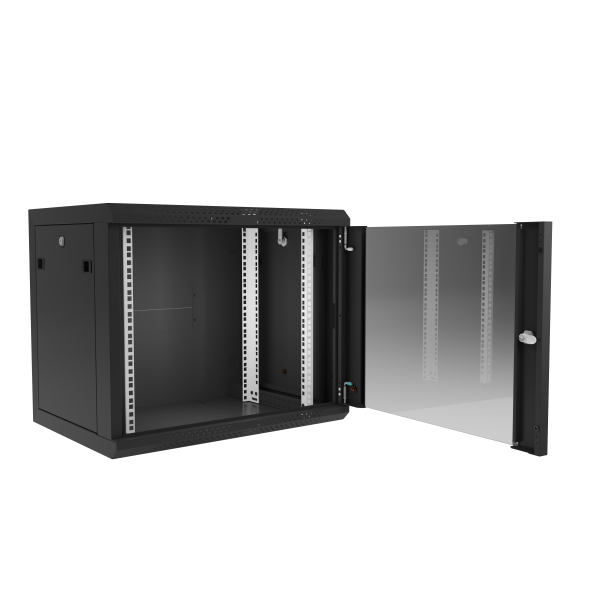

Front door opening angle ≥ 180°;
Front door with tempered glass, Optional tempered glass door with fixing blocks: tempered glass can be easily replaced if broken;

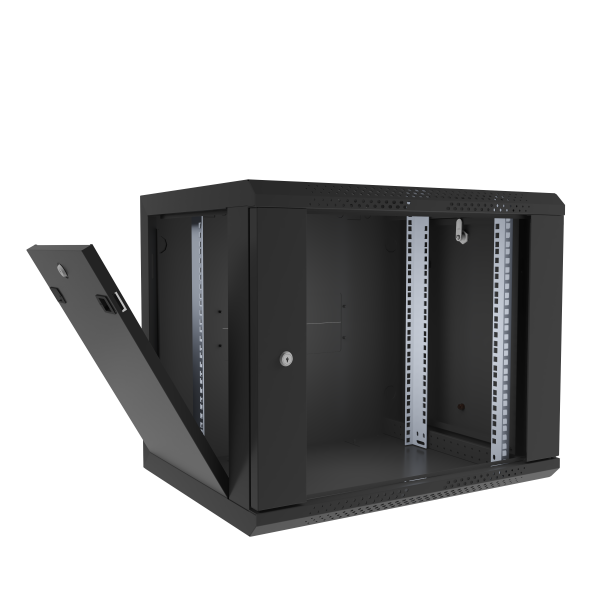

Quick-release side door for easy installation and maintenance
Closable upper and bottom cable routing channels
Optional：Fan
Quick wall plate mounting method

Protection Class: IP20;
Load capacity: Static load: 60 kg;
Main materials: 19-inch Rail: Aluminum-zinc/ electrophoretic coating;
Other components: high-quality SPCC cold-rolled steel sheet;
Thickness Specifications: 19-inch rail 1.5mm; front door 0.7mm; others 1.1mm;
Surface treatment: Degreasing → Ceramization → pure water rinsing → electrophoresis or electrostatic spraying (optional);

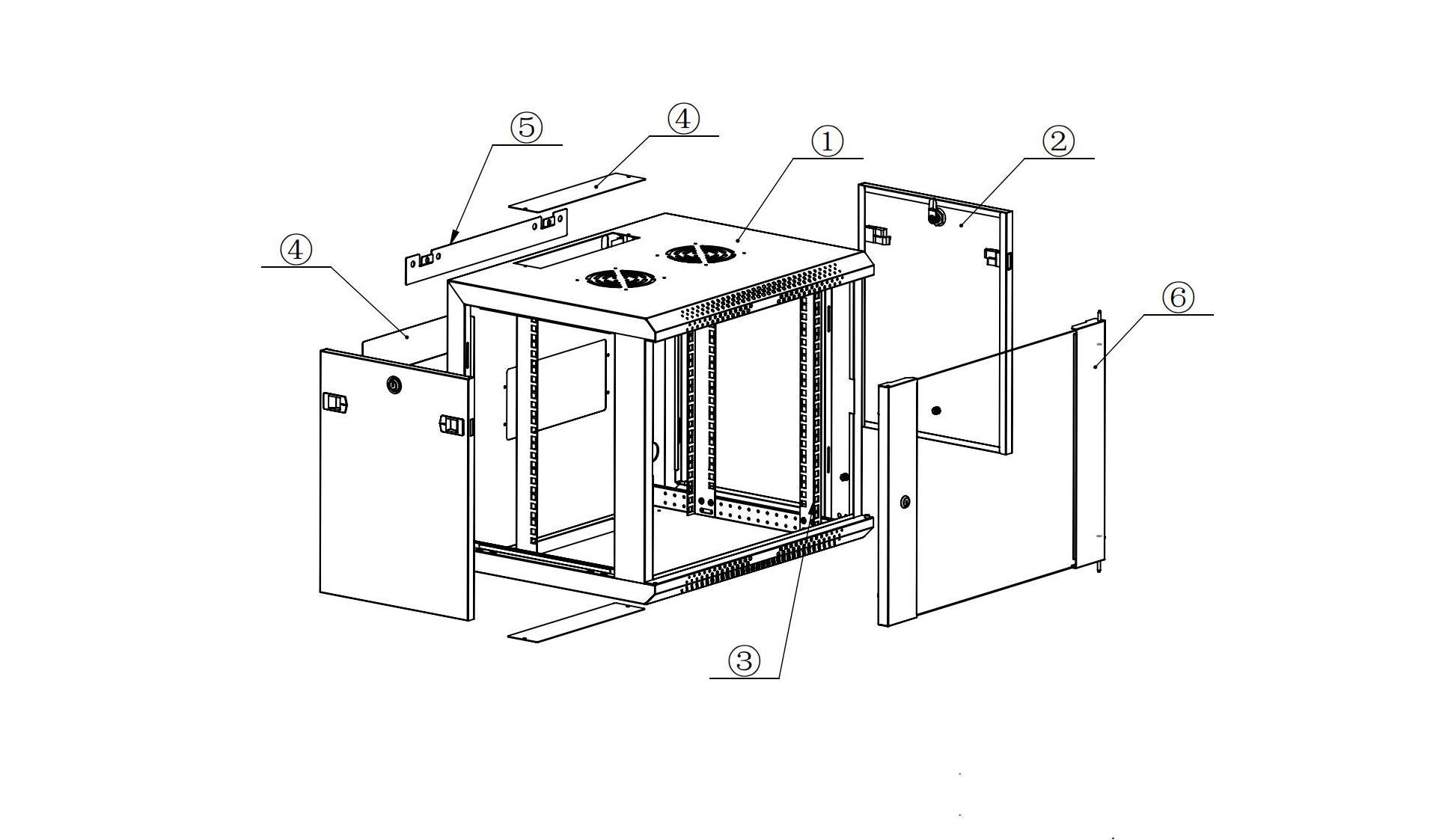

Item No.	Description	Quantity	Unit	Material	Surface Treatment	Remarks
1	Bottom	1	Piece	SPCC Cold-Rolled Steel Plate	Electrostatic Spraying
2	Top Cover	2	Pcs	SPCC Cold-Rolled Steel Sheet	Electrostatic Spraying
3	Rear rails	2	Pieces	SPCC Cold-Rolled Steel Sheet	Electrostatic Spraying	---
4	Front rails	2	pieces	SPCC cold-rolled steel plate	Electrostatic spraying	---
5	Front door	1	Piece	SPCC Cold-Rolled Steel Sheet	Electrostatic Spraying	---
6	Side panels	2	Pieces	SPCC Cold-Rolled Steel Sheet	Electrostatic Spraying	---
7	Back panel	1	Piece	SPCC cold-rolled sheet metal	Electrostatic spraying	---
8	Mounting profiles	4	pieces	Galvanized sheet metal	Galvanized finish	---
9	Mounting brackets	1	piece	SPCC cold-rolled steel plate	Electrostatic spraying	---
10	Front door	Optional: Tempered glass door with cold-rolled sheet frame/ Mesh door/ iron cabinet door.				---
11	Structure	Front Column Structure, quick-release side doors, removable rear door.				---
12	Packing	Carton packaging, fully assembled				---

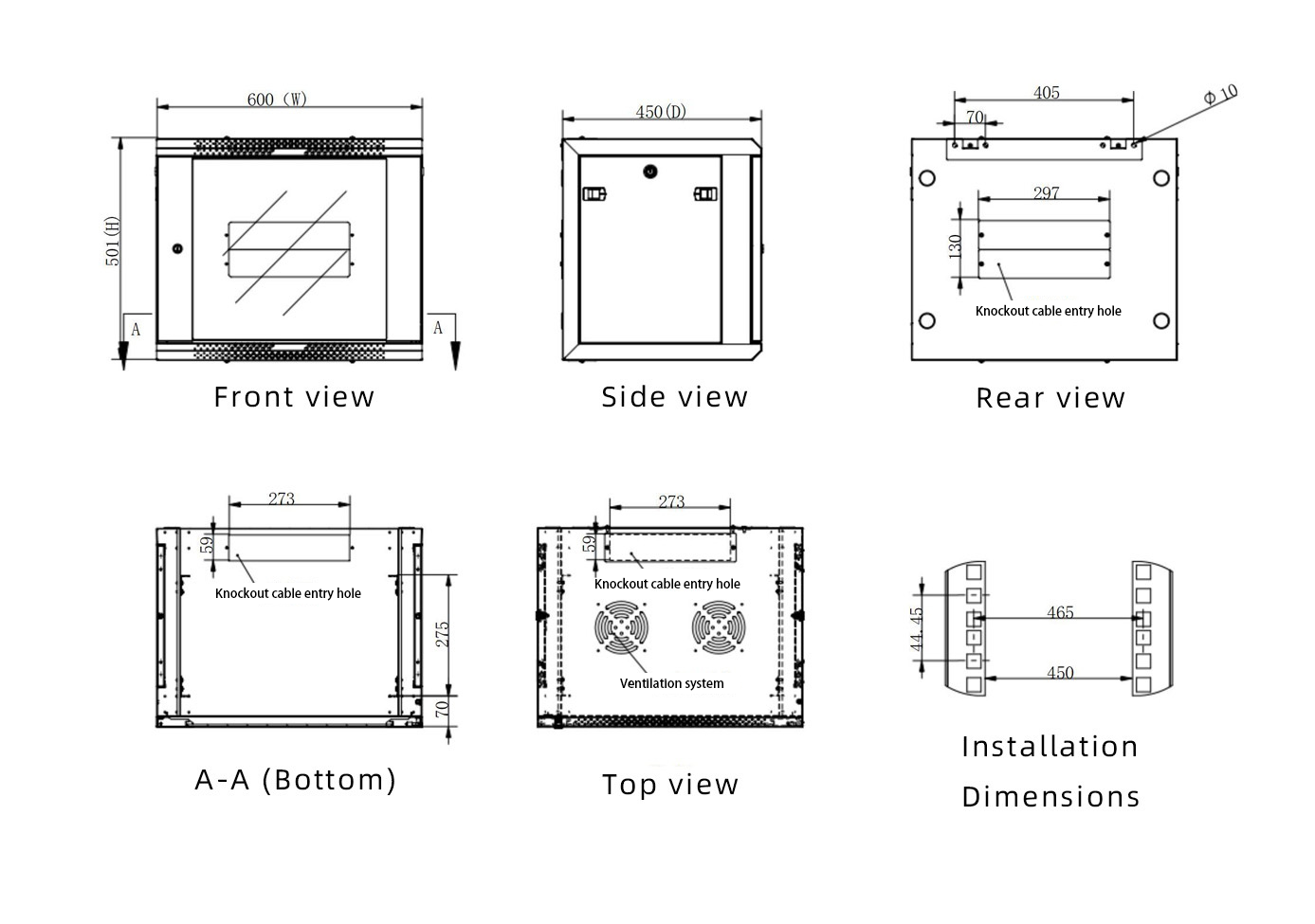

Ordering Code	Capacity U	Height (H) mm	Width (W) mm	Depth (D) mm	Packed Volume (m³)	Bulk Volume (m³)	Weight (kg)
W2■- 6604■□	4	280	600	450	0.059
W2■- 6604■□	4	280	600	600	0.123
W2■- 6406■□	6	368	600	450	0.081
W2■- 6606■□	6	368	600	600	0.157
W2■- 6409■□	9	501	600	450	0.160
W2■- 6609■□	9	501	600	600	0.210
W2■- 6412■□	12	635	600	450	0.200
W2■-6612■□	12	635	600	600	0.263
W2■- 6415■□	15	769	600	450	0.240
W2■- 6615■□	15	769	600	600	0.317
W2■- 6418■□	18	901	600	450	0.280
W2■- 6618■□	18	901	600	600	0.370
W2■- 6422■□	22	1082	600	450	0.295
W2■- 6622■□	22	1082	600	600	0.390
W2■- 6427■□	27	1304	600	450	0.352
W2■- 6627■□	27	1304	600	600	0.470
W2	W2	W2	W2	W2	RAL9004	RAL7035	Optional Accessories: fan, power distribution unit, tray, rack, caster, levelling foot;
Glass door with fixing blocks	Adhesive glass door	Shaped glass door	Mesh door	Iron cabinet door	Black	Grayish white
■	■	■	■	■	■	□
