Integral assembled structure (stable and firm), Available in fully assembled or flat-packed;
Frame structure with a front door opening angle of ≥ 180°；
tempered glass, Optional tempered glass door with fixing blocks: tempered glass can be easily replaced if broken.
Quick-release back door design for easy installation and maintenance;
Built-in cable channels at the top, bottom and back;
Standard 19" design;
Avaiable in Wall-mounted, floor-standing;
Optional Accessories: fan, power distribution unit, tray, rack;
Supports quick wall-plate mounting;

Degreasing → Ceramization → pure water rinsing → electrophoresis or electrostatic spraying (optional);

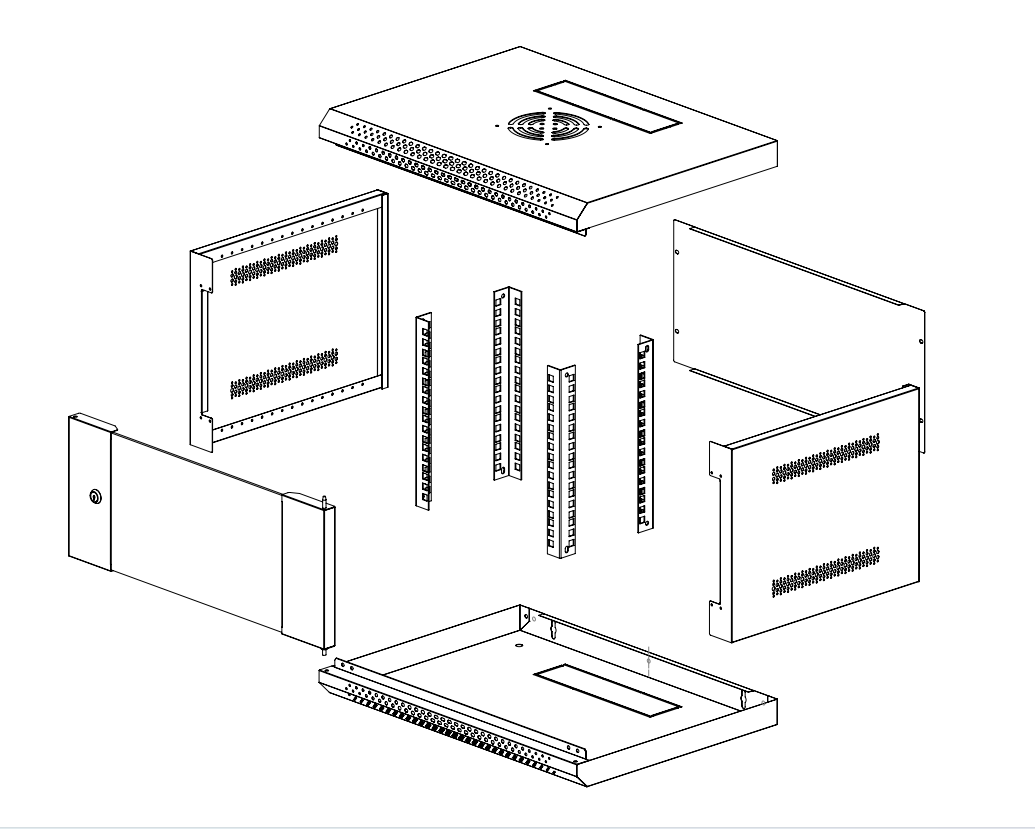

Item No.	Description	Quantity	Unit	Material	Surface Treatment	Remarks
1	Top Cover	1	Piece	SPCC Cold-Rolled Steel Sheet	Electrostatic Spraying
2	Base	1	Piece	SPCC Cold-Rolled Steel Sheet	Electrostatic Spraying	---
3	Front Door	1	Piece	SPCC Cold-Rolled Steel Plate	Electrostatic Spraying	---
4	Side Panel	2	Pieces	SPCC Cold-Rolled Steel Sheet	Electrostatic Spraying	---
5	Back Panel	1	Piece	SPCC Cold-Rolled Steel Sheet	Electrostatic Spraying	---
6	Square Hole Strip	4	Pieces	Galvanized Sheet Metal	Galvanized Finish	---
7	Front door	Optional - Tempered glass door with cold-rolled sheet frame/ Mesh door/ iron cabinet door.				---
8	Structure	Side doors are non-openable; rear doors are removable				---
9	Packaging Method	Packaging Method：Flat-packed or fully-assembled.				---

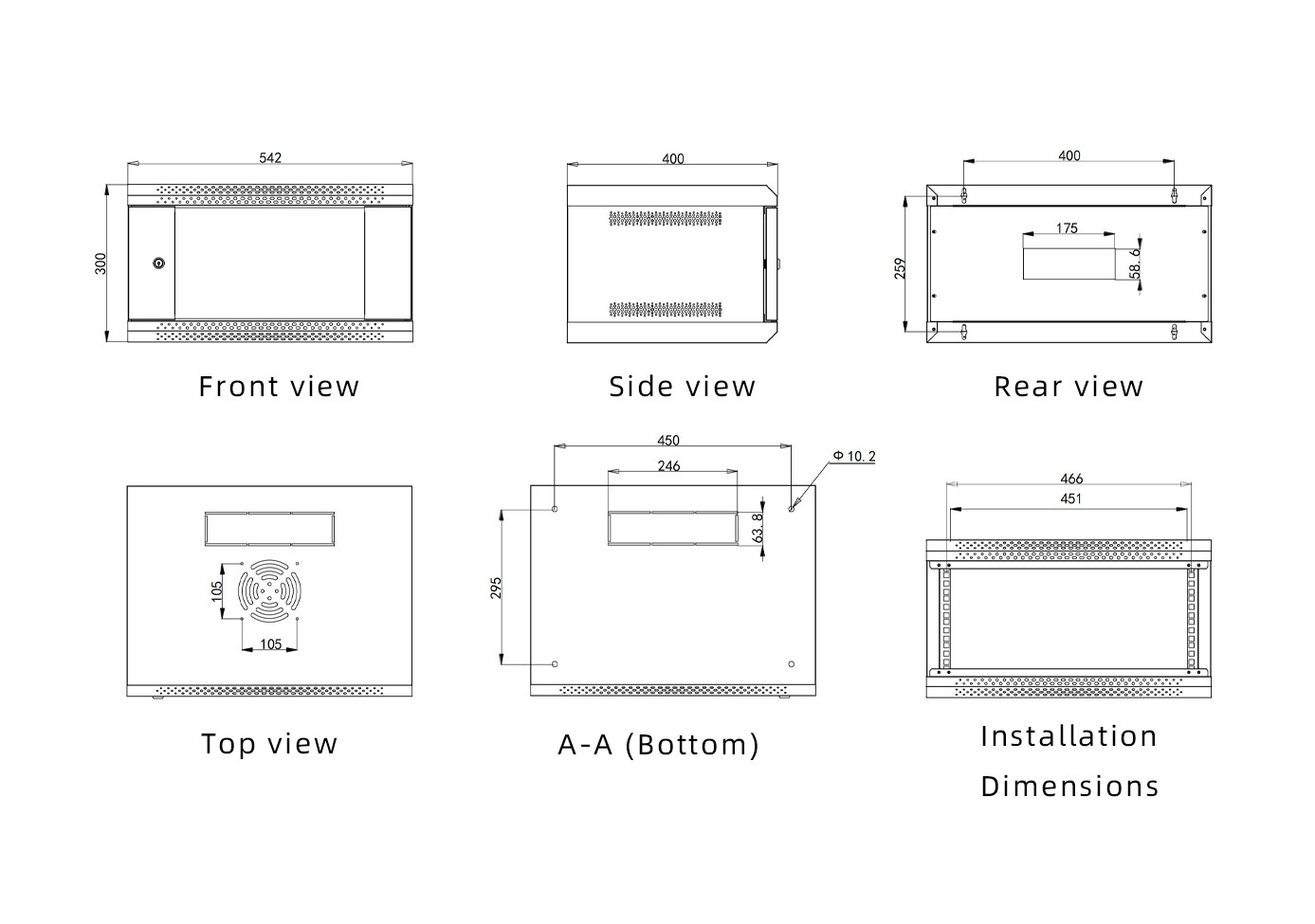

Order Code	Capacity U	Height (H) mm	Width (W) mm	Depth (D) mm	Assembled Volume (m³)	Loose Volume (m³)	Weight (kg)
W4B■-5404■□	4	240	542	400	0.06
W4B■- 5406■□	6	328			0.08
W4B■- 5409■□	9	461			0.11
W4B■- 5412■□	12	595			0.14
W4B	W4B	W4B	W4B	RAL9004	RAL7035	Optional Accessories: fan, power distribution unit, tray, rack, grounding wire;
Adhesive Door	Circular Door	Mesh Door	Iron Door	Black	Gray-white
■	■	■	■	■	□
